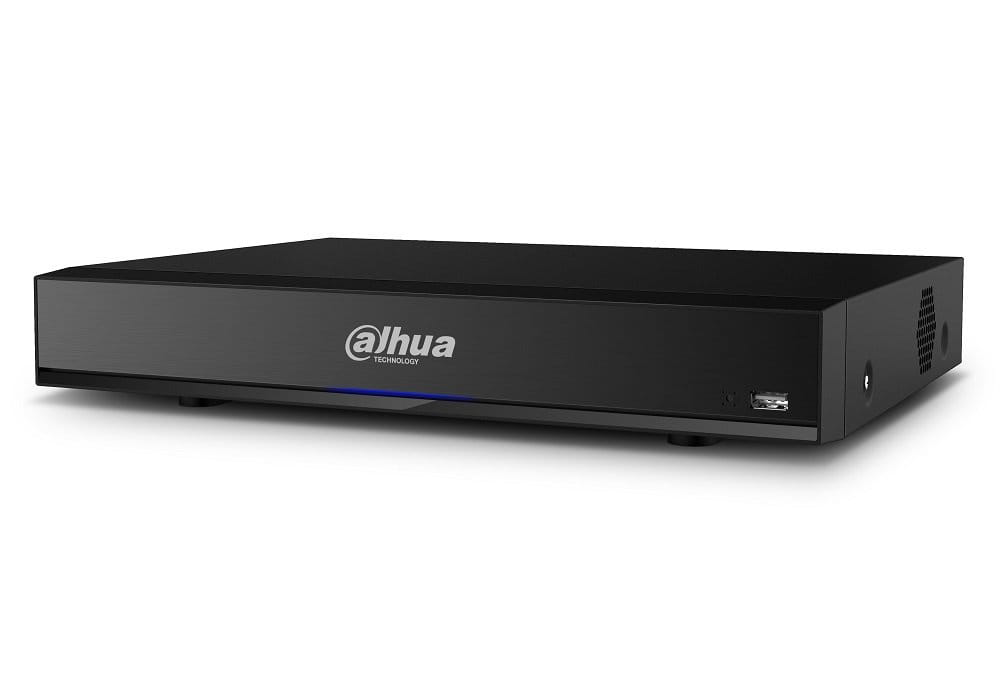

XVR7816S-4KL-X

Dostępność: 0
Cena: 4 479,00 zł 4479.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: XVR7816S-4KL-X

Opis

Rejestrator hybrydowy z serii XVR o przepustowości 128 Mb/s, kompresja H.265/H.265+, obsłguje max. 32 kanałów IP każdy do 12 Mpx, 8 HDD, wspiera IoT & POS, HDMI2 SPOT (konfigurowalne)...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Pro Series | DH-XVR7816S-4KL-X-LP

IoT Functionality
HDCVI IoT can achieve multi-dimensional surveillance by integrating
sensors with monitoring video, which not only can generate the report
for analysis but also prevent risk in advance.
POS Functionality
This funcion is mainly used in retail programs which can superimpose
POS ticket information on the video channel to preview and record.
Smart Fan Design
The smart fan can automatically turn on or turn off according to the
CPU temperature. This function can effectively reduce the fan noise
to provide a better user experience.
Spot Output
HDMI2 port is made for a secondary monitor. This allows the operator
to view one special monitor that assigned to selected cameras or
video inputs from higher security areas.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR has the ability to
detect and analyze moving objects for improved video surveillance.
The XVR provides optional standard intelligence at the edge allowing
detection of multiple object behaviors such as abandoned or missing
objects. IVS also supports Tripwire analytics, allowing the camera to
detect when a pre-determined line has been crossed.
Face Detection
It is a typical technology being used in a variety of applications that
search or identify individuals which show front cameras.
Smart Search
This function helps you get more motion detect video during a short
time through drawing a region when playback. It is very useful when
an emergency occurs.
www.dahuasecurity.com

DH-XVR7816S-4KL-X-LP
16 Channel Penta-brid 4K 2U Digital Video Recorder

Series
Pro
4K

HDMI

16CH

H.265
System Overview
With the surveillance operators pursuing to HD/UHD which further adds
the storage and transmission cost, HDCVI H.265+/H.265 has been released
to incredibly decrease the required bitrate while ensuring the video
quality in realizing high resolution surveillance such as 4MP/4K. Designed
as a collection of intelligent encoding algorithm based on H.265, H.265+
significantly improves encoding efficiency and save bandwidth/storage cost,
which fully meet the needs of users facing budget constraints who both
require quality and performance.
Besides smart codec, the series supports various advanced functions like
IoT and POS functionalities, making the whole system smarter and more
convenient which is a perfect choice for mid to large-scale business and
projects where both high reliability and flexibility are required.
Functions
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any setting.
It makes operation more friendly and convenient.

High Definition Camera Input
The XVR supports up to 8MP HD resolution (3840 x 2160) HDCVI camera
and 12MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more
cost-effective and convenient for installation.
Loop Functionality
Replacing the video distributor, this function simply provides an additional
output to use as you wish. Users can achive recording as well as video
matrix at the same time. Supports Loop video out transmission of more
than 300m for 720P and more than 200m for 1080P.
· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Supports 32 channels of IPC access, each channel up to
12MP input; Max 320Mbps incoming bandwidth
· IoT & POS functionalities
· All channels support Tripwire & Intrusion; First 4 channels
support Object Abandoned & Missing
· Supports HDMI2 for spot output

www.dahuasecurity.com
Pro Series | DH-XVR7816S-4KL-X-LP

Technical Specification
System
Main ProcessorEmbedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input16 Channel, BNC
HDCVI Camera
4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,
720P@25/30fps
AHD Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input16+16 Channels, each channel up to 12MP
Audio In/Out16 Audio In, 2 Audio Out, BNC
Two-way TalkSupport
Recording
CompressionH.265+/H.265/H.264+/H.264
Resolution4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate
Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps);
4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/
CIF(1~25/30fps)
Sub steram:960H(1~15fps);
D1/CIF(1~25/30fps)
Bit Rate32Kbps ~ 8192Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec
Audio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface 2 HDMI, 1 VGA, 1 TV
Resolution
HDMI 1:3840x2160, 2560x1440, 1920x1080, 1280x1024,
1280x720
HDMI 2 /VGA: 1920x1080, 1280x1024, 1280x720
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
OSD
Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Network
Interface2 RJ-45 Ports (1000M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP,
RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR,
NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant


Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video
Loss,Tampering and Diagnosis
Alarm input16
Relay Output6
Playback and Backup
Playback1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD8 SATA Ports, up to 10TB capacity for each disk
eSATA1 Port
Auxiliary Interface
USB4 USB Ports (2 USB 2.0 , 2 USB 3.0)
RS2321 port, for PC communication & Keyboard
RS4851 Port, for PTZ Control
RS4221 Port, for PTZ Control
Electrical
Power SupplyAC100V-240V, 50/60Hz
Power Consumption<35W (Without HDD)
Construction
Dimensions2U, 440mmx455mmx95mm (17.3" x 17.9" x 3.7")
Net Weight
(without HDD)
6.9kg (15.2lb)
Gross Weight9.8kg (21.6lb)
InstallationDesktop installation/Rack-mounted
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
UL: UL 60950-1

Pro Series | DH-XVR7816S-4KL-X-LP
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Rear Panel
DH-XVR7816S-4KL-X-LP

1
7
14
15
26

1

2

3

4

5

6

7

8

9
11

13
14

15

12

10

16-

Ordering Information
TypePart NumberDescription
16 Channel XVRDH-XVR7816S-4KL-X-LP
16 Channel Penta-brid 4K 2U
Digital Video Recorder
Dimensions (mm)

1
VIDEO IN
9
2*USB port
2
VIDEO OUT
10
eSATA port
3
LOOP OUT
11
2*HDMI port
4
AUDIO IN, BNC Connector
12
ALARM IN/OUT; RS485;
RS422;
5
AUDIO OUT, BNC Connector
13
VGA port
6
MIC IN, BNC Connector
14
RS232 port
7
MIC OUT, BNC Connector
15
Power Input
8
2*Network port
16
Power Switch
