XVR1B16-I

Dostępność: 101-500
Cena: 969,00 zł 969.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: XVR1B16-I

Opis

Rejestrator hybrydowy z serii COOPER XVR, 16-kanałowy, kompresja H.265/H.265+, obsłguje max. 18 kanałów IP każdy do 6 Mpx (maks. 64 Mb/s), obsługuje formaty wideo HDCVI/AHD/TVI/CVBS/IP, analityka SMD Plus na maks. 8 kanałach analogowych....

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

| DH-XVR1B16-I

www.dahuasecurity.com
DH-XVR1B16-I

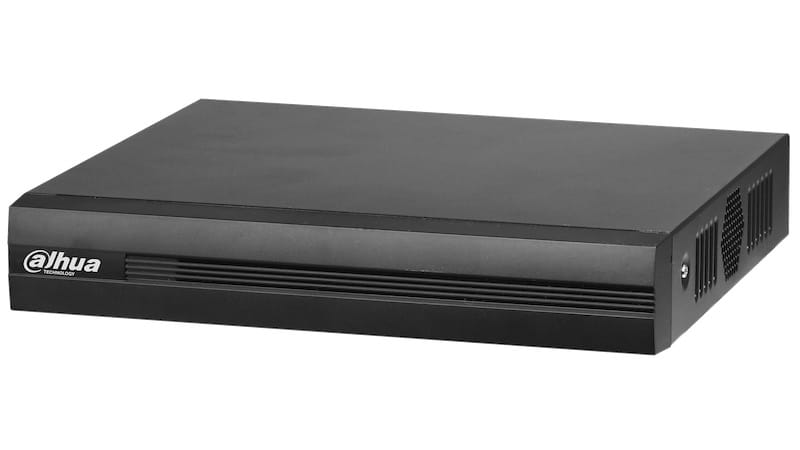

16 Channel Penta-brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder

· H.265+/H.265 dual-stream video compression
· Supports Full-channel AI-Coding
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 18 channels IP camera inputs, each channel up to 6MP; Max
64 Mbps Incoming Bandwidth
· Long transmission distance over coax cable
· Up to 8 channels video stream ( analog channel ) SMD Plus

Series Overview
Dahua Technology, a world-leading video-centric smart IoT solution and
service provider, debuted its new XVR series, Cooper Series featuring
SMD Plus to benefit customers from AI upgrade. The series are
designated to reduce false-alarm rates and human surveillance costs,
thus bringing great value to customers in search of products with
accurate human/vehicle alarm to raise the security level of various
indoor and outdoor facilities.
Functions
SMD Plus
SMD Plus, referred to as Smart Motion Detection Plus, which is an
upgrading version of SMD that greatly improves the alarm accuracy by
loading deep-learning algorithm. It analyzes person and vehicle shapes
based on motion detection and send alarms only when person and
vehicle intrudes.
*SMD Plus takes effect when SMD or IVS&SMD is selected in AI Mode.
AI Coding
Compared with H.265, AI codec can reduce up to 50% bit rate and
storage requirements while have no loss of decoding compatibility,
providing clear human and vehicle details.

Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any
setting. It makes operation more friendly and convenient.

High Definition Camera Input
The XVR supports up to 1080P HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much
more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable
and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.

www.dahuasecurity.com

Technical Specification
System
Main ProcessorEmbedded processor
Operating System
Embedded linux
SMD Plus
Performance8 channels
AI Search
Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input16 Channel, BNC
HDCVI Camera 1080P@ 25/30 fps, 720P@ 25/30 fps
AHD Camera 1080P@ 25/30 fps, 720P@ 25/30 fps
TVI Camera 1080P@ 25/30 fps, 720P@ 25/30 fps
CVBS Camera PAL/NTSC
IP Camera Input16+2, each channel up to 6MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
Video CompressionAI Coding/H.265+/H.265/H.264+/H.264
Resolution1080N; 720P; 960H; D1; HD1; BCIF; CIF; QCIF
Record Rate
Main Stream:
the 1st channel 1080N/720P (1 fps–25/30 fps), others
1080N/720P (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/
QCIF (1 fps–25/30 fps)
Sub stream:
CIF/QCIF (1 fps–7 fps)
Video Bit Rate32 kbps–4096 kbps per channel
Record Mode
Manual; Schedule (General, Continuous); MD (Video
detection: Motion Detection, Video Loss, Tampering);
Alarm; Stop
Record Interval
1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec,
Post-record: 10 sec–300 sec
Audio CompressionG.711A; G.711U; PCM
Audio Sample Rate8 KHz, 16 bit per channel
Audio Bit Rate64 kbps per channel
Display
Interface1 HDMI; 1 VGA
Resolution1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16
OSD
Camera title; Time; Video loss; Camera lock; Motion
detection; Recording
Network
Interface1 RJ-45 Port (100 MB)
Network Function
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP;
NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP
Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users


Smart PhoneiPhone; iPad; Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot;
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File;
Previous File; Next Camera; Previous Camera; Full Screen;
Repeat; Shuffle; Backup Selection; Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA port, up to 6 TB capacity
eSATAN/A
Auxiliary Interface
USB2 USB 2.0
RS232N/A
RS485N/A
Electrical
Power SupplyDC 12V/2A
Power Consumption
(Without HDD)
< 10W
Construction
Dimensions
Compact 1U, 260 mm x 236 mm x 48 mm
(10.2" x 9.3" x 1.9")
Net Weight
(without HDD)
0.89 kg (1.96 lb)
Gross Weight1.42 kg (3.13 lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C to +45°C (+14°F to +113°F), 10%–90% (RH)
Storage Conditions-20°C to +70°C (-4°F to +158°F), 0%–90% (RH)
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS; Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130;
EN 55024
UL: UL 60950-1
| DH-XVR1B16-I


Rev 001.001

Ordering Information
TypePart NumberDescription
16 Channel
WizSense XVR
DH-XVR1B16-I
16 Channel Penta-brid 1080N/720P
Compact 1U WizSense Digital Video
Recorder
Dimensions (mm[inch])
www.dahuasecurity.com

Panels

<>

<>

<>

<>

5
6
7
4
2
3
1

8

1 2
3 4
5 6
87
Network Port
VGA Port
VIDEO IN
AUDIO OUT, RCA Connector
USB Ports
AUDIO IN, RCA Connector
HDMI Port
Power Input
© 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
| DH-XVR1B16-I
