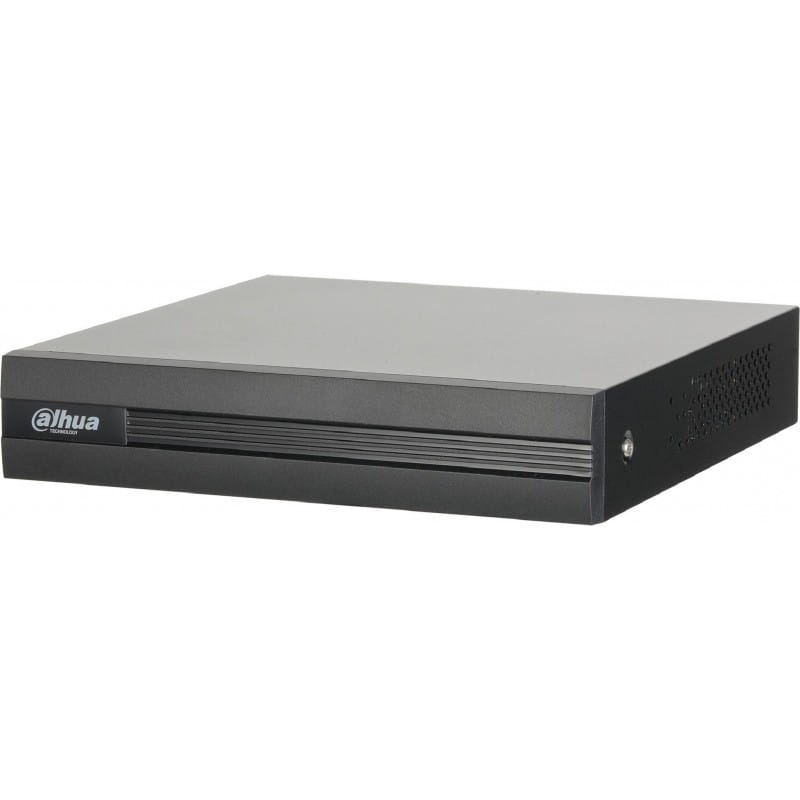

XVR1B08

Dostępność: 0
Cena: 552,00 zł 552.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: XVR1B08

Opis

Rejestrator hybrydowy z serii COOPER XVR o przepustowości 40 Mb/s, kompresja H.265/H.265+, obsłguje max. 10 kanałów IP każdy do 6 Mpx, przesył sygnału do 1200m po kablu koncentrycznym, max. 1 dysk SATA do 6TB, obsługuje formaty wideo HDCVI/AHD/TVI/CVBS/IP...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: XVR1B08-I

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Cooper Series | DH-XVR1B04/08H

www.dahuasecurity.com

DH-XVR1B04/08H
4/8 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder

Series
Cooper

Plug&Play
P2P
1080p

HDMI / VGA

4/8CH
Smart H.264+

H.265
Long Distance

1200m
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable
and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR has the ability to detect
and analyze moving objects for improved video surveillance. The XVR
provides optional standard intelligence at the edge allowing detection of
multiple object behaviors such as abandoned or missing objects. IVS also
supports Tripwire analytics, allowing the camera to detect when a pre-
determined line has been crossed.
Face Detection
It is a typical technology being used in a variety of applications for
searching or identification of individuals.
Smart Search
This function helps you get more motion detect video during a short
time through drawing a region when playback. It is very useful when an
emergency occurs.
· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 6/12 channels IP camera inputs, each channel up to 6MP;
Max 24/48Mbps incoming bandwidth
· Long transmission distance over coax cable
· Supports 1 SATA HDD, up to 6TB
· Smart Search and Intelligent Video System
System Overview
Dahua, as a technology leader, is always the first ever developed the
shining new technology in the security industry ,and today we present
Cooper Series XVR. Designed as a full compatibility product, XVR is able
to provide end user the simplicity of analog system, namely lower system
cost, simple installation and use of existing cable. And with the adoption
of Smart H.265+/H.265, the series improves encoding efficiency, saving on
bandwidth/storage costs. It is ideal for a wide range of civil applications such
as retail store, home protection and so on.
Featuring high performance with attractive costs, the Cooper Series offers a
great solution for users facing budget constraints who both require quality
and performance.
Functions
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.
HDCVI/AHD/TVI/CVBS/IP Auto-detect
The XVR can auto recognize the signal of front-camera without any setting. It
makes operation more friendly and convenient.

High Definition Camera Input
The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more
cost-effective and convenient for installation.


www.dahuasecurity.com
Cooper Series | DH-XVR1B04/08H

Technical Specification
System
Main ProcessorEmbedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input4/8 Channel, BNC
HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input4+2/8+4CH, each channel up to 6MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
Video CompressionH.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main Stream:
4CH: the 1st channel 5M-N(1~10fps);
8CH: the 1st & 2nd channels 5M-N(1~10fps);
other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub stream:
CIF/QCIF (1~15fps)
Video Bit Rate32Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec
Audio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface1 HDMI ,1 VGA
Resolution1920x1080, 1280x1024, 1280x720
Multi-screen Display
When IP extension mode not enabled:
4CH: 1/4
8CH: 1/4/8/9
When IP extension mode enabled:
4CH: 1/4/6
8CH: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Network
Interface1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP,
DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search
(Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant


Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback
4CH: 1/4
8CH: 1/4/8
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA Port, up to 6TB capacity
eSATAN/A
Auxiliary Interface
USB2 USB 2.0
RS232N/A
RS485N/A
Electrical
Power SupplyDC12V/1.5A
Power Consumption
(Without HDD)
<10W
Construction
DimensionsCooper 1U, 197mmx192mmx41mm (7.8“x7.6”x1.6“)
Net Weight
(without HDD)
0.54kg (1.19lb)
Gross Weight1kg (2.2lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130,
EN 55024
UL: UL 60950-1

Cooper Series | DH-XVR1B04/08H
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Ordering Information
TypePart NumberDescription
4/8 Channel XVR
DH-XVR1B04H
4 Channel Penta-brid 4M-N/1080P Cooper
1U Digital Video Recorder
DH-XVR1B08H
8 Channel Penta-brid 4M-N/720P Cooper 1U
Digital Video Recorder
Dimensions(mm)
www.dahuasecurity.com

DH-XVR1B04H
1
VIDEO IN
5
HDMI Interface
2
AUDIO IN, RCA Connector
6
USB Interface
3
AUDIO OUT, RCA Connector
7
Network Interface
4
VGA Interface
8
DC12V Power Input
DH-XVR1B08H

1
2
3
4
5
7
8
6

1 2
3
4
5 7 86

Rear Panel
