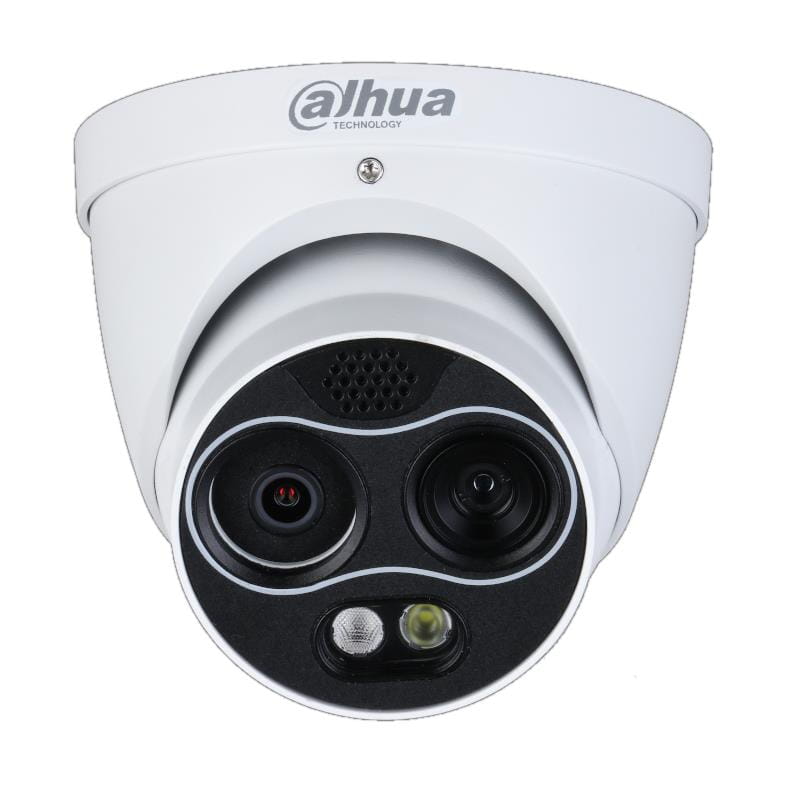

TPC-DF1241-D3F4

Kamera IP termowizyjna z serii THERMO, Rozdzielczość termowizji: 256x192, 3,5 mm, rozdzielczość widzialna 4 Mpx, obiektyw wizyjny 4mm, karta micro SD (max. 256 MB), audio 1we/1wy, alarm 1we/1wy, detekcja ognia, palenia, dzwonienia, osób i pojazdów, AI: perymetryka (przekroczenie linii i intruz w strefie)...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-TPC-DF1241
WizSense Thermal Network Eyeball Camera

· VOx uncooled thermal sensor technology
· Athermalized lens (thermal camera), focus-free
· 1/2.7'' 4Megapixel progressive scan CMOS
· Support ROI, motion detection, color palettes
· Smoking and call behaviour detection available
· Support fire detection & alarm
· Built-in 1/1 alarm in/out
· Micro SD memory, IP67, PoE
· Smart linkage with strobe light & audio
· Dual image fusion (visible and thermal images)
System Overview
Featuring dual lens, fixed camera, this series provides an
all-in-one solution for capturing video surveillance for indoor and
outdoor applications. Together with Thermal and Visible Technology,
the camera is the perfect solution for dark, small area monitoring
applications. The series combines one thermal camera for monitoring
in total darkness and one visible camera with Smart IR for confirming
details.

| DH-TPC-DF1241

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
Functions
Uncooled Vox Technology
Dahua thermal cameras use uncooled Vox sensor technology . Because
of small size and better performance, it’s cost-effective solution for
thermal security.
High Sensitivity
High thermal sensitivity (<50mK) makes cameras capture more image
details and temperature difference information.
Fire Detection & Alarm
With built-in Fire detect function, the camera has the ability to detect
fire in a long distance. Thermal camera is sensitive to temperature, so
the accuracy of fire detection will be higher than visible camera.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the camera has the ability to
detect and analyze moving objects for improved video surveillance. The
camera provides optional standard intelligence at the edge allowing
detection of multiple object behaviors such as motion detection. IVS
also supports tripwire analytics, allowing the camera to detect when a
pre-determined line has been crossed.
Smoking Detection
Dahua thermal camera can provide a real-time monitoring, in the use of
AI technology, to automatically detect people’s smoking behavior and
provide intelligent voice and light warning (Loudspeaker and white light,
etc.) in an effort to dissuade or correct, and avoid potential risk and loss.
Environmental
With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the
camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP67 rating
makes it suitable for demanding outdoor applications.
Protection
Supporting ±20% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides protectection against the camera and its structure from
the effects of lightning.

www.dahuasecurity.com

Technical Specification
Thermal
Detector TypeVanadium Oxide Uncooled Focal Plane Detector
Effective Pixels
256 x 192
Pixel Pitch12μm
Spectral Range8μm–14μm
Thermal Sensitivity (NETD)<50mK (@f/1.0,25Hz,300K)
Focal Length
2 mm3.5 mm7 mm
Field of ViewH:87.8°, V: 63.8°H: 50.6°, V: 37.8°H: 24°, V: 18°
Close Focus Distance0.2 m0.5 m1.0 m
Effective Distance
Human (1.8 m x 0.5 m)
D: 83 m (272 ft)
R: 21 m (69 ft)
I: 11 m (36 ft)
D: 146 m (479 ft)
R: 38 m (125 ft)
I: 19 m (622 ft)
D: 292 m (958 ft)
R: 75 m (246 ft)
I: 38 m (125 ft)
Effective Distance
Vehicle (4.0 m x 1.4 m)
D: 222 m (728 ft)
R: 55 m (80 ft)
I: 27 m (89 ft)
D: 389 m (1276 ft)
R: 97 m (318 ft)
I: 49 m (161 ft)
D: 778 m (2552 ft)
R: 194 m (636 ft)
I: 97 m (318 ft)
ApertureF1.0
Digital Detail
Enhancement (DDE)
Yes
Digital Zoom 16 x
AGCAuto; Manual
Noise Reduction2D NR; 3D NR
Image Flip90°; 180°; 270°
Color Palettes
18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/
Globow/Iconbow1/Iconbow2 .etc)
Fusion Mode3 (Warm color; cool color; Ironred)
Visible
Image Sensor1/2.7'' CMOS
Effective Pixels2336 x 1752
Max. Resolution4MP
Electronic Shutter Speed1/30000s–1s
Min. Illumination
Color: 0.005 Lux@F1.6
Black & white: 0.00051 Lux@F1.6
0 Lux (IR on)
IR Illumination Distance≥30 m (98.43 ft)
IR Illuminator On/Off
Control
Auto; Manual
Focal Length2 mm4 mm8 mm
ApertureF2.1F2.0F2.0
Field of View
H: 94°
V: 72°
D: 116°
H: 84°
V: 45°
D: 99°
H: 40°
V: 22°
D: 46°
Focus ModeFixed
Close Focus Distance0.2 m (0.66 ft)
Day/NightAuto (ICR); Color/B/W
BLCYes

WDRDWDR
HLCYes
White Balance
Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/
Natural
AGCAuto; Manual
Noise Reduction2D NR; 3D NR
S/N Ratio≥ 55 dB
Region of Interest (RoI)Yes
Image Flip90°; 180°; 270°
Exposure CompensationYes
Intelligence
General IntelligenceTripwire, Intrusion
Advanced Intelligence
Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification
Smoking Detection
Call Detection
Video and Audio
Video CompressionH.265/H.264M/H.264H/H.264B/MJEPG
Resolution
Thermal:
Main Stream: 1280 x 960 (1.3M) /XVGA (1024 x 768) /
VGA (640 x 480) /256 x 192, 1280 x 960 by default
Sub Stream: VGA (640 x 480) /256 x 192, 256 x 192 by
default
Visual:
Main Stream: 2336 x 1752/1080P (1920 x 1080) /720P
(1280 x 720) /D1 (704 x 576), 2336 x 1752 by default
Sub Stream: 720P (1280 x 720)/D1 (704 x 576) /CIF (352
x 288), 352 x 288 by default
Frame Rate
Thermal
50Hz: (main stream) 1fps–25fps adjustable, 25fps by
default; (sub stream) 1fps–25fps adjustable, 15fps by
default
60Hz: (main stream) 1fps–30fps adjustable, 30fps by
default; (sub stream) 1fps–30fps adjustable, 15fps by
default
Visual
50Hz: (main stream) 1fps–25fps adjustable, 25fps by
default; (sub stream) 1fps–25fps adjustable, 15fps by
default
60Hz: (main stream) 1fps–30fps adjustable, 30fps by
default; (sub stream) 1fps–30fps adjustable, 15fps by
default
Audio CompressionG.711a; G.711mu; AAC; PCM
Network
Protocol
HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;
UPnP; NTP
Edge StorageMicro SD card (256G)
InteroperabilityONVIF; CGI
Browser
IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier
User/Host 10
Security
Authorized username and password; attached MAC
address; encrypted HTTPS; IEEE 802.1x; controlled
network access
| DH-TPC-DF1241


Ordering Information
TypePart NumberDescription
Thermal
Camera
DH-TPC-DF1241P-D2F2
Thermal: 256 x 192 2 mm lens
Visible: 4MP 2 mm lens
DH-TPC-DF1241N-D2F2
DH-TPC-DF1241P-D3F4
Thermal: 256 x 192 3.5 mm lens
Visible: 4MP 4 mm lens
DH-TPC-DF1241N-D3F4
DH-TPC-DF1241P-D7F8
Thermal: 256 x 192 7 mm lens
Visible: 4MP 8 mm lens
DH-TPC-DF1241N-D7F8
Accessories
PFB203WWall-mount bracket
PFA106 (Optional)Adapter plate
PFB220C (Optional)Hang-mount bracket

Dimensions (mm[inch])

Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com

Accessories
PFB203W
Wall-mount bracket
PFB220C
Hang-mount bracket
PFA106
Adapter plate

Certification
Certifications
CE: EN55032:2015; EN61000-3-2:2014
FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
Ports
Ethernet1 10M/100M Ethernet port (RJ-45)
Audio Input1
Audio Output1
Alarm Input1
Alarm Output1
RS-4851 pair
Power
Power Supply12V±20% DC/POE
Power Consumption
Basic: <6.5W (LED off)
Max: <13W (LED on,heater on)
Environmet
Operating Temperature -30°C to +60°C (86°F to 140°F)
Operating Humidity≤95%
Ingress Protection
IP67, anti-surge 6KV, anti-elctrostatic 6KV (touched by
objects), anti-elctrostatic 8KV (air)
Structure
Dimensions122.5 mm x 122.5 mm x 107 mm (4.82" x 4.82" x 4.21")
Packaging Dimensions 155 mm x 155 mm x 135 mm (6.10" x 6.10" x 5.31)
Net Weight≤0.85 kg (1.87 lb)
Gross Weight≤1 Kg (2.20 lb)

Junction MountWall Mount
PFB203W
PFB220C+PFA106 —

Ceiling Mount

| DH-TPC-DF1241
