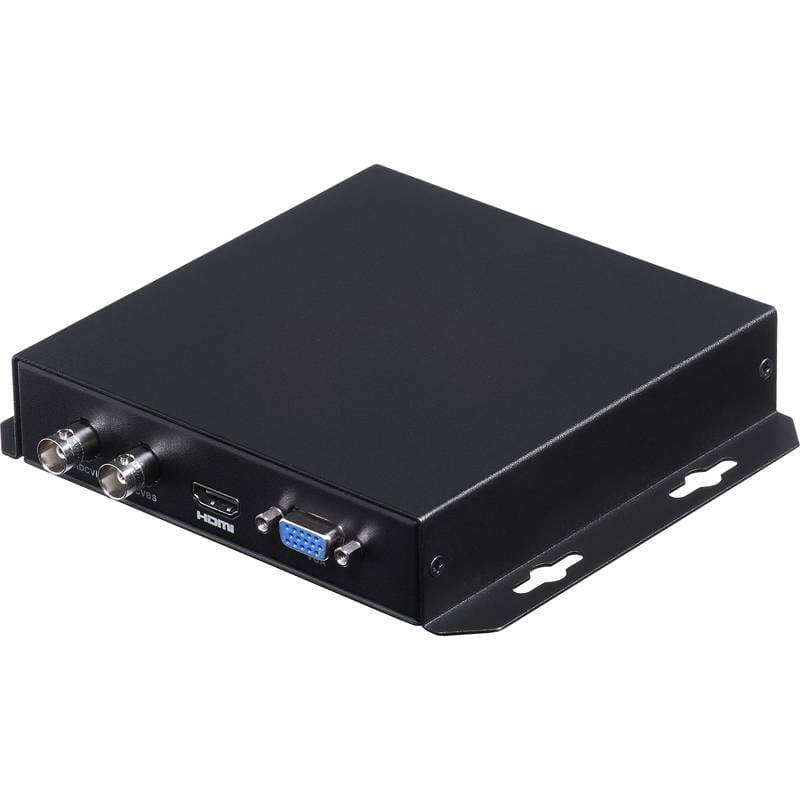

TP2105
Opis
Konwerter CVI+RS / CVI+VGA+HDMI Wejście: 1xBNC (HDCVI) Wyjście: xBNC (HDCVI), 1xBNC (CVBS) , 1xHDMI, 1xVGA Zasilanie: DC 12 V 1A Wymiary: 162×136.4×30 mm Waga: 0.2 Kg...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DH-TP2105
www.dahuasecurity.com
Features
· Self-adaptive output HDCVI, HDMI, VGA, CVBS signal
· Lossless real time non-compression transmission
· Support 2 dial switches and indicate 4 Baud rate: 2400b/s,
4800b/s, 9600b/s and 115200b/s
· Fully enclosed dustproof design
DH-TP2105
HDCVI Video Converter
Technical Specification
Model DH-TP2105
Physical Port
Interface
1*RS485
Input: 1*HDCVI (BNC)
Output: 1*HDCVI (BNC), 1*CVBS (BNC), 1*HDMI,
1*VGA
Dial Switch
2 dial switch indicate 4 Baud rates: 2400b/s,
4800b/s, 9600b/s, 115200b/s
Other
Input Transmission Distance1080p/720p: 75-5 coaxial support 100m
HDCVI Output Transmission
Distance
1080p/720p: 75-5 coaxial support 100m
IndicatorVideo , power , data indicator
PowerDC12V 1A
Power Consumption≤8W
Working Temperature-10ºC ~55ºC
Humidity10%~90%
Weight200g
Dimension162mmx136.4mmx30mm
InstallationWall mount
Dimensions (mm)
Application
