TAM1GT1GT-30
Opis
Zasilacz PoE+ 1*10/100/1000 Base-T 1810/100/1000 Base-T (zasilanie PoE) Wymiary 132,3x60x33 mm Zasilanie AC 100 - 240 V...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
TAM1GT1GT-30
www.dahuasecurity.com
Features
· Supports IEEE802.3af, IEEE802.3at standard
· Conform IEEE802.3, IEEE802.3u and IEEE802.3ab standards
· Wide temperature design: -10°C~55°C
TAM1GT1GT-30
PoE+ Midspan
Technical Specification
ModelTAM1GT1GT-30
Ethernet Port
1*10/100/1000 Base-T
1*10/100/1000 Base-T( PoE power supply)
PoE Power ConsumptionPower output≤30W
PoE ProtocolIEEE802.3af, IEEE802.3at
LED Indicator
PSE: Indicates the device is delivering power to the
PD.(Green)
PWR: Indicates the device is working properly.
(Green)
Application Humidity10%~90%
PowerAC100~240V 50/60Hz
Working Temperature-10°C~55°C
Weight 250g
Dimension(WxDxH)132.3mmx60mmx33mm

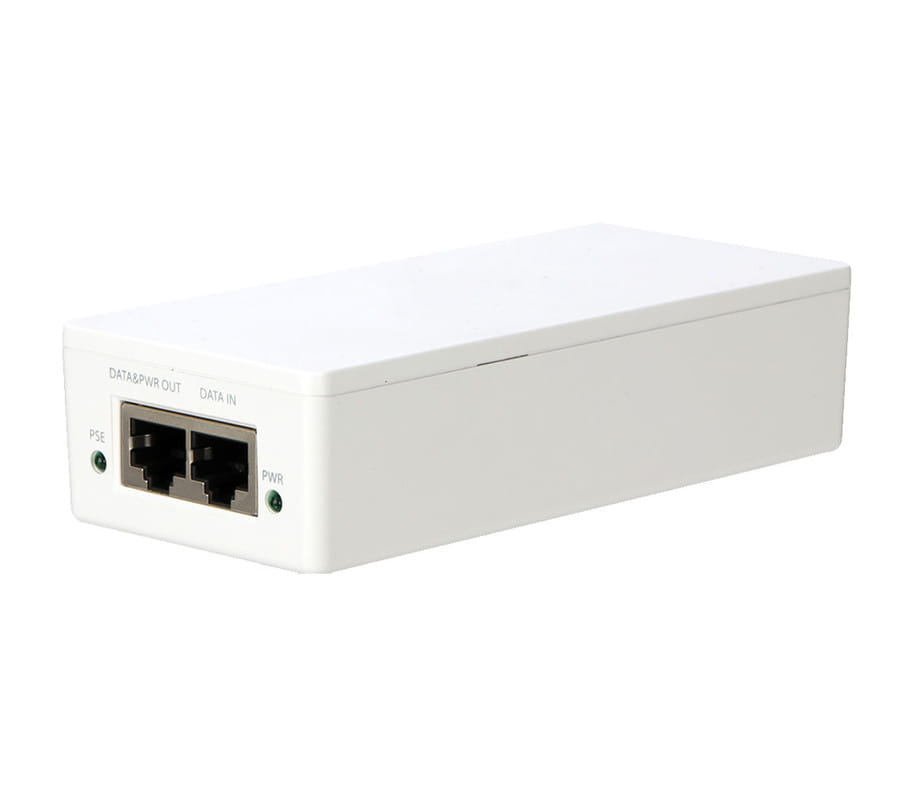

Product Overview
TAM1GT1GT-30 is designed to work under extreme environments,
such as wide temperature range and lightning environment. The
TAM1GT1GT-30 is single-port 802.3at PoE+ midspan with internal power
supply in compact housing. Carrying both Ethernet data and power, the
device helps users to utilize just one Ethernet cable to easily install and
deploy IP camera, wireless AP or VoIP phone.
Application Scenario
Dimension(mm)
