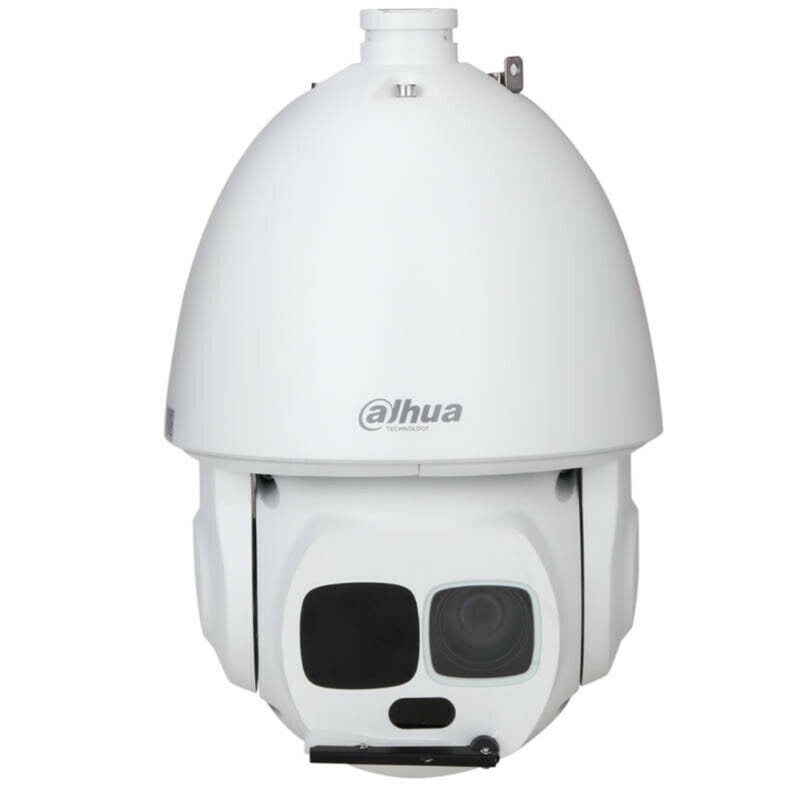

SD6AL445XA-HNR

Kamera IP obrotowa PTZ z serii PTZ AI, 1/2,8" 4 Mpx CMOS, 45x zoom optyczny, obiektyw 3,95-177,7 mm, IR 550 m, prędkość obrotu 200°/s, IP67, -40 ~ 70°C...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Pro AI Series | DH-SD6AL445XA-HNR

www.dahuasecurity.com
DH-SD6AL445XA-HNR
4MP 45x Starlight Laser PTZ AI Network Camera

AI series products adopt the most advanced AI technologies, includ-
ing deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics,
etc. The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and more devices. Beyond seeing the
world, the power of AI allows devices to perceive the environment and
understand the world in a better way.
System Overview
Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-
mance, this camera provides an all-in-one solution for capturing long
distance video surveillance for outdoor applications. Together with
infrared illumination and Starlight Technology, the camera is the perfect
solution for dark, lowlight applications. The series combines a day/night
mechanical IR cut filter for the highest image quality in variable lighting
conditions during the day, and True WDR for applications with direct
sunlight or glare.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Video Metadata
Support human, motor vehicle and non-motor vehicle image capture.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition
for the targets. Improving alarm accuracy.
Face Detection
6 attributes and 8 expressions: Gender, age, glasses, expressions (anger,
sadness, disgust, fear, surprise, calm, happiness and confusion), mask,
beard; Face matting setting: face, single inch photo; Three snapshot
methods: real-time snapshot, priority snapshot, quality priority.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
PFA+ Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming and
shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
SMD
With Deep-Learning Algorithm, Dahua SMD filters the motion detection
alarm triggered by non-concerned target and recognizes human and
vehicle effectively, sending alarms when human and vehicles intrude.
Ingress Protection
IP67; TVS 8000V lightning proof; Surge protection.
· 1/2.8" 4Megapixel CMOS
· Powerful 45x optical zoom
· Starlight technology
· Max. 50/60 fps@1080P
· Deep-learning-based auto tracking and perimeter protection
· Support face detection
· Support Hi-PoE
· SMD
· IP67

H.265
0.005Lux
IP67
Hi-PoE


Pro AI Series | DH-SD6AL445XA-HNR

Technical Specification
Camera
Image Sensor
1/2.8" CMOS
Effective Pixels
4MP
Max. Resolution
2560 (H) x 1440 (V)
ROM
4GB
RAM
1GB
Electronic Shutter Speed
1/1 s–1/30000 s
Scanning System
Progressive
Min. Illumination
Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux (IR light on)
IR Distance
550 m (1804.46 ft)
IR On/Off Control
Zoom Prio/Manual/SmartIR/Off
IR LEDs Number
2 IR lights
1 laser
Wiper
Support
Lens
Focal Length3.95 mm–177.7 mm (0.15"–7.00")
Max. ApertureF1.6–F4.9
Field of ViewH: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2°
Optical Zoom45x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.01 m–3 m (0.03 ft–9.84 ft)
Iris ControlAuto
DORI Distance
DetectObserveRecognizeIdentify
3554 m
(11660.10 ft)
1421.6 m
(4664.04 ft)
710.8 m
(2332.02 ft)
355.4 m
(1166.01 ft)
PTZ
Pan/Tilt Range
Pan: 0°–360° endless
Tilt: –20°–+90°, auto flip 180°
Manual Control Speed
Pan: 0.1°–200°/s
Tilt: 0.1°–120°/s
Preset SpeedPan: 240°/s; Tilt: 200°/s
Presets300
Tour8 (up to 32 presets per tour)
Pattern5
Scanning5
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D (auto recognition)

www.dahuasecurity.com

Artificial Intelligence
Video Metadata
Support detection of human bodies, motor vehicles
and non-motor vehicles; support optimization; support
taking snapshots; support uploading high-quality
motor vehicle snapshots.
Perimeter Protection
Tripwire, intrusion, abandoned object and
missing object. Support human and vehicle alarm
classification, and linkage tracking.
Face Detection
Support face detection; support optimization; support
taking snapshots; support uploading high-quality face
snapshots; support attributes extraction: 6 attributes
and 8 expressions.
SMDSupport
Video
Compression
H.265; H.264B; H.264M; H.264H; MJPEG; MPEG4;
H.265+; H.264+; MJPEG (sub stream)
Streaming Capability3 streams
Resolution
4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x
1080); 720P (1280 x 960); D1 (704 x 576/704 x 480);
CIF (352 x 288/352 x 240)
Frame Rate
Main stream: 4M/3M (1–25/30 fps), 1080P/1.3M/720P
(1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080P (1–25/30 fps), 720P (1–25/30 fps)
Bit Rate ControlVariable/Constant
Bit Rate
Main stream with default resolution:
H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps
Day/NightAuto (ICR)/Color/B/W
BLC Support
WDR120dB
HLC Support
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
Natural light/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of Interest (RoI)Support
Image StabilizationElectronic
DefogDigital
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas, and up to 8 areas in the same view
Audio
Compression
G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1;
G.729; G.723
Network
EthernetRJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;
UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP;
RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Accessories

Pro AI Series | DH-SD6AL445XA-HNR

www.dahuasecurity.com

Interoperability ONVIF (Profile S/Profile G); CGI
Streaming MethodUnicast/Multicast
User/Host 19
Edge StorageFTP; Micro SD card (256G); P2P
Browser
IE7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari
Management SoftwareSmart PSS; DSS; DMSS; Easy4ip; IVSS
Mobile PhoneIOS; Android
Certification
Certifications
CE: EN62368-1; EN55032; EN61000-3-2; EN61000-3-3;
EN55024; EN55035; EN50130-4
FCC: 47 CFR FCC Part15, SubpartB, ClassA; ANSI C63.4:
2014
Port
RS-4851 (Baud rate range: 1200 bps–115200 bps)
Audio Input1
Audio Output1
Alarm I/O7/2
Power
Power SupplyDC36V/2.23A; HI-PoE
Power Consumption
Basic: 20W
Max.: 36W (IR light and PTZ on at minimum voltage)
Environment
Operating Temperature –40°C ~ 70°C (-40°F to 158°F)
Operating Humidity≤95%
ProtectionIP67; TVS 8000V lightning proof; Surge protection
Structure
CasingMetal
Dimensions382 mm x Φ240 mm (15.04" x Φ9.45")
Net Weight6.8 kg (14.99 lb)
Gross Weight9.2 kg (20.28 lb)

Included:

PFB303W
Wall Mount
PFA111
Mount Adapter
Optional:

PFA140
Power Box
PFB300C
Ceiling Mount
PFA120
Junction Box

PFA150
Pole Mount
PFA151
Corner Mount
PFB303S
Parapet Mount

Ordering Information
TypeModelDescription
4MP PTZ
Camera
DH-SD6AL445XA-HNR
4MP 45x Starlight Laser IR PTZ AI Network
Camera, WDR, PAL
DH-SD6AL445XAN-HNR
4MP 45x Starlight Laser IR PTZ AI Network
Camera, WDR, NTSC
SD6AL445XA-HNR
4MP 45x Starlight Laser IR PTZ AI Network
Camera, WDR, PAL
SD6AL445XAN-HNR
4MP 45x Starlight Laser IR PTZ AI Network
Camera, WDR, NTSC
Accessories
PFB303WWall Mount
PFA111Mount Adapter
DC36V/2.23APower Adapter
PFA140Power Box
PFB300CCeiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303SParapet Mount

AC24V/3A
Power Adapter

Pro AI Series | DH-SD6AL445XA-HNR

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])
