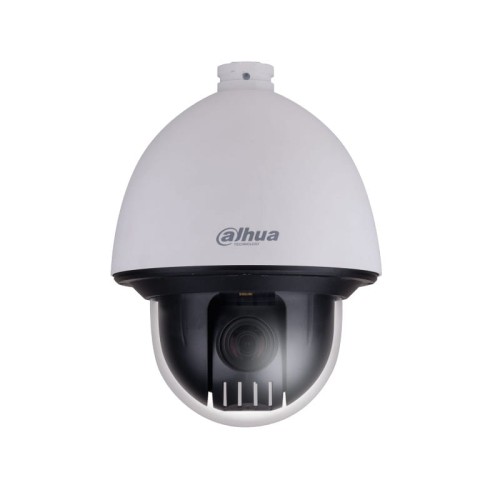

SD60430U-HNI

Kamera IP obrotowa PTZ z serii PTZ PRO, 1/3" 4 Mpx CMOS, 30x zoom optyczny, obiektyw 4,5-135 mm, 120 dB WDR, zakres obrotu 0 ~ 360°, max. prędkość: 600°/s, -40 ~ 70°C temp. pracy, IP67, IK10...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Pro Series | DH-SD60430U-HNI

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, the camera can provide large monitoring range and great
detail. It is equipped with quick and smooth control, high quality image
and good protection, which make it can meet most of the requirements
of video surveillance applications.
Functions
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
defined target automatically.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction
to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. The camera complies with the IK10 Vandal Resistance
impact rating. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/3” 4Megapixel CMOS
· Powerful 30x optical zoom
· H.265 Encoding
· Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
· Auto-tracking and IVS
· Support PoE+
· IP67, IK10
DH-SD60430U-HNI
4MP 30x PTZ Network Camera


www.dahuasecurity.com
Pro Series | DH-SD60430U-HNI

Technical Specification
Camera
Image Sensor 1/3” CMOS
Effective Pixels
2592(H) x 1520(V), 4 Megapixels
RAM/ROM1024M/128M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N RatioMore than 55dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Focal Length4.5mm~135mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 60° ~ 2.2°
Optical Zoom30x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
2700m(8858ft) 1080m(3543ft) 540m(1772ft) 270m(886ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s
Preset SpeedPan: 600° /s; Tilt: 500° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the speci fied period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection, IP address
conflict, Illegal Access, Storage anomaly


Auto TrackingSupport
IVSTripwire, Intrusion, Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, Heat Map
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
4M(2592x1520)/3M(2304x1296)/1080P(1920x
1080)/720P(1280x720)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/
720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 4M/1080P/1.3M/720P/D1/CIF
(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
Support
DefogSupport
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Audio
Compression
G.711a/G.711Mu/AAC/G.722 / G.726/G.729/
MPEG2-L2
Network
EthernetRJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart Phone IOS, Android

Pro Series | DH-SD60430U-HNI
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
4MP PTZ
Camera
DH-SD60430U-HNI
4MP 30x PTZ Network Camera,
WDR, PAL
DH-SD60430UN-HNI
4MP 30x PTZ Network Camera,
WDR, NTSC
SD60430U-HNI
4MP 30x PTZ Network Camera,
WDR, PAL
SD60430UN-HNI
4MP 30x PTZ Network Camera,
WDR, NTSC
Accessories
PFB303W Wall Mount
PFA111Mount Adapter
AC24V/3APower Adapter
PFA140Power Box
PFB300C Ceiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303S Parapet Mount
Accessories
Included:
PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFB303S
Parapet Mount
PFA151
Corner Mount

Optional：
PFA111
Mount Adapter

PFB303W
Wall Mount

AC24V/3A
Power Adapter

t

t

Po

PF A111 + PFB303W + PF A140

PF A111 + PFB303W + PF A151

PF A111 + PFB303W + PF A120
PF A111 + PFB300C

PF A111 + PFB303W + PF A150

t

Po

Pa ra t

PF A111+ PFB303S

Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O 1/1
Alarm I/O7/2
Electrical
Power SupplyAC24V/3A(±25%), PoE+(802.3at)
Power Consumption13W,20W (Heater on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions Φ222(mm) x 292(mm)
Net Weight3.5kg(7.72lb)
Gross Weight7.5kg(16.53lb)

Pro Series | DH-SD60430U-HNI
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Dimensions (mm)

mm
mm
mm
mm
mm
mm
mm
