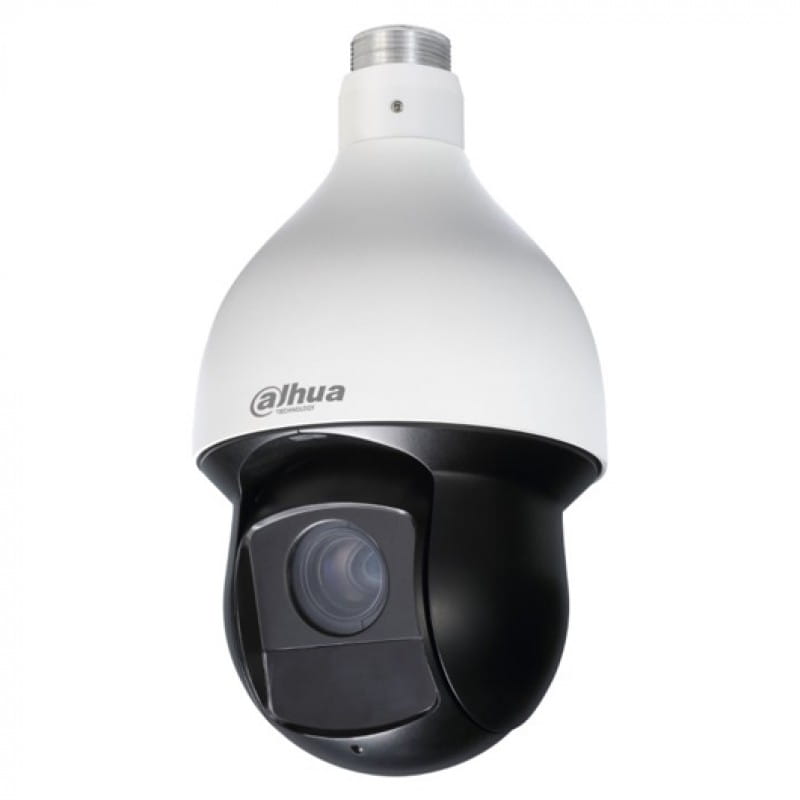

SD49225XA-HNR

Kamera IP obrotowa PTZ z serii PTZ AI, 1/2,8" 2 Mpx STARVIS™ CMOS, 25x zoom optyczny, obiektyw 4,8-120 mm, IR 100 m, prędkość obrotu 200°/s, IP66, -40 ~ 70°C...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite AI Series | DH-SD49225XA-HNR

www.dahuasecurity.com
DH-SD49225XA-HNR
2MP 25x Starlight + IR PTZ AI Network Camera

AI series products adopt the most advanced AI technologies, includ-
ing deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics,
etc. The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and more devices. Beyond seeing the
world, the power of AI allows devices to perceive the environment and
understand the world in a better way.
System Overview
Dahua PTZ AI network camera adopts advanced CNN deep learning al-
gorithms to support Perimeter Protection with high accuracy. This cam-
era possess wide monitor range, PFA algorithm that can always present
a clear, focused image while zooming. The camera has very excellent
low light performance due to adopting the latest starlight technology.
The camera is equipped with smooth control, high quality image and
good protection, which make it can meet most of the requirements of
video surveillance applications.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for 6KV lightning rating,which provides effective
protection for both the camera and its structure against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
SMD
With Deep-Learning Algorithm, Dahua SMD filters the motion detec-
tion alarm triggered by non-concerned target and recognize human and
vehicle effectively, sending alarms when human and vehicle intrudes.
· 1/2.8” 2Megapixel CMOS
· Powerful 25x optical zoom
· Starlight technology
· Max. 50/60fps@1080P
· Deep-learning-based auto tracking and perimeter protection
· Support PoE+
· IR distance up to 100m
· SMD
· IP66

PoE+
0.005Lux
IP66


Lite AI Series | DH-SD49225XA-HNR

Technical Specification
Camera
Image Sensor
1/2.8" STARVIS™ CMOS
Effective Pixels
2MP
Max. Resolution
1920 (H) x 1080 (V)
ROM
4GB
RAM
1GB
Electronic Shutter Speed
1/1 s–1/30,000 s
Scanning System
Progressive
Min. Illumination
Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux@F1.6 (IR light on)
IR Distance
100 m (328.08 ft)
IR On/Off Control
Zoom Prio/Manual/SmartIR
IR LEDs Number
6
Lens
Focal Length4.8 mm–120 mm
Max. ApertureF1.6–F4.4
Field of ViewH: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9°
Optical Zoom25x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris ControlAuto/Manual
DORI Distance
DetectObserveRecognizeIdentify
1613 m
(5291.99 ft)
646 m
(2119.42 ft)
323 m
(1059.71 ft)
161 m
(528.22 ft)
PTZ
Pan/Tilt Range
Pan: 0°–360° (endless)
Tilt: -15°–90° (auto flip 180°)
Manual Control Speed
Pan: 0.1°–200°/s
Tilt: 0.1°–120°/s
Preset Speed
Pan: 240°/s
Tilt: 200°/s
Presets300
Tour8 (up to 32 presets per tour)
Pattern Number5
Scanning Number5
Speed AdjustmentSupport
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D (auto recognition)

www.dahuasecurity.com

General Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing,
Network disconnection, IP address conflict, Illegal
Access, Storage anomaly
General IntelligenceObject Abandoned/Missing
Artificial Intelligence
Perimeter Protection
Tripwire and intrusion. Support alarm triggering by
target types (human and vehicle). Support filtering
false alarms caused by animals, rustling leaves, bright
lights, etc.
SMDSupport
Video Metadata
Support human, motor vehicle and non-motor vehicle
image capture.
Video
CompressionH.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Streaming Capability3 streams
Resolution
1080P (1920 x 1080); 1.3 M (1280 x 960); 720P (1280
x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352
x 240)
Frame Rate
Main stream: 1080P/1.3 M/720P (1–50/60fps)
Sub stream 1: D1/CIF (1–25/30fps)
Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30fps)
Bit Rate ControlVariable Bit Rate/Constant Bit Rate
Bit RateH.265/H.264: 3 kbps–20480 kbps
Day/NightAuto(ICR)/Color/B/W
BLCSupport
WDR120 dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/
Natural light/Street lamp
Gain ControlAuto/Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image StabilizationSupport
Electronic DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas, and up to 8 areas in the same view
Audio
Compression
G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2;
G.729
Network
EthernetRJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP;
IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP;
SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter;
QoS; Bonjour; 802.1x

Lite AI Series | DH-SD49225XA-HNR

Interoperability ONVIF Profile S&G; CGI
Streaming MethodUnicast/Multicast
User/Host 19
Edge StorageNAS; Local PC; Micro SD card (256G)
Browser
IE7 and newer versions
Chrome 45 and newer versions
Firefox 52 and earlier versions
Safari (no version restrictions)
Management SoftwareSmart PSS; DSS; DMSS
Smart PhoneIOS/Android
Certification
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1
Port
Audio In1
Audio Out1
Alarm Port2/1
Power
Power Supply
DC 12V/3A
PoE+ (802.3at)
Power Consumption
13W
22W (IR on)
Environment
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity≤95%
Ingress ProtectionIP66; TVS 6000V lightning proof; Surge protection
Structure
CasingAluminium alloy ADC12
DimensionsΦ160 mm x 295 mm (6.30" x 11.61")
Net Weight3 kg (6.61 lb)
Gross Weight4.8kg (10.58lb)


Ordering Information
TypeModel Description
2M PTZ
Camera
DH-SD49225XA-HNR
2MP 25x Starlight IR PTZ AI Network Camera,
WDR, PAL
DH-SD49225XAN-HNR
2MP 25x Starlight IR PTZ AI Network Camera,
WDR, NTSC
SD49225XA-HNR
2MP 25x Starlight IR PTZ AI Network Camera,
WDR, PAL
SD49225XAN-HNR
2MP 25x Starlight IR PTZ AI Network Camera,
WDR, NTSC

www.dahuasecurity.com

Accessories
PFB305WWall Mount
PFA111Mount Adapter
DC12V/3APower Adapter
PFA140Power Box
PFB300CCeiling Mount
PFA120Water-proof Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303SParapet Mount
Accessories
Included:

PFB305W
Wall Mount

PFA111
Mount Adapter
DC12V/3A
Power Adapter
PFA140
Power Box

PFB300C
Ceiling Mount
PFA120
Water-proof Junction Box
PFA150
Pole Mount

PFA151
Corner Mount
PFB303S
Parapet Mount
Optional:

Lite AI Series | DH-SD49225XA-HNR

www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

φ160.0[6.30]

139.5[5.49]

295.4[11.63]

109.3[4.30]

50.0[1.97]

Dimensions (mm[inch])
