SD49225I-HC

Dostępność: 0
Cena: 2 226,00 zł 2226.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: SD49225I-HC

Opis

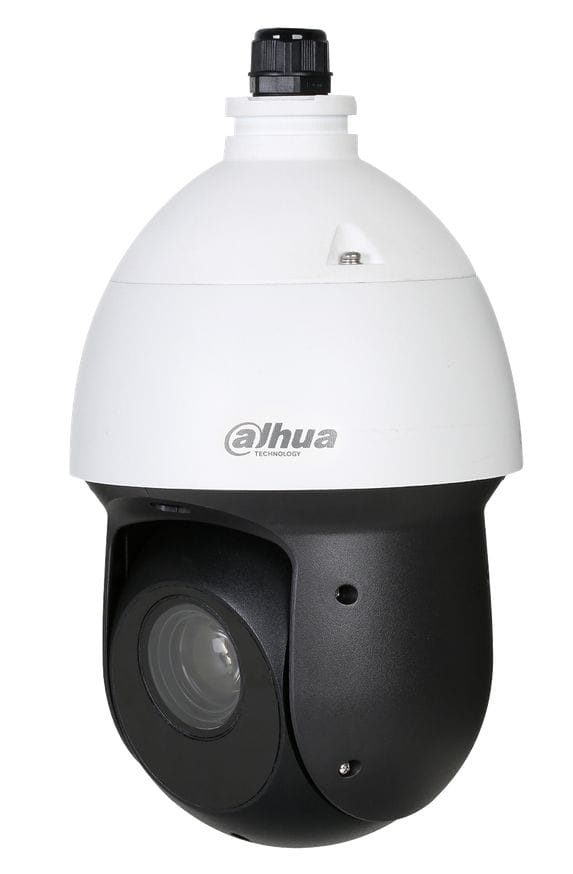

Kamera analogowa obrotowa PTZ z serii HDCVI PTZ LIGHT, 2 Mpx CMOS, 25x zoom, Max 240 °/s prędkość obrotu, 1 kan. audio we, 2/1kan. alarm we/wy, IP 66, -40~70°C...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-SD49225I-HC

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, the SD49 series PTZ camera can provide large monitoring
range and great detail. The camera delivers 1080P resolution at 25/30
fps, with 25x optical zoom, and has very excellent low light performance
due to adopting the latest starlight technology. SD49 series PTZ is
equipped with smooth control, high quality image and good protection,
which make it can meet small and medium size of video surveillance
applications.
Functions

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight Technology
Thanks to our experience and expertise in hardware and software
development , the camera is equipped with the latest image processing
algorithm, high performance hardware and high quality optical
components, which make the camera have very exellent low light
performance. In most conditions, this camera can deliver clear, bright
and low-noise color images.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, true WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Environmental
With a temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the
camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP66 rating
makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 6KV lightning rating provides protection against the camera and its
structure from the effects of lightning.
www.dahuasecurity.com
· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 25x optical zoom
· Starlight technology
· 120dB true WDR, 3D DNR
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· IR distance up to 100m
· IP66
DH-SD49225I-HC
2MP 25x Starlight IR PTZ HDCVI Camera


www.dahuasecurity.com
Lite Series | DH-SD49225I-HC

Technical Specification
Camera
Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum IlluminationColor: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N RatioMore than 55dB
IR DistanceDistance up to 100m (328ft)
IR On/Off ControlAuto/Manual
IR LEDs6
Lens
Focal Length4.8mm~120mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 62.8° ~ 2.6°
Optical Zoom25x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1613m(5259ft) 646m(2119ft) 323m(1060ft) 161m(528ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 240° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Video
Resolution1080P(1920x1080)/720P(1280x720)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)


Day/NightAuto(ICR) / Color / B/W
OSD Menu Support
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1
Audio Interface1 channel in
RS4851
Alarm I/O2/1
Electrical
Power SupplyDC 12V/3A
Power Consumption13W,20W (IR on)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection IP66
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions Φ160(mm) x 295(mm)
Net Weight3kg(6.61lb)
Gross Weight4.2kg(9.26lb)

Lite Series | DH-SD49225I-HC
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD49225I-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, PAL
DH-SD49225IN-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, NTSC
SD49225I-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, PAL
SD49225IN-HC
2MP 25x Starlight IR PTZ HDCVI
Camera, WDR, NTSC
Accessories
PFB305W Wall Mount
PFA111Mount Adapter
DC12V/3APower Supply
PFA140Power box
PFB300C Ceiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303S Parapet mount

Accessories
Dimensions (mm)
Included:
PFA111
Mount Adapter
PFB305W
Wall Mount
PFA140
Power box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFB303S
Parapet Mount
PFA151
Corner Mount

DC12V/3A
Power Supply
Optional:

t

t

PF A111 + PFB300C

PFB305W + PF A151

PFB305W + PF A120

PFB305W + PF A150

Po

Pa ra t

t

Po

PF A111+ PFB303S

PFB305W + PF A140

Dane techniczne

Zoom optyczny ± 25x
Rozmiar przetwornika 1/2.8
Zasilanie DC 12VDC
Szczelność IP66
Rozdzielczość wizyjna 2MPIX
Typ kamery PTZ, Obrotowa
Oświetlacz podczerwieni ± 100 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Zmiennoogniskowy motozoom
