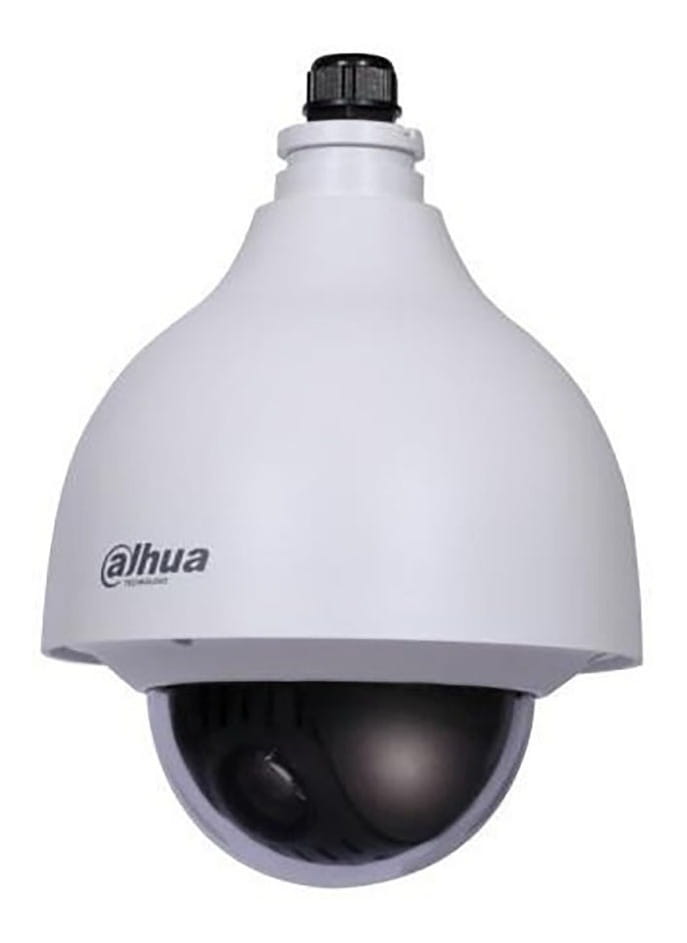

SD40212I-HC

Kamera analogowa obrotowa PTZ z serii HDCVI PTZ LIGHT, 2 Mpx STARVIS™ CMOS, 12x zoom, Starlight, WDR(120dB), Max 300°/s prędkość obrotu, 1kan. wejście audio, 2/1kan. alarm we/wy, IP66, IK10, -40~60°C...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-SD40212I-HC

www.dahuasecurity.com
· 1/2.8” 2Megapixel STARVIS™ CMOS
· Powerful 12x optical zoom
· Starlight technology
· Max. 25/30fps@1080P, 25/30/50/60fps@720P
· 120dB true WDR, 3D DNR
· IP66, IK10
DH-SD40212I-HC
2MP 12x Starlight PTZ HDCVI Camera

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, the SD40 series PTZ camera can provide large monitoring
range and great detail. The camera delivers 1080P resolution at 25/30
fps, with 12x optical zoom, and has very excellent low light performance
due to adopting the latest starlight technology. SD40 series PTZ is
equipped with quick and smooth control, high quality image and good
protection, which make it can meet most of the requirements of video
surveillance applications.
Functions

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. For applications with both bright and low lighting conditions
that change quickly, true WDR (120dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Environmental
With a temperature range of -40 °C to +60 °C (-40 °F to +140°F), the
camera is designed for extreme temperature environments. The camera
complies to an IK10 impact rating. Subjected and certified to rigorous
dust and water immersion tests, the IP66 rating makes it suitable for
demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 6KV lightning rating provides protection against the camera and its
structure from the effects of lightning.

IP66


www.dahuasecurity.com
Lite Series | DH-SD40212I-HC

Technical Specification
Camera
Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum IlluminationColor: 0.005Lux@F1.6; B/W:0.0005Lux@F1.6
S/N RatioMore than 50dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Focal Length5.3mm~64mm
Max. ApertureF1.6 ~ F3.0
Angle of ViewH: 58.2° ~ 4.8°
Optical Zoom12x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
883m(2897ft) 353m(1158ft) 177m(581ft) 88m(289ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 300° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Video
Resolution1080P(1920x1080)/720P(1280x720)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P


Video Output
1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)
Day/NightAuto(ICR) / Color / B/W
OSD Menu Support
Backlight CompensationBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface1
Audio Interface1 channel in
RS4851
Alarm I/O2/1
Electrical
Power SupplyAC24V/1.5A(±10%)
Power Consumption10W, 19W (Heater on)
Environmental
Operating Conditions-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceIK10
Construction
CasingMetal
Dimensions Φ186(mm) x 234(mm)
Net Weight2.3kg(5.07lb)
Gross Weight4.3kg(9.48lb)

Lite Series | DH-SD40212I-HC
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD40212I-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, PAL
DH-SD40212IN-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, NTSC
SD40212I-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, PAL
SD40212IN-HC
2MP 12x Starlight PTZ HDCVI
Camera, WDR, NTSC
Accessories
PFB300S Wall Mount
PFA110Mount Adapter
AC24V/1.5APower Adapter
PFA140Power Box
PFB300C Ceiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303S Parapet Mount

Accessories
Included:
PFA110
Mount Adapter

PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFB303S
Parapet Mount
PFA151
Corner Mount

AC24V/1.5A
Power Adapter
Optional：

PFB300S
Wall Mount

t

t

Po

PF A110 + PFB300S + PF A140

PF A110 + PFB300S + PF A151

PF A110 + PFB300S + PF A120
PF A110 + PFB300C

PF A110 + PFB300S + PF A150

t

Po

Pa ra t

PF A110 + PFB303S

Dimensions (mm)

mm
120mm

186mm

234mm

mm

84
mm
