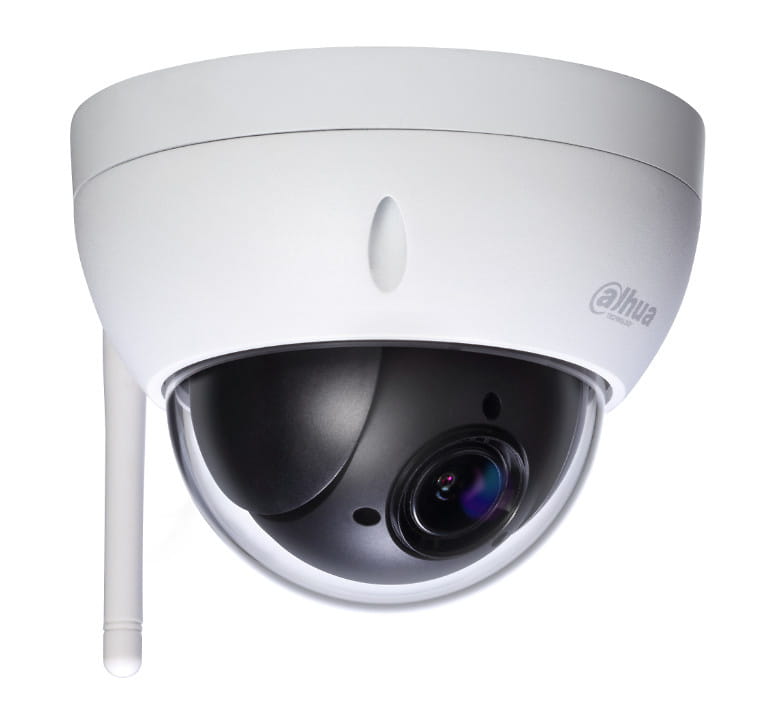

SD22204UE-GN-W

Kamera IP obrotowa PTZ z serii PTZ WI-FI, 1/2,8" 2 Mpx STARVIS™ CMOS, 4x zoom optyczny, obiektyw 2,7-11 mm, 120 dB WDR, zakres obrotu 0 ~ 355° (ograniczony), kąt widzenia 0 ~ 90°, max. prędkość: 100°/s, -30 ~ 60°C temp. pracy, IP66, IK10, WiFi...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-SD22204UE-GN-W

www.dahuasecurity.com
· 1/2.8” STARVIS™ CMOS
· Powerful 4x optical zoom
· Support Starlight
· WDR, Day/Night(ICR), Ultra DNR
· Max. 25/30fps@1080P
· Max 100°/s pan speed
· IVS
· Support Wi-Fi
· IP66, IK10
DH-SD22204UE-GN-W
2MP 4x Starlight PTZ Wi-Fi Network Camera

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, the camera provides a wide monitoring range and great
detail. The camera delivers 2MP resolution at 25/30fps. The camera is
equipped with smooth control, high quality image, and good protection,
meeting compact size demands of video surveillance applications.
Functions

Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double
the data compression ratio at the same level of video quality, or
substantially improved video quality at the same bit rate, as compared
to older video compression technologies. H.265 offers such impressive
compression by expanding the pattern comparison and difference-
coding, improving motion vector prediction and motion region merging,
and incorporating an additional filtering step called sample-adaptive
offset filtering.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -30 °C to +60 °C (-22 °F to +140 °F) with
95% humidity. The camera complies with the IK10 Vandal Resistance
impact rating. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.

0.005Lux
IP66

www.dahuasecurity.com
Lite Series | DH-SD22204UE-GN-W

Technical Specification
Camera
Image Sensor
1/2.8” STARVIS™ CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM256M/128M
Electronic Shutter Speed1/1s~1/30,000s
Scanning SystemProgressive
Minimum IlluminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Focal Length2.7mm~11mm
Max. ApertureF1.6
Angle of ViewH: 112.5° ~ 30°
Optical Zoom4x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
124.1m(407ft)49.7m(163ft)24.8m(81ft)12.4m(40ft)
PTZ
Pan/Tilt RangePan: 0° ~ 355°; Tilt: 0° ~ 90°
Manual Control SpeedPan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset SpeedPan: 100° /s; Tilt: 60° /s
Presets300
PTZ Mode8 Tour(up to 32 preset per tour)
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/Tour if there is no command in the
specified period
ProtocolDH-SD
Intelligence
Event Trigger
Motion detection, Video tampering, Network
disconnection, IP address conflict, Illegal access,
Storage anomaly
Auto TrackingN/A


IVSTripwire, Intrusion,Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265/H.264/MJPEG(Sub Stream)
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/720P(1280x720)/
D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate
Main stream: 1080P/720P/D1 (1 ~ 25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~
10240Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto,ATW,Indoor,Outdoor,Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
N/A
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Network
EthernetRJ-45 (10XBase-T/100Base-TX)
Wi-FiSupport
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Lite Series | DH-SD22204UE-GN-W
Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PTZ
Camera
DH-SD22204UE-GN-W
2MP 4x Starlight PTZ Wi-Fi
Network Camera, WDR, PAL
DH-SD22204UEN-GN-W
2MP 4x Starlight PTZ Wi-Fi
Network Camera, WDR, NTSC
SD22204UE-GN-W
2MP 4x Starlight PTZ Wi-Fi
Network Camera, WDR, PAL
SD22204UEN-GN-W
2MP 4x Starlight PTZ Wi-Fi
Network Camera, WDR, NTSC
Accessories
PFA137Mount Adapter
DC12V/2APower Adapter
PFB203W Wall Mount
PFA152-EPole Mount

Interface
Video InterfaceN/A
RS485N/A
Audio I/ON/A
Alarm I/ON/A
Electrical
Power SupplyDC 12V/1.5A
Power Consumption5.5W
Environmental
Operating Conditions-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceIK10
Construction
Casing Metal
DimensionsΦ122 (mm) x 89 (mm)
Net Weight0.52kg(1.23lb)
Gross Weight0.73kg(1.61lb)
Accessories
PFA137
Mount Adapter
PFB203W
Wall Mount
PFA152-E
Pole Mount
DC12V/2A
Power Adapter
Dimensions (mm)

Optional：

mm

mm

mm




PF A137
PFB203W
PFB203W + PF A152-E
