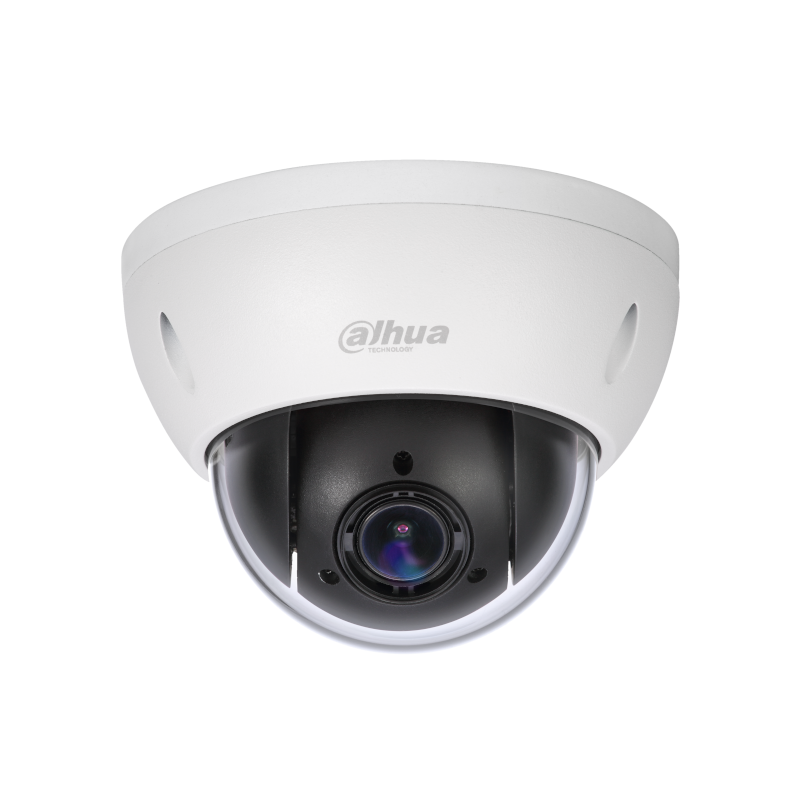

SD22204-GC-LB

Kamera IP obrotowa PTZ z serii PTZ Lite , przetwornik 1/2,8" 2 Mpx CMOS, Starlight, 4x zoom, max 25/30 kl./s@1080P, IP66, IK10, 12V DC...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-SD22204-GC-LB
2MP 4x Starlight HDCVI PTZ Camera

System Overview
Featuring with powerful optical zoom and accurate pan/tilt/zoom
performance, the SD22 series PTZ camera can provide large monitoring
range and great detail. The camera delivers 1080P resolution at 25/30
fps, with 4x optical zoom, and has very excellent low light perfor-
mance due to the latest starlight technology. SD22 series PTZ camera is
equipped with smooth control, high quality image and good protection,
which makes it meet small and medium-sized video surveillance applica-
tions.
Functions
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself an ideal choice for invest-
ment protection. HDCVI system can seamlessly upgrade the traditional
analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring network.
Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
· 1/2.8" 2Megapixel STARVIS™ CMOS
· Powerful 4x optical zoom
· Starlight technology
· 120 dB true WDR, 3D DNR
· Max. 25/30 fps@1080P, 25/30/50/60 fps@720P
· IP66, IK10

Day/Night
Starlight
WDR

0.005Lux
HDCVI Series | DH-SD22204-GC-LB
Environmental
The camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP66 rating
makes it suitable for demanding outdoor applications.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.

www.dahuasecurity.com

Pan/Tilt Range
Pan: 0°–355°
Tilt: 0°–90°
Manual Control Speed
Pan: 0.1°–100°/s
Tilt: 0.1°–60°/s
Preset SpeedPan: 100°/s; Tilt: 60°/s
Preset300
Tour8 (up to 32 presets per tour)
Speed AdjustmentSupport
Power-off Memory Support
Idle MotionPreset/Tour
Protocol
DH-SD
Pelco-P/D (auto recognition)
Video
Resolution
1080P (1920 x 1080); 720P (1280 x 720); D1 (704 x
576/704 x 480)
Frame Rate1080P (25/30 fps); 720P (25/30/50/60 fps)
CVI Product Output ModeCVI; TVI; AHD; CVBS
Day/NightSupport
HDCVI Series | DH-SD22204-GC-LB

BLC Support
WDR120 dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium
lamp/Natural/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
DefogElectronic
Digital Zoom16x
Flip0°/180°
Certification
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Port
Analog Output1 (CVBS/CVI output, BNC port)
RS4851 (baud rate range: 1200 bps–9600 bps)
Power
Power Supply12V DC/1.5A±10%
Power Consumption
5W
6W (PTZ on)
Environment
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Operating Humidity≤ 95%RH
Protection
IP66; IK10; TVS 4000V lightning proof; surge
protection; voltage transient protection
Structure
CasingMetal
DimensionsΦ122 mm x 89 mm (4.80" x 3.50")
Net Weight0.6 kg (1.32 lb)
Gross Weight0.65 kg (1.43 lb)


Technical Specification
Camera
Image Sensor
1/2.8" STARVIS™ CMOS
Pixel
2MP
Max. Resolution
1920 (H) x 1080 (V)
ROM
16 MB
RAM
256 MB
Electronic Shutter Speed
1/3 s–1/100000 s
Scanning System
Progressive
Min. Illumination
Color: 0.05 Lux@F1.6
B/W: 0.005 Lux@F1.6
Lens
Focal Length2.7 mm–11 mm
Max. ApertureF1.6–F2.7
Field of ViewH: 112.5°–30°; V: 54.2°–19.9°; D: 122.3°–40.6°
Optical Zoom4x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.5 m–1 m (1.64 ft–3.28 ft)
Iris ControlFixed
DORI Distance
DetectObserveRecognizeIdentify
120 m
(393.70 ft)
48 m
(157.48 ft)
24 m
(78.74 ft)
12 m
(39.37 ft)
PTZ

Dimensions (mm[inch])

www.dahuasecurity.com
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
HDCVI Series | DH-SD22204-GC-LB

Accessories
Optional:

DC12V/1.5A
Power Adapter

PFA120
Junction Box

PFA106
Mount Adapter
PFA151
Corner Mount Bracket

PFB305W
Wall Mount Bracket
PFB203W
Wall Mount Bracket

PFB220C
Ceiling Mount Bracket
PFA150
Pole Mount Bracket
PFA152-E
Pole Mount Bracket

Ordering Information
TypeModelDescription
2M Camera
DH-SD22204-
GC-LB
2MP 4x Starlight HDCVI PTZ Camera, WDR,PAL
DH-SD22204N-
GC-LB
2MP 4x Starlight HDCVI PTZ Camera, WDR,
NTSC
SD22204-GC-LB 2MP 4x Starlight HDCVI PTZ Camera, WDR, PAL
SD22204N-GC-LB
2MP 4x Starlight HDCVI PTZ Camera, WDR,
NTSC
Accessories
DC12V/1.5APower Adapter
PFA106Mount Adapter
PFA151Corner Mount Bracket
PFA120Junction Box
PFB305WWall Mount Bracket
PFB203WWall Mount Bracket
PFB220CCeiling Mount Bracket
PFA150Pole Mount Bracket
PFA152-EPole Mount Bracket
