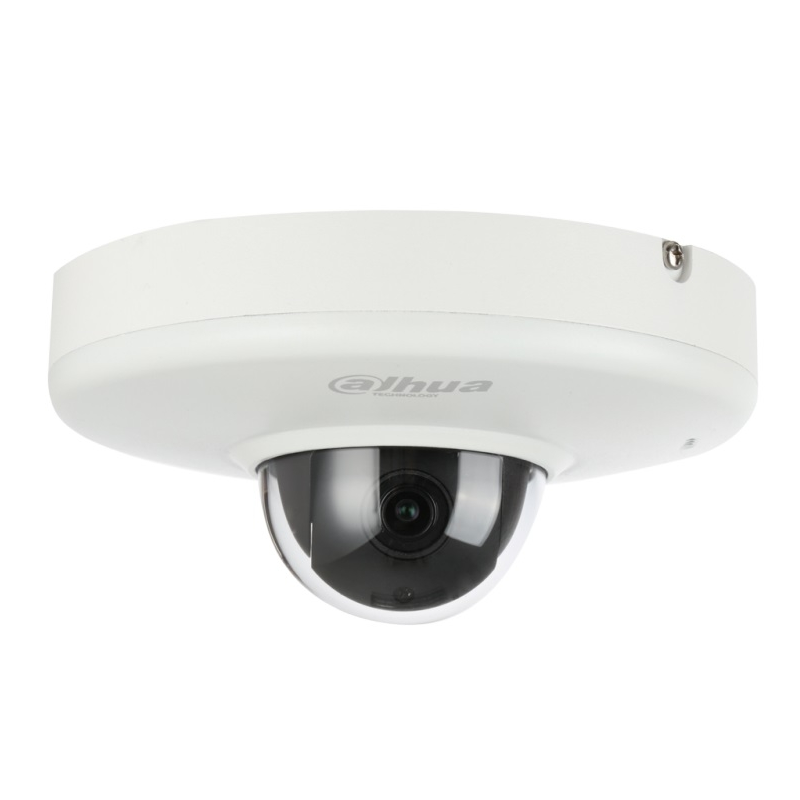

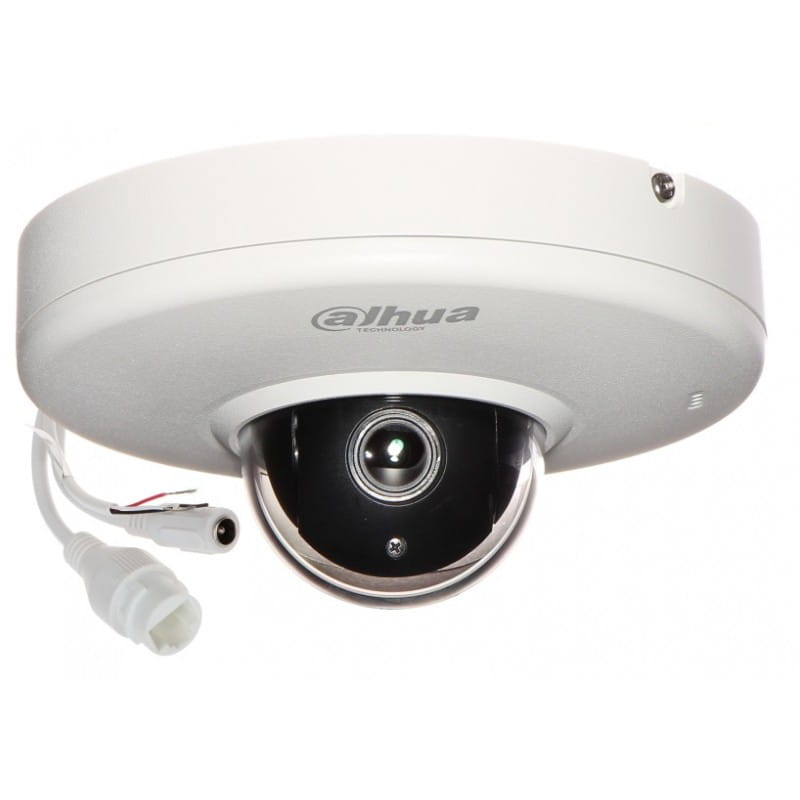

SD12200T-GN-0280B

Kamera IP obrotowa PTZ z serii PTZ Lite , 1/2,8" 2 Mpx STARVIS CMOS, technologia Starlight, 25/30 kl./s @ 1080P, H.265+/H.264, IP66, obiektyw staoogniskowy 2,8 mm, IVS, redukcja mgy, prędkość sterowania ręcznego: panorama 0,1° ~ 70°/s; pochylenie 0,1° ~ 30° /s...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite Series | DH-SD12200T-GN

www.dahuasecurity.com
· 1/2.8” 2Megapixel STARVIS
TM
CMOS
· Support Triple-streams encoding
· Starlight, WDR
· Max. 25/30fps@1080P
· IVS
· Support PoE
· IP66
DH-SD12200T-GN
2MP Starlight PT Network Camera

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, the camera provides a wide monitoring range and great
detail. The camera delivers 1080P resolution at 25/30fps. The camera is
equipped with smooth control, high quality image, and good protection,
meeting compact size demands of video surveillance applications.
Functions

Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction
to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -30 °C to +60 °C (-22 °F to +140 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for 6KV lightning rating,which provides effective
protection for both the camera and its structure against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) and PSIA (Physical Security Interoperability Alliance) specifi-
cations, ensuring interoperability between network video products
regardless of manufacturer.

0.005Lux
PoE


www.dahuasecurity.com
Lite Series | DH-SD12200T-GN

Technical Specification
Camera
Image Sensor
1/2.8” STARVIS
TM
CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM512M/128M
Electronic Shutter Speed1/1s~1/30,000s
Scanning SystemProgressive
Minimum IlluminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
S/N RatioMore than 50dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A
Lens
Lens TypeFixed
Focal Length3.6mm/2.8mm
Max. ApertureF1.6
Angle of View
3.6mm: H: 80.9°; V: 40.8°
2.8mm: H: 102.9°; V: 54.9°
Optical ZoomN/A
Focus ControlFixed
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
Lens DetectObserve Recognize Identify
3.6mm 54.5m(178.8ft) 21.8m(71.5ft) 10.9m(35.8ft) 5.4m(17.7ft)
2.8mm 41.4m(135.8ft) 16.6m(54.5ft) 8.3m(27.2ft) 4.1m(13.5ft)
PTZ
Pan/Tilt RangePan: 0° ~ 355°; Tilt: 20° ~ 90°
Manual Control SpeedPan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset SpeedPan: 80° /s; Tilt: 40° /s
Presets300
PTZ Mode8 Tour, Auto Pan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/Tour if there is no command in the
specified period
ProtocolDH-SD
Intelligence
Auto TrackingN/A


IVS
Tripwire, Intrusion,Abandoned/Missing, Face
Detection
Video
CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution
1080P(1920x1080) /720P(1280x720)/
D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate
Main stream: 1080P/720P(1 ~ 25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
N/A
Defog Support
Digital Zoom16x
Flip 180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711mu/G.726/AAC
Network
EthernetRJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
Smart Phone IOS, Android
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Lite Series | DH-SD12200T-GN
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP PT
Camera
DH-SD12200T-GN
2MP Starlight PT Network
Camera, WDR, PAL
DH-SD12200TN-GN
2MP Starlight PT Network
Camera, WDR, NTSC
SD12200T-GN
2MP Starlight PT Network
Camera, WDR, PAL
SD12200TN-GN
2MP Starlight PT Network
Camera, WDR, NTSC
Accessories
PFA107Mount Adapter
PFB305W Wall Mount
PFB220C Ceiling Mount
DC12V/2APower Adapter

Interface
Video InterfaceN/A
RS485N/A
Audio I/O Mic in/Line in, Line out
Alarm I/ON/A
Electrical
Power SupplyDC 12V/1.5A, PoE(802.3af)
Power Consumption6W
Environmental
Operating Conditions-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection IP66
Vandal ResistanceIK08
Construction
CasingMetal
Dimensions Φ128 (mm) x 63 (mm)
Net Weight0.485kg(1.07lb)
Gross Weight0.7kg(1.54lb)
Accessories
PFA107
Mount Adapter
PFB305W
Wall Mount
PFB220C
Ceiling Mount
DC12V/2A
Power Adapter
Dimensions (mm)
Optional：

63mm

34mm

128mm

Ceiling Moun t

PFB220C+PFA 107PFB305W+PF A107
Wa ll Moun t
