S8610

Karty liniowe 10G o dużej gęstości portów, w pełni zgodny ze standardami 40GE Ethernet Obsługa technologii wirtualizacji Technologia szyfrowania na poziomie sprzętowym MACsec Wysokowydajne możliwości usług IPv4 / IPv6 Kompleksowe zasady kontroli bezpieczeństwa Obsługa wymiany na gorąco wszystkich komponentów Zaawansowana wielostopniowa i wielopłaszczyznowa architektura przełączania CLOS...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com

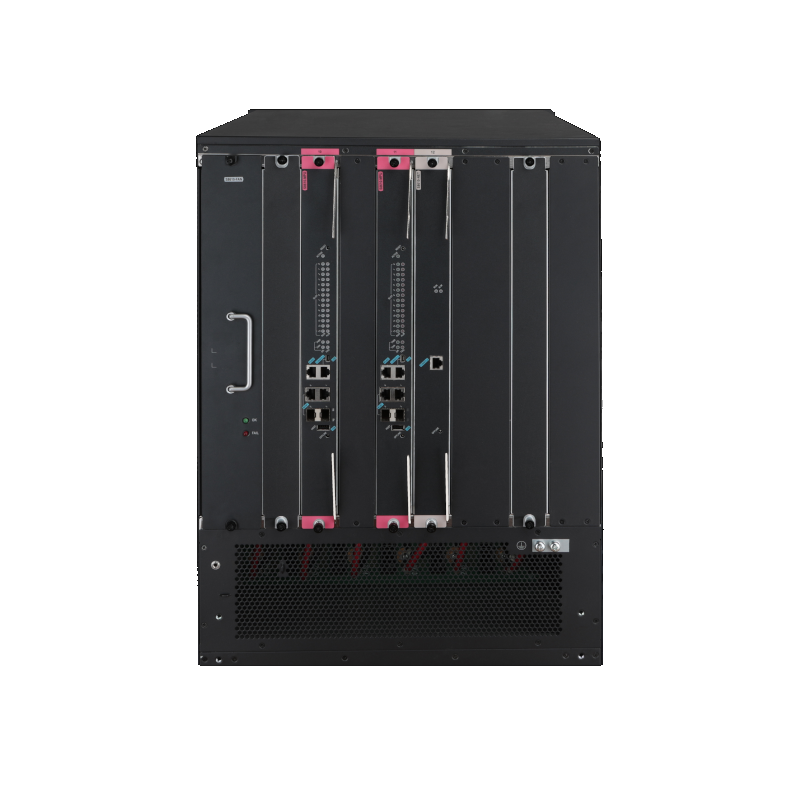

DH-S8610

· High port density 10G line cards
· Fully compliant with 40GE Ethernet standards
· Support virtualization technologies
· Hardware level encryption technology MACsec
· High-performance IPv4/IPv6 service capabilities
· Comprehensive security control policies
· Support hot swapping for all components
· Advanced CLOS multistage and multi-plane switching architecture,
delivering great bandwidth scalability
System Overview
DH-S8610 product is a high-end multi-service routing switch for fusion
business networks by Dahua. The product supports a virtualization
software system based on IRF2 (Intelligent Resilient Framework 2,
the second generation of intelligent elastic architecture) technology.
It is fully compatible with 40GE Ethernet standards, and provides
uninterrupted forwarding and upgrades, graceful restart, ring network
protection and other high-reliability technologies. While improving
production efficiency, it ensures the maximum network uptime, thereby
reducing the total cost of ownership (TCO).

Core Switch | DH-S8610
Functions
Advanced System Architecture
The system architecture incorporates the following advanced designs:
Clos multistage and multi-plane switching architecture: Delivers great
bandwidth scalability.
Orthogonal interconnection of switching fabric modules and service
modules: Traffic between service modules is sent directly to the
switching fabric modules through the orthogonal interconnectors,
without cabling on the backplane, which significantly reduces signal loss
and improves bandwidth efficiency. This design offers great bandwidth
and capacity scalability, allowing the system capacity to be expanded to
256 Tbps.
Compliant with 10GE and 40GE Ethernet standards: Enables the system
to satisfy the growing demands of non-blocking campus networks.
Switching fabric module independency and redundancy: Independence
between switching fabric modules and control engines maximizes the
system availability and ensures bandwidth expansion.
Power module redundancy: Guards the switch against unexpected
power module failures and significantly enhances system availability.
Virtualization Technologies - IRF2
IRF2 can virtualize up to four DH-S8610 switches into one logical IRF
fabric. IRF2 delivers the following benefits:
High Availability (HA) - Provide data backup and non-stop forwarding
on the control plane and data plane. This improves availability,
performance, eliminates single-point failures and ensures service
continuity.
Distribution - Multi-chassis link aggregation to enable load sharing and
backup over multiple uplinks, improving redundancy and link utilization.
Easy Management - A single IP address to manage the whole IRF fabric,
which simplifies device and topology management, improving operating
efficiency, and lowering network maintenance cost.
Hardware Level Encryption Technology MACsec
DH-S8610 switch supports hardware level encryption technology
MACsec (802.1ae), which is an industry-standard security technology
that provides secure communication for all traffic on Ethernet links.
Compared with traditional application based software encryption
technology, MACsec provides point-to-point security on Ethernet links
between directly connected nodes and is capable of identifying and
preventing most security threats.

www.dahuasecurity.com
Core Switch | DH-S8610

Technical Specification
Hardware Feature
Total Number of Slots13
Number of Line Card Slots10
Number of MPU Slots2
Switching fabric module
Slots
1
Hot SwappingYes
Console Port
1 x RJ45 console port
1 x Micro-USB port
Power Supply
Not included
Min: 3
Max: 6
100-240V AC 50-60 Hz (Internal)
Power Consumption
Idling: 30W
Full load: 2430W
Operating Temperature 0°C to 45°C (32°F to 113°F)
Operating Humidity5%RH–95%RH
Storage Temperature –40°C to 70°C (–40°F to 158°F)
RedundancyRedundant MPUs, power modules, and fan trays
Performance
LayerLayer 3
ManagedYes
Switching Capacity256 Tbps
Packet Forwarding Rate8400 Mpps
Jumbo Frame10000 Byte
Features
Ethernet
IEEE 802.1P(CoS priority)
IEEE 802.1Q
IEEE 802.1ad (QinQ), selective QinQ and Vlan mapping
DLDP
LLDP
Static MAC configuration
Limited MAC learning
Port mirroring and traffic mirroring
Port aggregation, port isolation, and port mirroring
IEEE 802.1D (STP)/802.1w (RSTP)/802.1s (MSTP)
IEEE 802.3ad (dynamic link aggregation), static port
aggregation, and multi-chassis link aggregation
RRPP (Rapid Ring Protection Protocol)
Jumbo frame
SuperVLAN
PVLAN
Multicast VLAN+
MCE
Routing
Static routing, RIP, OSPF, IS-IS, and BGP4
IPv4/IPv6 ECMP
VRRP
IPv4/IPv6 Policy-based routing
IPv4/IPv6 Routing policy
IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+
VRRPv3
Pingv6, Tenetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6

DHCP
DHCP Client
DHCP Snooping
DHCP Snooping option82
DHCP Relay
DHCP Server
DHCP auto-config
IP routing
12K IPV4 routing entries
Static routing
RIPv1/v2 and RIPng
OSPFv1/v2/v3
BGP and BGP4+ for IPv6
IS-IS
VRRP/VRRPv3
Mirroring
Flow mirroring
N:4 port mirroring
Local port mirroring and remote port mirroring
Multicast
PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, and Any-RP
IGMP V1/V2/V3 and IGMP V1/V2/V3 snooping
PIM6-DM, PIM6-SM, and PIM6-SSM
MLD V1/V2 and MLD V1/V2 snooping
Multicast policies and Multicast QoS
IRF
IRF2
Distributed device management, distributed link
aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking
Security
Hierarchical user management and password
protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
IP Source Guard
HTTPs Hierarchical user management and password
protection
802.1X authentication and centralized MAC address
authentication
Guest VLAN
Portal authentication
DHCP snooping
Dynamic ARP detection
BPDU guard and root guard
uRPF
IP/Port/MAC binding
Plaintext authentication and MD5 authentication for
OSPF and RIPv2 packets
Public Key Infrastructure (PKI)
ACL/QoS
Standard and extended ACLs
Ingress and egress ACLs
VLAN ACLs
Global ACLs
Diff-Serv QoS
SP, WRR, SP+WRR, CBWFQ
Traffic shaping
Congestion avoidance
Priority marking and remarking
802.1p, TOS, DSCP, and EXP priority mapping
System Management
Loading and upgrading through XModem/FTP/TFTP
SNMP v1/v2/v3
sFlow
RMON
NTP clocks
Fault alarm and automatic fault recovery
System logs
Device status monitoring mechanism, including
the CPU engine, backplane, chips and other key
components

www.dahuasecurity.com

Ordering Information
TypeModelDescription
SFP Module
PFT3950
1.25 G 850 nm, 500 m, LC, Multi-mode
[optional]
PFT3960
1.25 G 1310/1550 nm, 20 km, LC, Single-
mode [optional]
PFT3970
1.25 G 1550/1310 nm, 20 km, LC, Single-
mode [optional]
PFTOTSFP-1270R-
20-SMF
10 G 1310/1270 nm, 20 km, LC, Single-
mode [optional]
PFTOTSFP-1270T-
20-SMF
10 G 1270/1310 nm, 20 km, LC, Single-
mode [optional]
PFTOTSFP-850-
MMF
10 G 850 nm, 20 km, LC, Multi-mode
[optional]
QSFP-40G-CSR4-
MM850
40 G 850 nm, 300 m, CSR4, Multi-mode
[optional]
Accessories
S8610-MPUMain processing unit
S8610-PWR1200Power module
S8610-NETSwitching fabric module
S8610-FANFans
S86-44GF4XFSE44 x GF + 4 x 10G SFP + Ports
S86-48GTSE48 x GE Ports
S86-12QFSG12 x 40G QSFP Ports
S86-48XFSG48 x 10G SFP + Ports
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Core Switch | DH-S8610

Network Management
Command line interface (CLI) configuration
Telnet remote configuration
Configuration via console port
SNMP v1/v2/v3
System log
Power, fan, temperature alarm
HA
1+1 redundancy for key components such as MPUs
1+1 redundancy for power modules
Passive backplane
Hot swapping for all components
Real-time data backup on active/standby MPUs
CPU protection
VRRP
Hot patching
Ethernet OAM (802.1ag and 802.3ah)
RRPP/ERPS
VCT
Smart-Link
ISSU
General
Thunderproof
Common mode: 2kV
Differential mode: 1kV
Fully loaded weight64.5 kg (142.20 lb)
Gross Weight90.5 kg (199.52 lb)
Product Dimensions620 mm x 440 mm x 660 mm (24.41" x 17.32" x 25.98" )
Packaging Dimensions870 mm x 790 mm x 870 mm (34.25" x 31.10" x 14.57")
