S7603

Dostępność: 0
Cena: 27 959,00 zł 27959.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: S7603

Opis

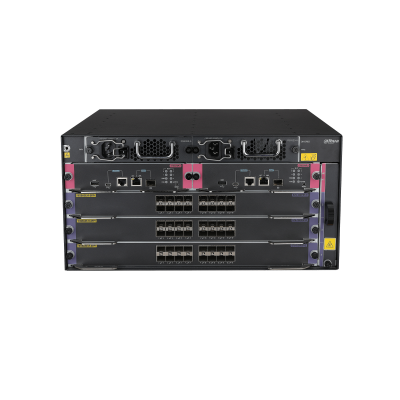

Obudowa 5U z dwoma modułami zasilającymi i jednym modułem zarządzania. Pozwala zamontować trzy moduły o różnych kombinacjach portów RJ45 i SFP. Moduł zarządzania S7603-MPU. Moduł zasilający S7603-PWR300....

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-S7603

· Rich layer 3 features
· Excellent manageability
· Support Intelligent Resilient Framework
· Comprehensive security control policies
· Support hot swapping for all components
· High-performance IPv4/IPv6 service capabilities
· Hardware level encryption technology MACsec
· Meets the need of different port density and
performance requirements
System Overview
DH-S7603 is based on a large platform, and supports a variety of
Ethernet interfaces, including 1000M optical interfaces, 1000M
electrical interfaces, 10G optical interfaces, which meet multi-level
link bandwidth requirements of users. Complying with Restriction of
Hazardous Substances (RoHS), DH-S7603 is an environment-friendly
routing switch.
DH-S7603 supports main controller redundancy, and can be widely
applied in multiple network environments, providing users with industry
solutions that integrate security and switching components, wired
components, and integrate active and passive components

Core Switch | DH-S7603
Functions
Virtualization Technologies - IRF2
IRF2 can virtualize up to four DH-S7603 into one logical IRF fabric. IRF2
delivers the following benefits:
High Availability (HA) - Provide data backup and non-stop forwarding
on the control plane and data plane. This improves availability,
performance, eliminates single-point failures and ensures service
continuity.
Distribution - Multi-chassis link aggregation to enable load sharing and
backup over multiple uplinks, improving redundancy and link utilization.
Easy Management - A single IP address to manage the whole IRF fabric,
which simplifies device and topology management, improving operating
efficiency, and lowering network maintenance cost.
Abundant QoS Features
DH-S7603 offers abundant QoS features, including:
Packet filtering based on packet header fields from layer 2 through layer
4, including source MAC, destination MAC, source IP, destination IP, TCP/
UDP port number, protocol type, and VLAN.
Flexible queuing and scheduling algorithms configured on a per-port
or per-queue basis, including strict priority (SP), weighted round robin
(WRR), and SP+WRR. Port mirroring in both outbound and inbound
directions for network monitoring and troubleshooting.
Outstanding Management Capacity
The switch provides a variety of management features and is easy to
manage. It offers the following device management features:
Provides multiple management interfaces, including the console port,
micro USB port, and out-of-band management Ethernet port.
To help customers gain visibility into network application traffic, the
switch provides a variety of traffic monitoring and analytic tools,
including local port mirroring and layer 2 remote port mirroring. With
these tools, customers can specify multiple monitor ports and collect
network traffic data to evaluate network health status, create traffic
analysis reports, perform traffic engineering, and optimize resource
allocation.

www.dahuasecurity.com
Core Switch | DH-S7603

Technical Specification
Hardware Feature
Total Number of Slots5
Number of Line Card Slots3
Number of MPU Slots2
Hot SwappingYes
Console Port
1 x RJ45 console port
1 x Micro-USB port
Power Supply
Two powers included
Supports dual power
100-240V AC 50-60 Hz (Internal)
Power Consumption
Idling: 7.5W
Full load: 490W
Operating Temperature 0°C to 45°C (32°F to 113°F)
Operating Humidity5%RH–95%RH
Storage Temperature –40°C to 70°C (–40°F to 158°F)
RedundancyRedundant MPUs, power modules, and fan trays
Performance
LayerLayer 3
ManagedYes
Switching Capacity19.2 Tbps
Packet Forwarding Rate1440 Mpps
Packet Buffer Memory24 Mbit
Jumbo Frame10000 Byte
Features
Ethernet
IEEE 802.1P (CoS priority)
IEEE 802.1Q
IEEE 802.1ad (QinQ), selective QinQ and VLAN mapping
DLDP
LLDP
Static MAC configuration
Limited MAC learning
Port mirroring and traffic mirroring
Port aggregation, port isolation, and port mirroring
IEEE 802.1D (STP)/802.1w (RSTP)/802.1s (MSTP)
IEEE 802.3ad (dynamic link aggregation), static port
aggregation, and multi-chassis link aggregation
RRPP (Rapid Ring Protection Protocol)
Jumbo frame
SuperVLAN
PVLAN
Multicast VLAN+
MCE
Routing
Static routing, RIP, OSPF, IS-IS, and BGP4
IPv4/IPv6 ECMP
VRRP
IPv4/IPv6 Policy-based routing
IPv4/IPv6 Routing policy
IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+
VRRPv3
Pingv6, Tenetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6
DHCP
DHCP client
DHCP snooping
DHCP snooping option82
DHCP relay
DHCP server
DHCP auto-config

IP routing
12K IPV4 routing entries
Static routing
RIPv1/v2 and RIPng
OSPFv1/v2/v3
BGP and BGP4+ for IPv6
IS-IS
VRRP/VRRPv3
Mirroring
Flow mirroring
N:4 port mirroring
Local port mirroring and remote port mirroring
Multicast
PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, and Any-RP
IGMP V1/V2/V3 and IGMP V1/V2/V3 snooping
PIM6-DM, PIM6-SM, and PIM6-SSM
MLD V1/V2 and MLD V1/V2 snooping
Multicast policies and multicast QoS
IRF
IRF2
Distributed device management, distributed link
aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking
Security
Hierarchical user management and password
protection
AAA authentication
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
IP source guard
HTTPs Hierarchical user management and password
protection
802.1X authentication and centralized MAC address
authentication
Guest VLAN
Portal authentication
DHCP snooping
Dynamic ARP detection
BPDU guard and root guard
uRPF
IP/Port/MAC binding
Plaintext authentication and MD5 authentication for
OSPF and RIPv2 packets
Public Key Infrastructure (PKI)
ACL/QoS
Standard and extended ACLs
Ingress and egress ACLs
VLAN ACLs
Global ACLs
Diff-Serv QoS
SP, WRR, SP+WRR, CBWFQ
Traffic shaping
Congestion avoidance
Priority marking and remarking
802.1p, TOS, DSCP, and EXP priority mapping
System Management
Loading and upgrading through XModem/FTP/TFTP
SNMP v1/v2/v3
sFlow
RMON
NTP clocks
Fault alarm and automatic fault recovery
System logs
Device status monitoring mechanism, including the CPU
engine, backplane, chips and other key components
Network Management
Command line interface (CLI) configuration
Telnet remote configuration
Configuration via console port
SNMP v1/v2/v3
Web network management
System log
Power, fan, temperature alarm

www.dahuasecurity.com

Ordering Information
TypeModelDescription
SFP Module
PFT3950
1.25 G 850 nm, 500 m, LC, Multi-mode
[optional]
PFT3960
1.25 G 1310/1550 nm, 20 km, LC,
Single-mode [optional]
PFT3970
1.25 G 1550/1310 nm, 20 km, LC,
Single-mode[optional]
PFTOTSFP-1270R-
20-SMF
10 G 1310/1270 nm, 20 km, LC,
Single-mode [optional]
PFTOTSFP-1270T-
20-SMF
10 G 1270/1310 nm, 20 km, LC,
Single-mode [optional]
PFTOTSFP-850-
MMF
10 G 850 nm, 20 km, LC, Multi-mode
[optional]
Accessories
S7603-MPUMain processing unit
S7603-PWR300Power module
S76-24GT4XFSC24 x GE + 4 x 10G SFP + Ports
S76-24GF4XFSA24 x GF + 4 x 10G SFP + Ports
S76-48GTSA48 x GE Ports
S76-48GFSA48 x GF Ports
S76-
24GT20GF4XFSC
24 x GE + 20 x GF + 4 x 10G SFP + Ports
S76-16XFSF16 x 10G SFP + Ports
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Core Switch | DH-S7603

HA
1+1 redundancy for key components such as MPUs
1+1 redundancy for power modules
Passive backplane
Hot swapping for all components
Real-time data backup on active/standby MPUs
CPU protection
VRRP
Hot patching
Ethernet OAM (802.1ag and 802.3ah)
RRPP/ERPS
VCT
Smart-Link
ISSU
General
Thunderproof
Common mode: 2kV
Differential mode: 1kV
Net Weight20.2 kg (44.53 lb)
Gross Weight26.65 kg (26.68 lb)
Product Dimensions216 mm x 436 mm x 420 mm (8.50" x 17.17" x 16.54")
Packaging Dimensions650 mm x 590 mm x 375 mm (25.59" x 23.23" x 14.76")
