PSDW81642M-H-A360-E9-D237-L-DC36V

Dostępność: 1-5
Cena: 37 428,00 zł 37428.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: PSDW81642M-H-A360-E9-D237-L-DC36V

Opis

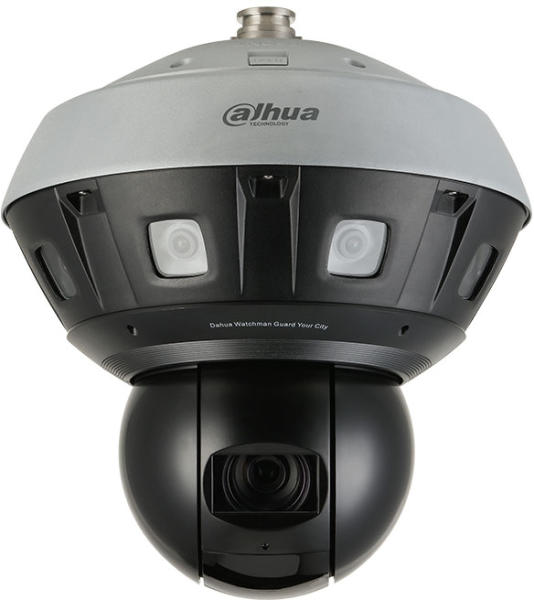

Kamera IP panoramiczna 8x 2Mpx 1/1.8" CMOS, PTZ 1x 2Mpx 1/1.8" CMOS, 360 stopni, Starlight, IR max 220m, H.265+, AI: IVS, Automatyczne śledzenie obiektów...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Panoramic Series | DH-PSDW81642M-A360

www.dahuasecurity.com
DH-PSDW81642M-A360
8x2MP Multi-Sensor Panoramic Network Camera+PTZ Camera

System Overview
Starlight panoramic HD network camera, with all-in-one design, provides
a 360°panorama and region of interest details at the same time. The
panoramic network combines 8 sensors working in tandem to realize
360°panoramic surveillance; all-in-one module and high-speed PTZ cam-
era provides the function of quick position details. In addition, with video
analytic algorithm and multi-target track algorithm, the camera can auto-
matically or manually detect tripwire and intrusion of mutiple targets in
detection area, output alarm signal, and then link PTZ for smart tracking.
With these excellent features, the camera can meet higher security
requirements.
Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applica-
tions with fluctuating lighting conditions, delivering color images during
the day and automatically switching to monochrome as the scene
darkens.
Starlight Technology
Featured with Dahua Starlight Technology, the camera is ideal for ap-
plications with challenging light conditions. Its low light performance
delivers usable video with minimal ambient light. Even in extreme low
light conditions, Starlight Technology is capable of delivering color im-
ages in nearly complete darkness.
Crowd map
1. The crowd map is displayed on panorama.
2. Customized ROIs setting, people counting overlay and people thresh
old alarm.
3. Global crowd density threshold setting and alarm.
4. Alarm linkage for global crowd density threshold and area people
threshold (Arm period, record, sending E-mail and snapshot).
Tripwire detection and intrusion detection
With advanced CNN algorithm, the detection distance,and the accuracy
rate and timely rate of linkage track are much improved.
Smart tracking
1. Panoramic channel supports manual position, frame selection zoom
position.
2. Manual track.
3. Auto track after tripwire and intrusion are triggered.
4. Smart tracking after crowd map alarm is triggered.
· Panoramic: Eight 1/1.8'' 2 Megapixel progressive scan CMOS
· PTZ: One 1/1.8'' 4 Megapixel progressive scan CMOS
· Support 360-degree panoramic view
· Starlight technology
· H.265/H.264 triple-stream encoding
· Day/Night (ICR); 3D DNR; AWB; AGC; BLC
· IR distance up to 400 m
· Smart tracking
· Tripwire
· Intrusion
· Crowd map
·

Starlight

ICR D/N
H.265

Tripwire
Intrusion
TRACKING
Smart Tracking
360°
Panoramic


Panoramic Series | DH-PSDW81642M-A360

Technical Specification
Camera
Image sensor
Panoramic network camera: 1/1.8”CMOS
PTZ camera: 1/1.8”CMOS
Max. resolution
Panoramic network camera: 8192 x 1800
PTZ camera: 2560 x 1440
Scan
Progressive
Electronic shutter
Panoramic network camera: 1/3 s-1/100000 s, manual or
auto adjust
PTZ Camera: 1/1 s-1/300000 s, manual or auto adjust
Minimum illumination
Panoramic network camera:
0.01 Lux @ F2.0
PTZ camera:
0. 0008 Lux @ F1.3
Max fill light distance
Panoramic network camera: None
PTZ camera: ≥ 400 m (1312 ft) (IR fill light)
Fill light control
Auto
Fill light quantity
Panoramic network camera:None
PTZ camera: 7 (IR LEDs)
Lens angle range
N/A
Lens
Lens type
Panoramic network camera:
Fix focal PTZ camera: Electric zoom
Lens connector
Panoramic network camera :M12
PTZ camera: Core interface
Focal length
Panoramic network camera 5 mm
PTZ camera: 5.6mm–223mm, optical zoom (40 times)
Aperture
Panoramic network camera: F2.0
PTZ camera: F1.3
Angle of view
Panoramic network camera:Horizontal: 360°
Vertical: 84°
PTZ camera:Horizontal: 2°–61°
vertical: 1°-36°
Diagonal: 3°–68°
Optical zoom
Panoramic network camera: None
PTZ camera: 40 times
Aperture type
Panoramic network camera: Fixed aperture
PTZ camera: Auto aperture
Min photographic distance
Panoramic network camera :1.2 m (3.94 ft)
PTZ camera: 0.5 m (1.64 ft)
DORI
distance
DetectObserveReconizeIdentify
Panoramic
network
camera
53.3m
( 174.9ft )
21.3m
( 69.9ft )
10.7m
( 35.1ft )
5.3m
( 17.4ft )
PTZ camera
2873.1m
( 9426.2ft )
1149.2m
( 3770.3ft )
574.6m
(1885.2ft)
287.3m
( 942.6ft )
Smart event
IVS analyzeIntrusion, tripwire
Professional, Intelligent
Crowd mapCrowed map, Global setup and No. in area
Video
Video encodingH.265; H.264; H.264H; H.264B; MJPEG
Intelligent code
H.264
H.265


Video frame rate
Main stream: 8192 x 1800 (1–25 fps/30 fps)
Sub Stream: 3840 x 832 (1–25 fps/30 fps)
Third Stream: 4800x x 3840 (1–25 fps/30 fps)
Decoding3 Streams
Resolution
Panoramic network camera:
8192 x 1800; 7680 x 1680; 5760 x 1264; 4800 x
3840; 4096 x 900; 3840 x 832; 3200 x 2560; 2560 x
560; 2048 x 452; 1600 x 1280
PTZ camera:
2560 x 1440; 2048 x 1536; 1920 x 1080; 1280 x 960
1280 x 720; 704 x 576; 704x480; 352 x 288;
352x240
Bit rate control
Panoramic network camera: CBR/VBR
PTZ camera:CBR/VBR
Video bit rate
Panoramic network camera:
H.264: 512 Kbps-42995 Kbps
H.265: 256 Kbps-26216 Kbps
PTZ camera:
H.264: 184 Kbps-15104 Kbps
H.265: 110 Kbps-9216 Kbps
Day/Night
ICR
BLC
Yes
Wide dynamic range
120 dB
White balance
Panoramic network camera:Auto/Natural/street
lamp/outdoor/manual/regional Custom
PTZ camera: Auto/indoor/outdoor/tracking/
manual/sodium lamp/natural/street lamp
Gain control
Auto/Manual
Noise reduction
3D DNR
Motion Detection
Disable/Enable
Region of interest
Panoramic network camera: Yes (4 areas)
PTZ camera:Yes (4 areas)
Electronic image
stabilization(EIS)
Panoramic network camera: —
PZT camera: Yes
Smart IR
Panoramic network camera: —
PTZ camera: Yes (Adjusted by user.)
Defog
Panoramic network camera: —
PTZ camera: Yes
Digital zoom
Panoramic network camera: N/A
PTZ camera: 16 times
Privacy masking
Panoramic network camera
(Privacy masking): 4 areas
PTZ camera (Privacy masking): 8 areas
Audio
Audio encodingG.711Mu/G.711A/ G.726/ AAC/
Network
Ethernet
One 10/100/1000Mbps Ethernet port
One 1000M fiber port(optional)
Network protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/IPv6; SNMP; QoS;
UPnP; NTP
Third party accessONVIF (Profile G); CGI
Scene self-adaptationYes
Max user20 (Total bandwidth: 80 M)
StorageSD card, FTP (SFTP), NAS (NFS/SMB)
BrowserIE, Chrome, Firefox, Safari
www.dahuasecurity.com

www.dahuasecurity.com

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Panoramic Series | DH-PSDW81642M-A360

PlatformEVS, NVR, M70, DSS
Certification
Certification
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485 portOne (Bit rate: 1200 bps-115200 bps)
Audio input2 channels (connecting terminal)
Audio output2 channels (connecting terminal)
Alarm input
7 channels (Wet contact, and it supports potential 3V–5V
and max current 0.5A.)
Alarm output
3 channels (Wet contact, and it supports max potential
30V DC, 1 A/max potential 50V AC, current 0.5 A.)
Analog output1 channel CVBS BNC port
Power
Power supplyDC36V
Power consumption< 84.4W
Environment
Operating temperature-40°C to +70°C (-40°F to +158°F)
Operating humidity≤95%
Storage temperature-40°C to +70°C (-40°F to +158°F)/Less than 95% RH
Protection gradeIP66
Structure
EnclosureMetal + Plastic
DimensionsΦ383 mm x 389.8 mm (Φ1256.56 ft x 1279.8 ft)
Net weight14.7 kg (32.41 lb)
Gross weight19.8 kg (43.65 lb)


Ordering Information
TypePart NumberDescription
Panoramic +
PTZ camera
DH-
PSDW81642M-A360
8x2MP Multi-Sensor Panoramic Network
Camera+PTZ Camera, PAL/NTSC
DH-
PSDW8842M-A180
4x2MP Multi-Sensor Panoramic Network
Camera+PTZ Camera, PAL/NTSC
Accessories
PFB710CHang-mounted bracket
PFB710WWall-mounted bracket
DH-PFA153
DH-PFA153-Heavy pole-mounted bracket-
DH816W2

Pe ut
Ce-mute

DH-PFA153
PF10

Wa ut

PF10W

Accessories
Optional:
DH-PFA153
DH-PFA153-Heavy
pole-mounted
bracket-DH816W2

PFB710W
Wall-mounted bracket
PFB710C
Hang-mounted bracket
Dimensions (mm[inch])

Dane techniczne

Wejścia alarmowe 2
Wyjścia alarmowe 2
Rozmiar przetwornika 1/1.8
Zasilanie DC 36VDC
Szczelność IP66
Rozdzielczość wizyjna 16MPIX
Typ kamery Panoramiczna
Oświetlacz podczerwieni ± 400 m
Zakres dynamiki (WDR) WDR 120dB
