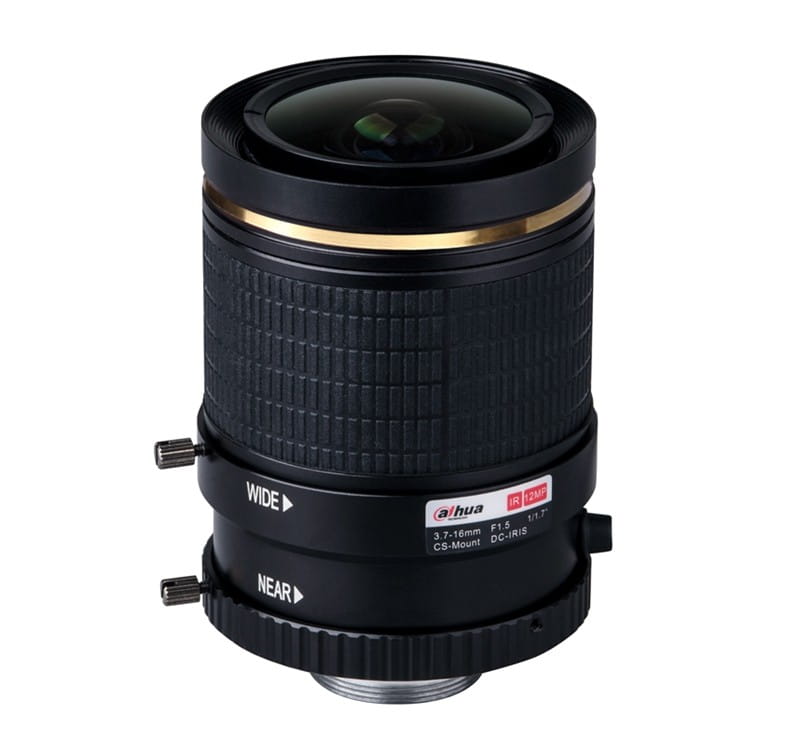

PLZ20C0-P
Opis
Obiektyw do kamery 1/1,7", przesłona: F1.5, ogniskowa: 3,7-16 mm, montaż: CS, rozdzielczość: 12 Mpx, wymiary: Φ55×88 mm, waga: 272,5 g...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DH -PLZ20 C0 -P
12 MegaPixel P-Iris Lens
Specifications
Model DH -PLZ20 C0-P
Parameter
Image format 1/1.7 ” (max. image format>ɸ9.33)
Focal length 3.7-16 mm
Aperture F1.5±10%
Field Angle(FOV)
W: 145 °x 109 °x 79 °
T: 35.6°x 28.5 °x 21.4°
M.O.D. 0.5m
TV Distortion -30%(Wide)
IR Correction Yes
Lens Control
Focus Manual
Zoom Manual
Iris P-Iris
Mount CS
Dimension ∅54x82.8 mm
Weight 270g
Operating temperature -30 ℃~ +70 ℃
DH -PLZ20 C0 -P
Dimensions (mm)
Dahua Technology Co., Ltd. 11
99 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
