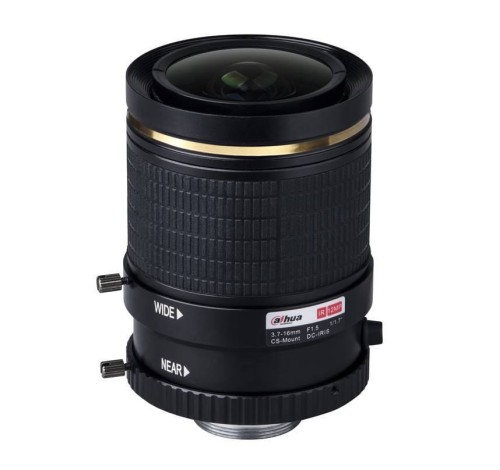

PLZ20C0-D
Opis
Obiektyw do kamery 1/1,7", przesłona: F1.5, ogniskowa: 3,7-16 mm, montaż: CS, rozdzielczość: 12 Mpx, wymiary: Φ55×88 mm, waga: 272,5 g...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
www.dahuasecurity.com
Lens Series | PLZ20C0-D
PLZ20C0-D
12 MP 1/1.7” 3.7-16mm Vari-focal Lens
Lens Series | PLZ20C0-D
www.dahuasecurity.com
Technical Specification
ModelPLZ20C0-D
Prameter
Image Format1/1.7”
Focal Length3.7-16mm
Lens Pixel12MP
ApertureF1.5
MountCS
Field Angle
(D*H*V)
1/1.7” W:145°(D)x109°(H)x79°(V)~T: 35.6°(D)x28.5°(H)x21.4°(V)
Lens Control
FocusManual
ZoomManual
IrisDC-Iris
IR CorrectionYes
M.O.D.0.5m (1.64ft)
Dimension ɸ54mmx82.8mm (ɸ2.12”x3.26”)
Weight0.27kg (0.6lb)
Operating Temperature-30℃~+70℃ (-22℉~+158℉)
Humidity<90% RH
Certifications
Certifications
CE (EN55022, EN55024, EN50130-4)
FCC (ANSI C63.4, FCC Part 15 Subpart B)
Ordering Information
TypePart NumberDescription
Lens
DH-PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens
PLZ20C0-D 12MP 1/1.7" 3.7-16mm vari-focal lens
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Lens Series | PLZ20C0-D
www.dahuasecurity.com
Dimensions (mm/inch)
Package Information
· 12MP 1/1.7" 3.7-16mm vari-focal lens PLZ20C0-D *1
