PFWB5-10ac

Moduł bezprzewodowy zewnętrzny 5GHz AC867 20dBi 0-5km...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DH-PFWB5-10ac

www.dahuasecurity.com
Features
· Integrated 5 GHz (2x2) MIMO radio
· Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 -
5.850 GHz)
· High performance and stability
· IP-66 standards rated enclosure
· Improved noise immunity
· TDMA
· Powerful OS
· D
· Built-in tools including Site Survey, Link Test, Antenna
Alignment, Spectrum Analyzer, Ping & Trace help in

· R PTP PTMP
PTMP
DH-PFWB5-10ac

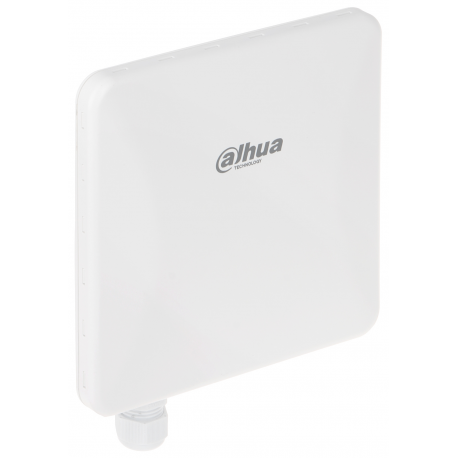

5GHz AC867 20dBi Outdoor Wireless CPE

TR S
ModelDH-PFWB5-10ac
Wireless
WLAN Standard
IEEE 802.11 a/n/ac
Radio ModeMIMO 2x2
Radio Frequency Band
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 -
5.850 GHz)
Transmit PowerUp to 30 dBm (country dependent)
Receive Sensitivity
Varying between -95 and -64 dBm depending on
modulation
Channel Size5,10,20,40, 80 MHz
M SR
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM,
QPSK, BPSK)
Data Rates
802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180,
120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390,
260, 195, 130, 65 Mbps
E C FEC, LDPC
Duplexing SchemeTime division duplex
Transmission Distance A
Antenna
TypeIntegrated directional panel antenna
Gain 20dBi
Wired
Interface10/100/1000 Base-T, RJ45
P O
A M RR R R
802.11ac technology based radio and a proprietary data transmission
TDMA I QCA CPU MH QCA
MB RAM MB R
R DH PFWB
S R RF R

R RR QAM TR V G ER
PE R R R
DH PFWB
R DH W
TDMA RR R
R R


TR S
S
Wireless Operating Modes
Access point (auto WDS), access point (TDMA),
station (WDS, TDMA ), station (ARP NAT)
Wireless Techniques
Smart station polling, smart auto-channel, adaptive
auto modulation, automatic transmit power control
(ATPC)
Wireless Security
WPA/WPA2 personal, WPA/WPA2 enterprise,
WACL, user isolation
Wireless QoS 4 queues prioritization on TDMA
Network Operating Modes Bridge, router iPv4, router IPv6
Network Techniques Routing with and without NAT, VLAN
WAN Protocols Static IP, DHCP client, PPPoE client
Services
DHCP server, SNMP server, NTP client, router
advertisement daemon, ping watchdog
ManagementHTTP(S) GUI, SSH, SNMP read, Telnet
Tools Site survey, link test, antenna alignment
Physical
Dimensions 185mm (length)x 185mm (width )x 81mm (height )
Weight 400 g
MountingPole mounting bracket included
P
Power Supply
12 - 24 VDC passive PoE (24 V passive PoE adapter is
included in the package)
Power Source100 – 240V AC
P C 10W
E
O T -30°C ~ +70°C
Humidity 0 ~ 90 % (non-condensing)
M
System Monitoring SNMP, Syslog, Web UI, DWMP
R
C FCC/CE
Internal Antenna
Frequency Range5.1 - 5.9 GHz
Gain20 dBi
PDual linear
C I27 dBi
VSWR<1.8
Azimuth Beam Width (H pol)10°
Azimuth Beam Width (V pol)10°
E B WR10°


TR S
Receive
Sensitivity
(dBm)
802.11
ac
(40MHz)
400
Mbps
360
Mbps
300
Mbps
270
Mbps
240
Mbps
180
Mbps
120
Mbps
90
Mbps
-70-72-76-78-80-84-87-92
60
Mbps
30
Mbps
-94-95
802.11
ac
(80MHz)
866
Mbps
780
Mbps
650
Mbps
585
Mbps
520
Mbps
390
Mbps
260
Mbps
195
Mbps
-64-66-70-72-74-78-81-85
130
Mbps
65
Mbps
-88-90
Output
Power
(dBm,
combined)
802.11
ac
(40MHz)
400
Mbps
360
Mbps
300
Mbps
270
Mbps
240
Mbps
180
Mbps
120
Mbps
90
Mbps
2627282930303030
60
Mbps
30
Mbps
3030
802.11
ac
(80MHz)
866
Mbps
780
Mbps
650
Mbps
585
Mbps
520
Mbps
390
Mbps
260
Mbps
195
Mbps
2425252627282829
130
Mbps
65
Mbps
2929


Dimensions (mm)
