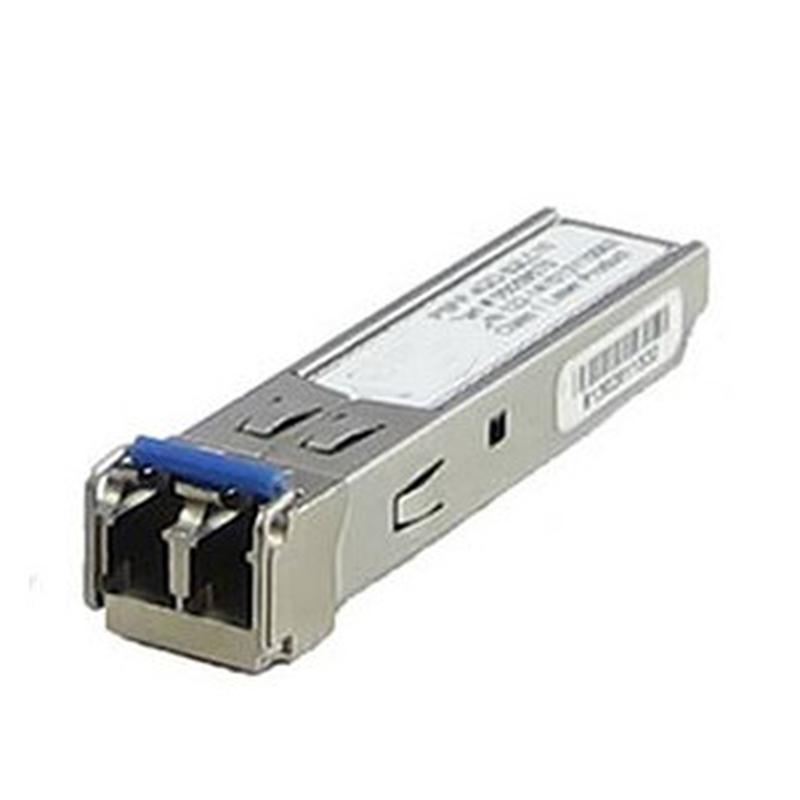

PFT3950
Opis
Moduł optyczny 155M 850nm; 500m; multi-mode...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
MULTI-MODE MODULE
Optical modules complying with SFP (Small Form-factor
Pluggable) standard are devices converting electrical signal
to the optical form and optical signal to the electrical form.
Usage media converters with the ability to exchange SFP
modules is particularly preferred because of its versatility,
for example if you change the network confguration rather
than replace the entire unit or add new media converters
simply select the appropriate SFP module. Modules
complying with most of switches and routers with SFP
socket.
SPECIFICATION
Transmission protocols :
IEEE 802.3u 100Base-FX
Fiber type :
Multi-mode fber
Maximal transmission range :
0.5 km
Transfer rate :
max. 1.25 Gb/s
Number of used fbers :
2
Optical connectors :
2 x LC
Light source / optical wavelength :
Laser FP - 850 nm (Tx / Rx)
Power supply :
3.3 V DC
Operation temp :
40- °C ... 85 °C
Weight :
0.02 kg
Manufacturer / Brand :
DAHUA
PFT3950
Connection diagram:
1. switch with SFP socket
2. SFP module
3. Fiber optic transmission (max. 0.5 km)
PACKAGE
Dimensions (L x W x H): 60x15x10 mm
Gross Weight: 0.02 kg
