PFS4228-24P-370
Opis
Przełącznik 24-portowy PoE, 2x 10/100/1000 Base-T, 2x 1000 Base-X, 24x 10/100 Base-T...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

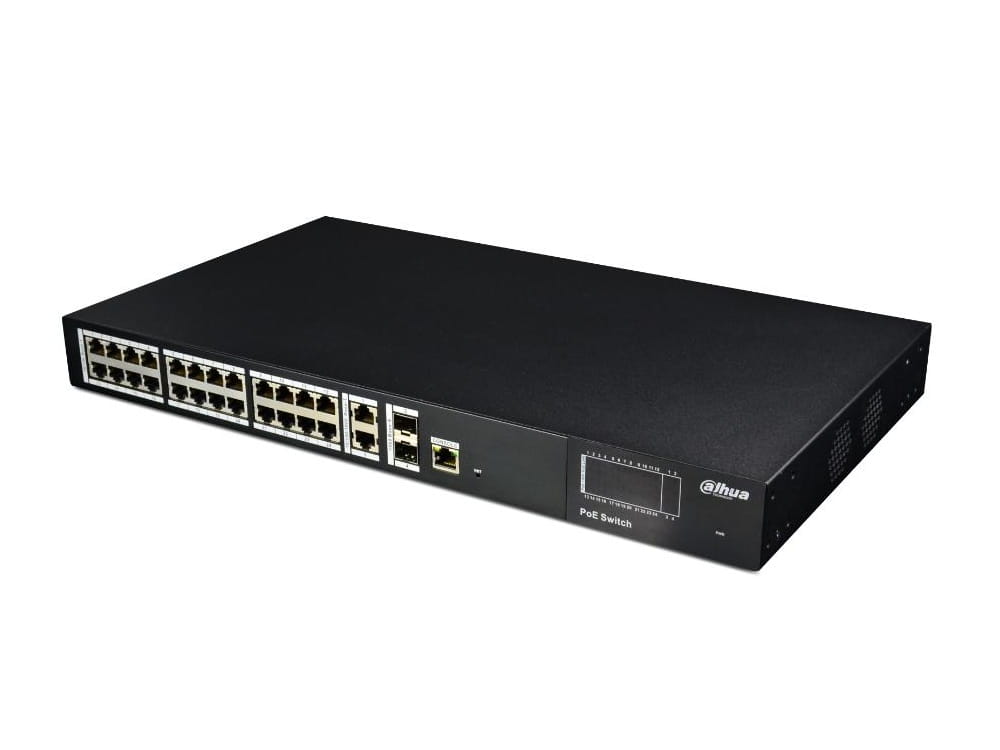

PFS4228-24P-370
24-Port PoE Switch
Product Overview
DH-PFS4228-24P-370 is a 24-port managed PoE Ethernet switch, which supports
IEEE802.3 af/at standard. It supports Layer 2 network management and PoE management
based on web and provides high-speed data forwarding. It is widely used in security
surveillance, network engineering projects and so on.
Features
> Two-layer network management PoE switch
> Support IEEE802.3af, IEEE802.3at standard
> Support spanning tree protocol STP/RSTP
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Support one-key recovery of IP address & user password
Technical Specifications
Model PFS4228-24P-370
Ethernet ort
2*10/100/1000 Base-T、
、
()
x≤,≤
、
x
-
~2
x
﹣℃~℃
x
PFS4228-24P-370
Dimension(WxDxH) 442mm x263mm x44.5mm
Service Characteristics
Accessories
Model
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
Model DH-PFS4228-24P-370
System
Username / password: admin/admin
IP Address :192.168.1.200/24
PoE Budget 370W
MAC Table 16K
VLAN
Port-based VLAN
802.1Q Standard VLAN
Spanning Tree
STP
RSTP
Port Aggregation Link aggregation
Mirroring Support many-to-one port mirroring
Flow Control
Support half-duplex based on back pressure type control;
Support full duplex based on PAUSE frame;
Multicast IGMP Snooping
Security Features
Hardware supports IP+MAC binding based on port;
Support IEEE802.1x port authentication
System Maintenance
Support the configuration file upload/download
Support the updated packet upload
Support system logs
Network Management WEB(http and https protocol)
