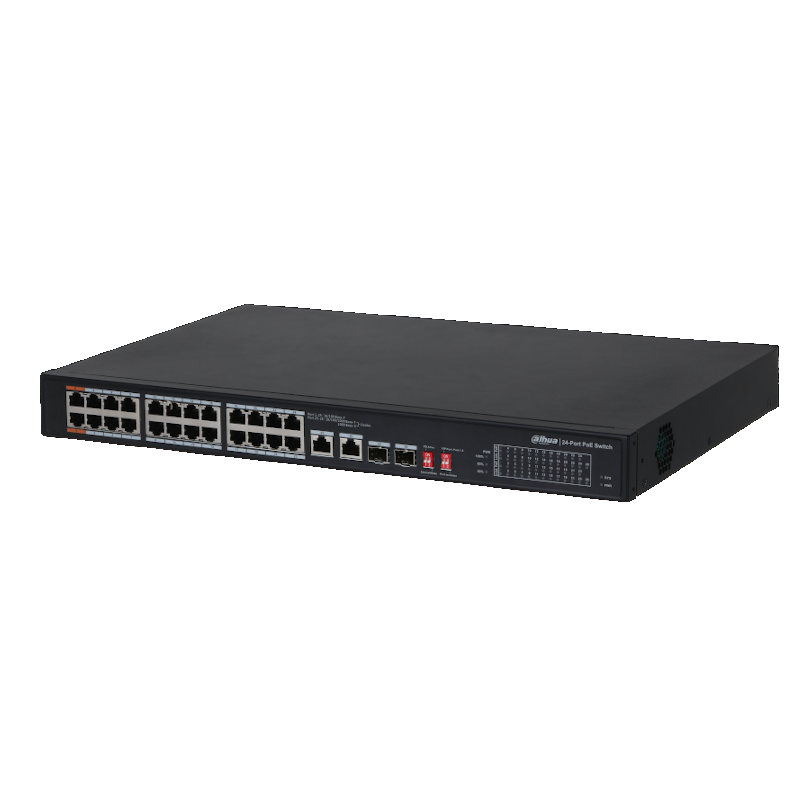

PFS3226-24ET-240

Przełącznik niezarządzalny PoE. Prosta instalacja - plug & play. 24 porty PoE/PoE+, 10/100Mb/s (RJ45, IEEE802.3af, IEEE802.3at). Dodatkowo pierwszy i drugi port obsługuje Hi-PoE do 60W. 2 Porty 10/100/1000Mb/s (RJ45, uplink). 2 Porty 1000Mb/s (SFP, uplink). Wysokowydajny procesor zapewnia transmisję obrazu bez opóźnień. Obsługuje kontrolę poboru mocy, wł/wył zasilania PoE na porcie, tryb PD alive. Wsparcie trybu 250m long-distance. Możliwość izolowania portów, QoS dla portów VIP. Zabezpieczenie przed przeciążeniem. Budżet mocy do 240W, zasilanie AC 100 ~ 240V....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DH-PFS3226 -24ET-240

Desktop PoE Switch | DH-PFS3226-24ET-240
System Overview
DH-PFS3226-24ET-240 is a 100 Mbps dual-port uplink unmanaged PoE
switch. It supports functional DIP switch which provides port isolation,
long distance power supply, PoE watchdog and QoS control. Featured
with Gigabit uplink optical ports, it meets the need of long distance
transmission.
Scene
Applicable to small and micro-scale monitoring networks such as office
desktops, schools, hotels, supermarkets, hospitals.

Technical Specification
Performance
Layer
Layer 2
ManagedNo
Switching Capacity8.8 Gbps
Packet Forwarding Rate6.5472 Mpps
Packet Buffer Memory
4 Mbit
MAC Table Size8K
Standards Compliance
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,
IEEE802.3z
Hardware Feature
Standard Power SupplyYes
PoEYes
Ethernet Port24
Optical Port2
Ethernet Port Rate100 Mbps

Optical Port Rate1 Gbps
Number of Bussiness Card
Slots
Port 1-24: 24 x RJ45 10/100Mbps
Port 25–26: 2 x RJ45 10/100/1000 Mbps (uplink)
Port 25–26: 2 x SFP 1000 Mbps (uplink) (combo)
Power Supply100V AC–240V AC
Operating Temperature–10°C to 55°C (14°F to 131°F)
Operating Humidity10%–90%
Storage Humidity5%–95%
Power Consumption
Idling: 5W
Full load: 240W
PoE
PoE StandardIEEE802.3af, IEEE802.3at, Hi-PoE
PoE BudgetPort 1-2≤60W, Port 3-24≤30W, total≤240W
PoE Pin AssignmentPoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE
Transmission
Yes
Function
VLANPort Isolation
QoSYes
System MaintenancePD Alive
General
ESD
Air discharge: 8kV
Contact discharge: 6kV
Thunderproof
Common mode: 4kV
Differential mode: 2kV
Dimensions440 mm x 300 mm x 44 mm (17.32" x 11.81" x 1.73")
Packaging Dimensions527 mm x 412 mm x 110 mm (20.75" x 16.22" x 4.33")
Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
· Intelligent PoE
· PD Alive(PoE Watchdog)
· Long Distance PoE Transmission
· Smooth Transmission
· Wide Working Temperature: –10 to 55°C (14°F to 131°F)
· Port Isolation

250m

PoE atchdog
