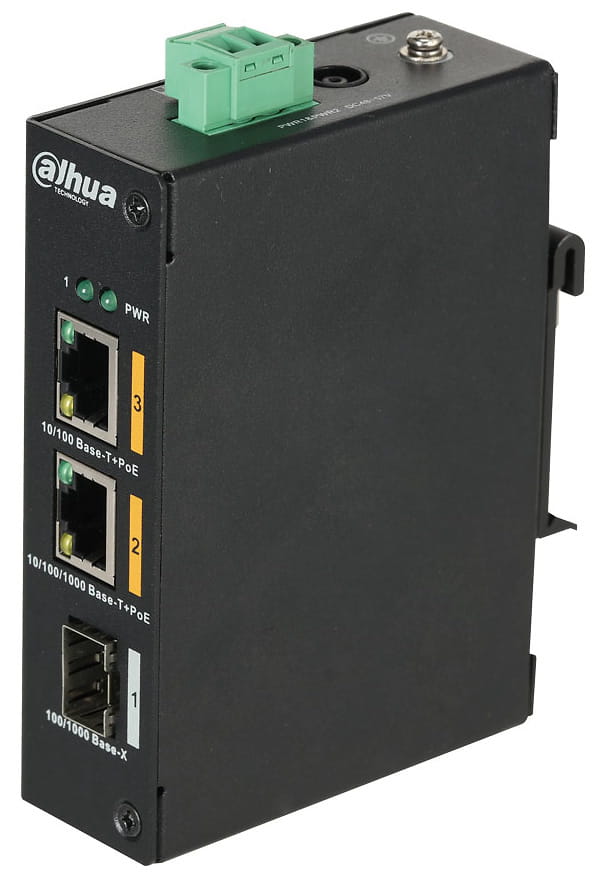

PFS3103-1GT1ET-60
Opis
Przełącznik 3-portowy niezarządzalny warstwy 2 Interfejsy • 1x Port 10/100/100 Base-T, • 1x 100/1000 Base-X, • 1x SFP 100/1000M (uplink) Protokoły: IEEE802.3af, IEEE802.3at, Hi-PoE Wymiary: 105 × 75 × 30 mm, Zasilanie: DC 48-57 V...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Produkt zamienny: PFS3103-1GT1ET-60-V2
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DH-PFS3103-1GT1ET-60
www.dahuasecurity.com
Features
· Layer-two Unmanaged PoE Switch
· Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
standards
· MAC auto study and aging, MAC address list capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 2 and 3 support Hi-PoE 60W power supply
· Adopts metal structure
· High protection grade, supports common mode 4KV,
differential mode 2KV
· Supports DC 48V-DC 57V power supply and dual power
backup
· Supports -30°C~65°C operating temperature
DH-PFS3103-1GT1ET-60
3-Port Switch with 2-Port PoE
Technical Specification
ModelDH-PFS3103-1GT1ET-60
Ethernet Port
1*RJ45 10/100M (PoE)
1*RJ45 10/100/1000M (PoE)
1*SFP 100/1000M (uplink)
PoE Power Consumption
Port2 and port 3 support Hi-PoE 60W
Total≤60W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity6.8Gbps
Packet Forwarding Rate3.12Mpps
Packet Buffer Memory1Mb
Application Humidity10%~90%
PowerDC48-57V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-30°C~65°C
Dimension(WxDxH)105mm x75mm x30mm
Dimensions (mm)
Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
