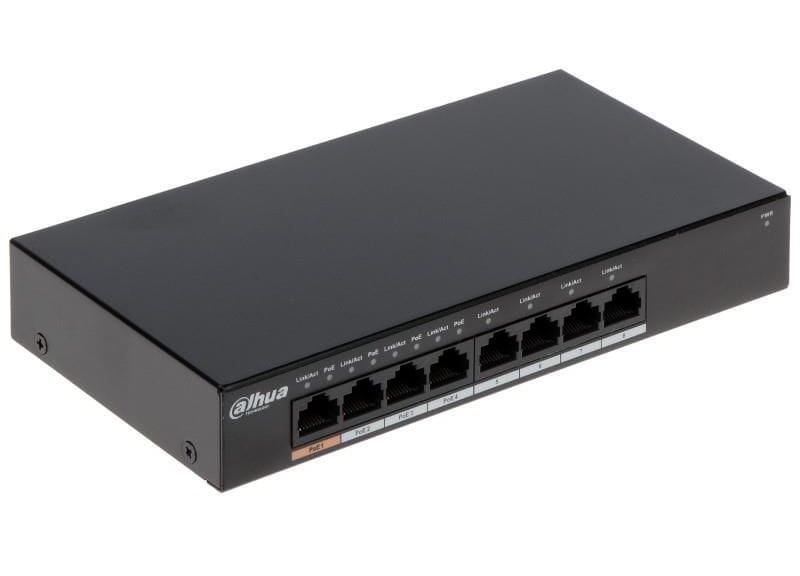

PFS3008-8GT-60
Opis
Przełącznik 8-portowy niezarządzalny Interfejsy • 4x 10/100/1000M Base-T（zasilanie PoE） • 4x 10/100/1000M Base-T • Port1 ≤ 60W, port 2-4 ≤30 W, załkowicie ≤ 60 W • IEEE802.3af/IEEE802.3at/Hi-PoE • Zasilanie: DC 48 ~ 57V • Wymiary: 190×100×30 mm • Waga: 480 g...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
PFS3008-8GT-60
Product Overview
PFS3008-8GT-60 is a 8-port Gigabit Ethernet switch, which provides
4*10/100/1000Mbps PoE port, 4*10/100/100Mbps Ethernet ports and
supports Hi-PoE power supply.
www.dahuasecurity.com
Features
· Layer two commercial switch
· Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
· MAC auto learning, aging, MAC address capacity is 8K
· Supports MDI/MDIX self-adaptation
· RJ45 port supports 10/100/1000 Mbps self-adaptation
· Supports IEEE802.3af and IEEE803.3at power supply
standards
· Adopts metal enclosure
· Supports Hi-PoE 60W
· Supports DC 48-57V power supply
PFS3008-8GT-60
8-Port Gigabit Ethernet PoE Switch with 4-Port PoE
Technical Specification
ModelPFS3008-8GT-60
Ethernet Port
4*10/100/1000Mbps PoE ports
4*10/100/1000Mbps ports
PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity20Gbps
Packet Forwarding Rate11.9Mpps
Packet Buffer Memory1.5Mb
MAC Table Size8K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V power adapter
Lightning Protection
Common Mode 2KV
Differential Mode 0.5KV
Working Temperature-10°C~+55°C
Weight0.49kg
Dimension(WxDxH)190mmx100mmx30mm
