PFS3008-8ET-60

Przełącznik 8-portowy PoE Interfejsy • 4x 10/100 Base-T, • 4x 10/100 Base-T (PoE) Standard: PoE/PoE+/Hi-PoE Maksymalnie na port ≤60W, Razem ≤60W Szybkosć wewnętrzna:1.8G Szybkość przełączania pakietów : 1.19Mpps Zasilanie: 48-57V Waga: 480g...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

PFS3008-8ET-60

Product Overview

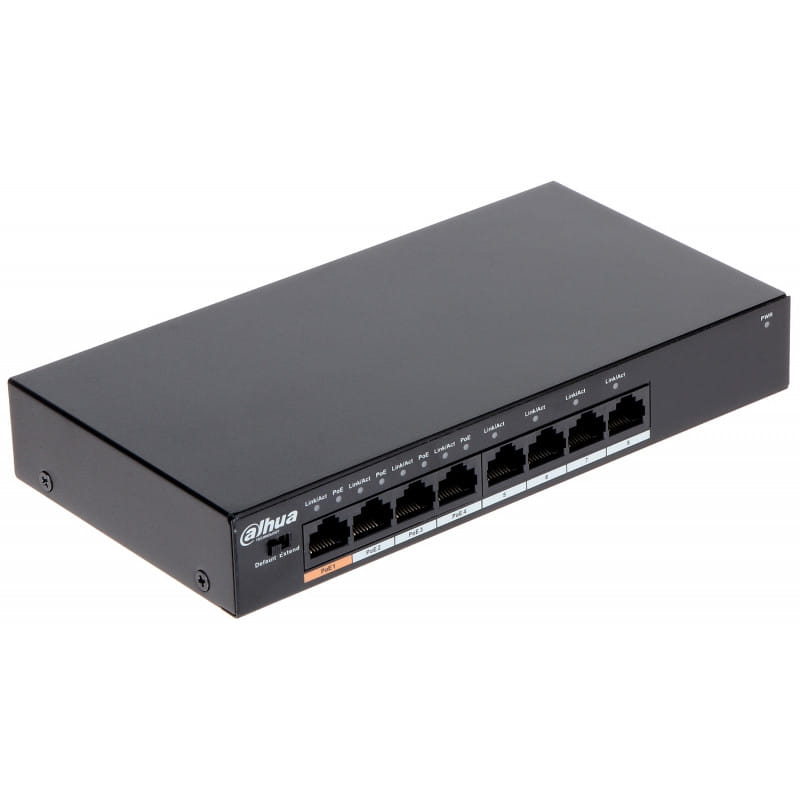

PFS3008-8ET-60 is a 8-port fast Ethernet switch, which supports 250
meters long distance PoE transmission. It provides 4*10/100Mbps PoE
ports and 4*100 Mbps Ethernet ports. The product is equipped with
two transmission modes (Default/Extend), which are controlled by DIP
switch.
www.dahuasecurity.com
Features
· Layer two commercial switch
· Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
· MAC auto learning, aging, MAC address capacity is 2K
· Supports MDI/MDIX self-adaptation
· RJ45 port supports 10/100 Mbps self-adaptation
· Supports IEEE802.3af and IEEE803.3at power supply
standards
· Adopts metal enclosure
· Supports Hi-PoE 60W
· Supports DC 48-57V power supply
PFS3008-8ET-60
8-Port Fast Ethernet PoE Switch with 4-Port PoE

Technical Specification
ModelPFS3008-8ET-60
Ethernet Port
4*10/100 Mbps PoE ports
4*10/100Mbps ports
PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W
PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity1.8Gbps
Packet Forwarding Rate1.19Mpps
Packet Buffer Memory768Kb
MAC Table Size2K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V power adapter
Lightning Protection
Common Mode 2KV
Differential Mode 0.5KV
Working Temperature-10°C~+55°C
Weight0.48kg
Dimension(WxDxH)190mmx100mmx30mm
