PFM923I-6UN-C

Przewód UTP CAT6 305m, średnica żyły 4Px053 ±0,01 mm...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Cable Series | DH-PFM923I-6UN-C





www.dahuasecurity.com
DH-PFM923I-6UN-C

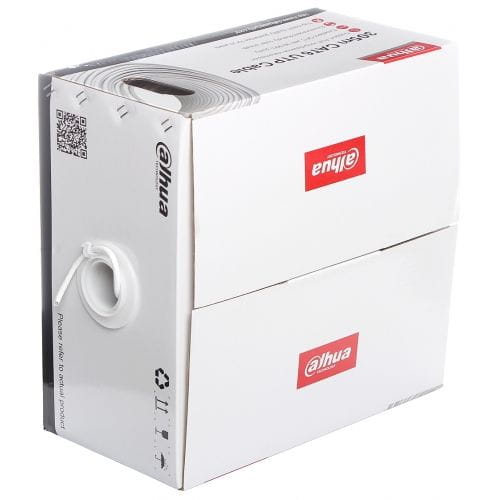

305m UTP CAT6 LSZH Cable










Features
* 305m UTP CAT6;
* Support PoE long-distance transmission;
* Excellent OFC with 99.97% OFC (oxygen free copper) purity;
* Environmentally-friendly LSZH outer sheath, meet the CPR E class;
* Top-notch quality guarantee for 10 years.





Cable Series | DH-PFM923I-6UN-C


www.dahuasecurity.com
Technical Specifications
Model DH-PFM923I-6UN-C
Structure
Conductor
Material OFC(oxygen free copper)
Structure 4P*0.53±0.01mm
Insulation
Material HDPE
Min. average thickness 0.21mm
Diameter 0.95mm±0.05mm
Color(4 Pairs)
White/Blue, Blue; White/Orange, Orange; White/Green, Green;
White/Brown, Brown
Rip Cord Yes
Jacket
Material LSZH, meet the requirement of CPR E class
Min. average thickness 0.43mm
Diameter 6.0±0.5mm
surface Smooth, full and tight
Color White
General
Length 305m(1000.66ft)
Packaging dimension 412mmx412mmx215mm (16.22”x16.22”x8.46”)
Weight (with packaging) 12.5kg(27.56lb)
Mechanical Properties
Insulation
Tensile strength ≥16MPa
Elongation at break ≥300%
Peeling property No damage to insulation or conductor
Jacket
Tensile strength
Before aging: ≥10.0MPa
After aging: ≥8.0MPa
Elongation at break
Before aging: ≥125%
After aging: ≥100%
Aging condition 100℃*24h*7d
Peeling property
No damage to insulation, cold bending (-20C *4h), the outer diameter
of the cable is 8 times, without cracking.
Electrical Performance (20℃)
Characteristic Impedance (1-250MHz) 100±15Ω
DC Resistance ≤9.38Ω/100m
Max. Unbalance Rate of Line Pairs’ Direct
Current
≤5%
Time Delay ≤45ns/100m
Max. Mutual Capacitance 5.6nF/100m
Min. Insulation Resistance 5000MΩ·km

Cable Series | DH-PFM923I-6UN-C



Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com


Order Information
Type Part Number Description
Cable Series
DH-PFM923I-5EUN-C
305m UTP CAT5E LSZH cable
_Dahua brand; CPR E class
DH-PFM923I-5EU-C
305m standard UTP CAT5E LSZH cable
_Dahua brand; CPR E class
DH-PFM923I-6UN-C
305m UTP CAT6 LSZH cable
_Dahua brand; CPR E class
DH-PFM923I-6U-C
305m standard UTP CAT6 LSZH cable
_Dahua brand; CPR E class

Dimensions (mm/inch)




Package Information
* 305m UTP CAT6 LSZH cable *1
