PFM920I-5EUN-C-V2

Przewód UTP CAT5e 305m, średnica żyły 4Px0,45 ±0,01 mm, palność: IEC 60332-1-2...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Cable Series | DH-PFM920I-5EUN





www.dahuasecurity.com
DH-PFM920I-5EUN

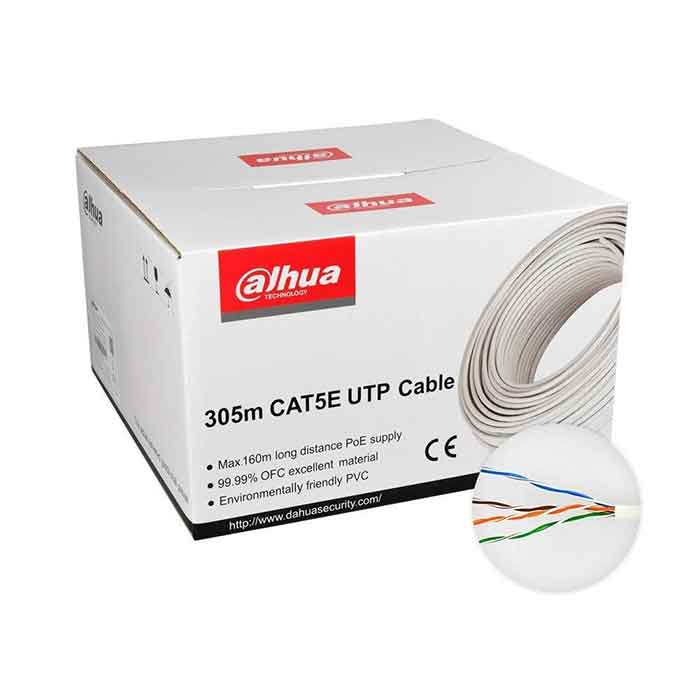

305m UTP CAT5E Cable












Features
* 305m UTP CAT5E
* Max.160m long distance PoE supply
* 99.99% OFC(oxygen free copper) Excellent material
* Environmentally friendly PVC




Cable Series | DH-PFM920I-5EUN

www.dahuasecurity.com

Technical Specifications
Model DH-PFM920I-5EUN
Conductor
Material OFC(oxygen free copper)
Composition 1/0.45
Wire gauge 0.45*4P±0.005mm
Insulation
Material HDPE
Min. average thickness 0.2mm
Diameter 0.83mm±0.03mm
Color(4 Pairs)
Orange, white/orange; green, white/green;
blue, white/blue; brown, white/brown
Lay of twisted conductors 140mm
Jacket
Material PVC
Min. average thickness 0.5mm±0.05mm
Diameter 4.7mm
Color Orange and white are optional
Length 305m (1000.66ft)
Max. DC resistance of single conductor 12 Ω/100m
Max. unbalance rate of line pairs’ direct current
resistance
12%
Min. insulation resistance 5000MΩ·km
Max. mutual capacitance 5.6NF/100m
Max. attenuation 22(dB/100m, 100MHz)
General
N.W. 7.8kg
Packaging dimension 360mmx360mmx220mm
Weight (with packaging) 8.6kg

Order Information
Type Part Number Description
Cable Series DH-PFM920I-5EUN
305m UTP CAT5E cable
_Dahua brand; Distribution







Cable Series | DH-PFM920I-5EUN


Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com



Dimensions (mm/inch)




Package Information
* 305m UTP CAT5E cable *1
