PFM810
Opis
Konwerter wideo/audio do przesyłu kablem koncentrycznym, wsparcie CVI/TVI/AHD w rozdzielczośc 720p/1080p, Zasięg do 400 m Materiał: ABS kolor: czarny Wymiary: 78*29*22mm Waga: 153g Certyfikaty: CE/FCC...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
HDCVI Accessory Series | PFM810
www.dahuasecurity.com

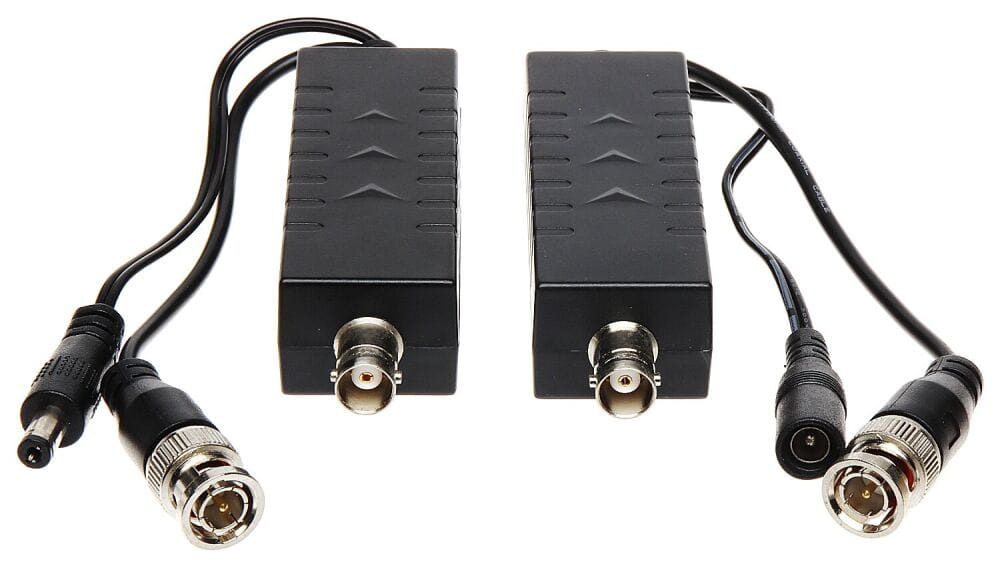

PFM810
POC Transceiver
Features
* Power supply: Input voltage DC24-36V, can provide DC12V max. 9W power supply to remote cameras,
simplify engineering wiring;
* Transmission effect: real-time transmission video, no delay, strong anti-interference;
* Transmission distance: max. 400m;
* Main functions: use single coaxial cable real-time transmit 1-ch HD video signal and 1-ch DC power;
* Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
HDCVI Accessory Series | PFM810
www.dahuasecurity.com
Technical Specifications
Model PFM810
Properties
Transmission Signal 1-channel HDCVI/HDTVI/AHD/CVBS
Transmission Distance 720P/1080P: max. 400m
Power Supply
Cable Type Input Voltage Distance Output Power
75-3
DC24
0-100m DC12V 4W
100-150m DC12V 3W
DC36
0-100m DC12V 9W
100-200m DC12V 6W
RG59(75-4)
DC24
0-100m DC12V 5W
100-250m DC12V 3W
DC36
0-150m DC12V 9W
150-300m DC12V 6W
RG6(75-5)
DC24
0-100m DC12V 6W
100-300m DC12V 3.5W
300-400m DC12V 3W
DC36 0-400m DC12V 7W
Category Type Coax 75-5(RG6)/75-4(RG59)/75-3
Video Transmission Properties
Coaxial Video Connector BNC-M
Connection Way BNC
Compatible Format HDCVI/HDTVI/AHD/CVBS
Resolution 720P/1080P
Anti-interference >60db
Protection
ESD
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code)
Per: IEC61000-4-5
UTP Cable Connector 2KV(different-code), 4KV(common-code)
Per: IEC61000-4-5
Impedance
Coax 75 ohms
Physical Properties
Dimension(LxWxH) 77mmx28mmx22mm (3.03”x0.87”x1.1”)
Shell ABS
Color Black
N.W. 153g(0.34lb)
Stability
MTBF >10000H
HDCVI Accessory Series | PFM810
Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Environmental
Operating Temperature -10℃~+55℃(+14℉~+131℉)
Storage Temperature -20℃~+70℃(-4℉~+158℉)
Humidity 0~95%(non-condensing)
Order Information
Type Part Number Description
HDCVI Accessories
PFM810 POC Transceiver
DH-PFM811-C POC transmitter-PD end
PFM811-C POC transmitter-PD end
DH-PFM811-4CH POC transmitter-PSE end
PFM811-4CH POC transmitter-PSE end
Dimensions (mm/inch)
Application
Package Information
* POC Transceiver PFM810 *1
