PFM710

Konwerter umożliwający transmisje obrazu za pośrednictwem kabla sieciowego UTP. Wejście VGA, Wyjście RJ45 Materiał: Aluminum kolor: czarny Wymiary: 85*64*28mm Waga: 111g/110g...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
Features
· Power supply: No need additional power supply.
· Transmission effect: Real-time transmission video without compression, no delay, strong anti-interference.
· Transmission distance: VGA video signal high fidelity transmission 75M (max)
· Main functions: Use single UTP (CAT-5E and CAT-6) transmit 1-ch video, lower cost.
· Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
· Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to
install.

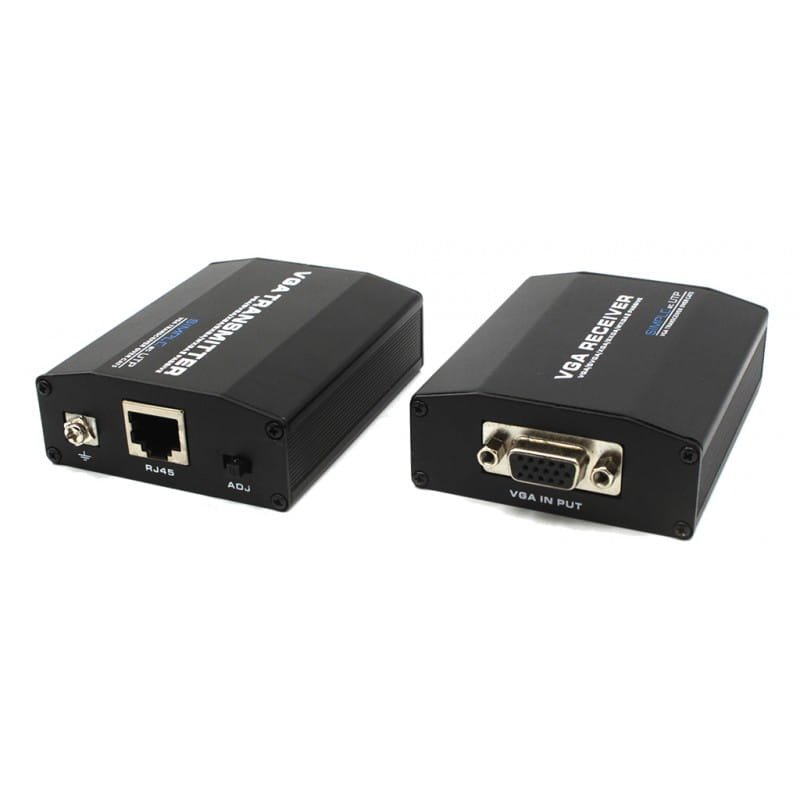

Video Extender Series | PFM710
PFM710
VGA Extender


Video Extender Series | PFM710

www.dahuasecurity.com

Technical Specification
ModelDH-PFM710
Properties
Transmission Signal
1 channel
Transmission Distance
Max. 75m (246.06ft)
Video Transmission Properties
Video Signal Input InterfaceFemale 15, VGA port
Video Input InterfaceFemale 15, VGA port
Twisted-pair Video Transmission PortRJ45 port
Video Signal Processing Bandwidth<120MHz(-3db)
Synchronous Signal Bandwidth1k-200kHz
Adjustment
Transmitter 2 modes
Receiver3 modes
Protection
ESD
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2 1995(GB/T 17626.5)
Anti-thunder
1KV
Per: IEC61000-4-5 1995(GB/T 17626.5)
Stability
MTBF>5000H
Physical Properties
Dimension(L*W*H)
Transmitter: 85mmx64mmx28mm (3.35"x2.52"x1.1") (port length included)
Receiver: 85mmx64mmx28mm (3.35"x2.52"x1.1")
ShellAluminum
ColorBlack
N.W.
Transmitter: 111g (0.24lb)
Receiver: 110g (0.24lb)
Environmental
Working Temperature 0℃~+55℃(+32℉~+131℉)
Storage Temperature-20℃~+80℃(-4℉~+176℉)
Humidity 0~95%(non-condensing)


Dimensions (mm/inch)
Video Extender Series | PFM710

www.dahuasecurity.com

Certification
certification
CE (EN55022, EN55024)
FCC (47 CFR PART 15 & ANSI C63.4 )

Order Information
TypePart NumberDescription
Video Extender
PFM710 VGA extender
PFM700-4KHDMI extender_Neutral, European standard
PFM700-4KHDMI extender_Neutral, American standard
PFM700-4KHDMI extender_Neutral, British standard
PFM700-EHDMI extender_Neutral, European standard
PFM700-EHDMI extender_Neutral, American standard
PFM700-EHDMI extender_Neutral, British standard


Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Video Extender Series| PFM710

www.dahuasecurity.com

Application

Package Information

· VGA extender PFM710 *1 (Transmitter *1, receiver *1)
· VGA cable(m-f) *1
· User manual *1
