PFM320D-015
Opis
Adapter zasilania, wejście AC 100 ~ 240 V, 50/60 Hz, 0,6 A, wyjście DC 12 V (+7%, -3%), max 1,5 A, temperatura pracy -30°C~+70°C, waga 95g, wymiary 77,3 x 51,9 x 30 mm, kolor biały...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
Power Series | DH-PFM320D-015
www.dahuasecurity.com

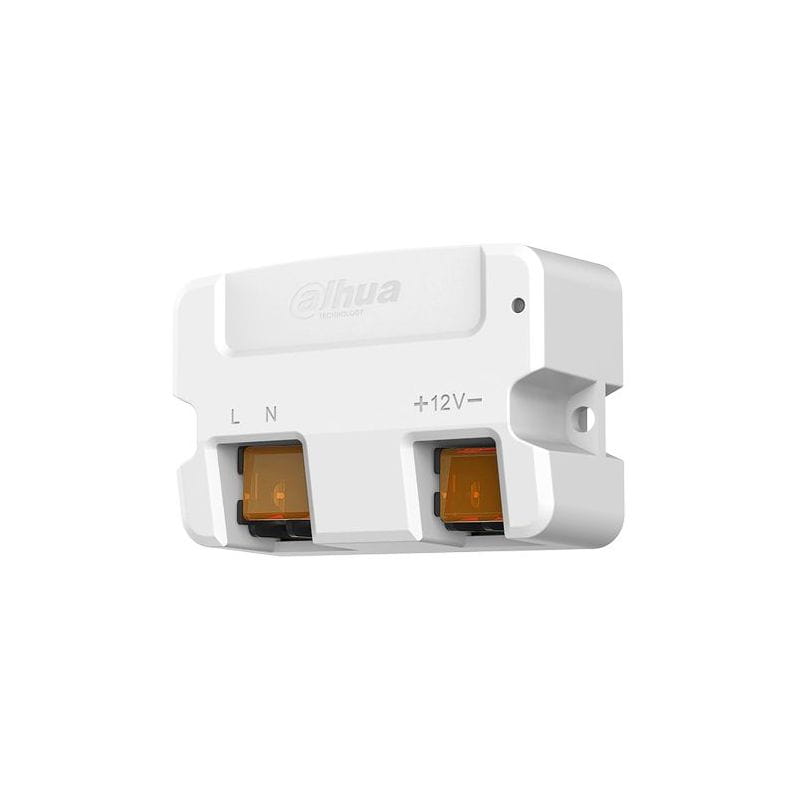

DH-PFM320D-015
DC12V1.5A Power Adapter
Features
* Easy installation
* Support working with indicator light
* Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power
supply can be up to 100% at these temperatures
* Accurate overcurrent, overvoltage protection
Power Series | DH-PFM320D-015
www.dahuasecurity.com
Technical Specifications
Model DH-PFM320D-015
Electrical Specification
Rated input AC100~240V, 50/60Hz, 0.6A
Output voltage DC12V (+7%, -3%)
Output current Max. 1.5A (+70℃)
Protection/Environmental
Protection
* Surge protection, over temperature protection, over current, voltage load
protection
ESD: EN61000-4-2
+/-6kV Contact; +/-8kV Air
Surge: EN61000-4-5
Combination Wave: Common Mode ±4KV(12 ohms)
Differential Mode ±2kV(2 ohms)
Working temperature -30℃~+70℃(-22℉~+158℉)
Working humidity 5%~95% RH
Physical Properties
Weight 95g(0.21lb)
Dimension(LxWxH) 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
Installation Plane installation, can be installed in junction boxes and wall mount brackets
Color White
Input plug 2-pin plug(L/N)
Output plug 2-pin plug(+12V-)
Safety Standards
Certification CE, FCC
Order Information
Type Part Number Description
Power series
DH-PFM320D-015 DC12V 1.5A power adapter(CE/FCC)
DH-PFM321D-EN
DC12V 1A power adapter(CE/FCC/UL-VI) for cameras DH-PFM321D-BS
DH-PFM321D-US
DH-PFM320D-EN
DC12V 2A power adapter(CE/FCC/UL-VI) for cameras DH-PFM320D-BS
DH-PFM320D-US
Power Series | DH-PFM320D-015
Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Dimensions (mm/inch)
Application
* Support to be installed in some brackets, such as junction box PFA12X and wall mount bracket
PFB302S/PFB210W.
Package Information
* DC12V 1.5A power adapter DH-PFM320D-015 *1
