PFM300
Opis
Zasilacz DC 12 V, 2 A, temperatura pracy -30°C ~ +70°C, ochrona przed ogniem V0, kolor szary, wymiary 88x37x138 mm...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
Power Series | DH-PFM300
www.dahuasecurity.com
DH-PFM300

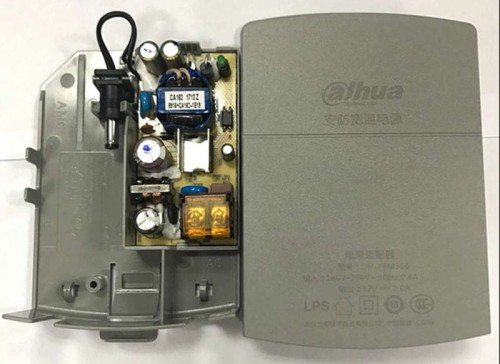

DC12V2A Power Adapter
Features
* Easy installation and wall mount, structural water-proof;
* Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power
supply can be up to 100% at these temperatures;
* With junction function for camera wiring or can place video balun with HDCVI/AHD/TVI/CVBS cameras;
* Made of PC environmental protection material, which meets “V0” fire protection;
* Accurate over current, voltage load protection.
Power Series | DH-PFM300
www.dahuasecurity.com
Technical Specifications
Model DH-PFM300
Electrical Specification
Rated input AC180~264V, 50/60Hz, 0.6A
Efficiency 82%
no-load power consumption <0.5W
Output voltage DC12V (±5%)
Output current 2A (±2%)
Protection/Environmental
Protection
* Accurate over current, voltage load protection
“V0” fire protection
Working temperature -30℃~+70℃(-22℉~+158℉)
Working humidity <90% RH
Physical Properties
Weight 160g(0.35lb)
Dimension(LxWxH) 88mmx37mmx138mm (3.46”x1.46“x5.43”)
Installation Wall mount
Color Grey
Input Palisade terminal
Output DC output wire 60mm (interface: φ5.5xφ2.1)
Safety Standards
Certification CE
Order Information
Type Part Number Description
Power series
DH-PFM300 DC12V 2A power adapter(CE)
DH-PFM320D-015 DC12V 1.5A power adapter(CE/FCC)
DH-PFM321D-EN
DC12V 1A power adapter(CE/FCC/UL-VI) for cameras DH-PFM321D-BS
DH-PFM321D-US
DH-PFM320D-EN
DC12V 2A power adapter(CE/FCC/UL-VI) for cameras DH-PFM320D-BS
DH-PFM320D-US
Power Series | DH-PFM300
Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Dimensions (mm/inch)
Application
