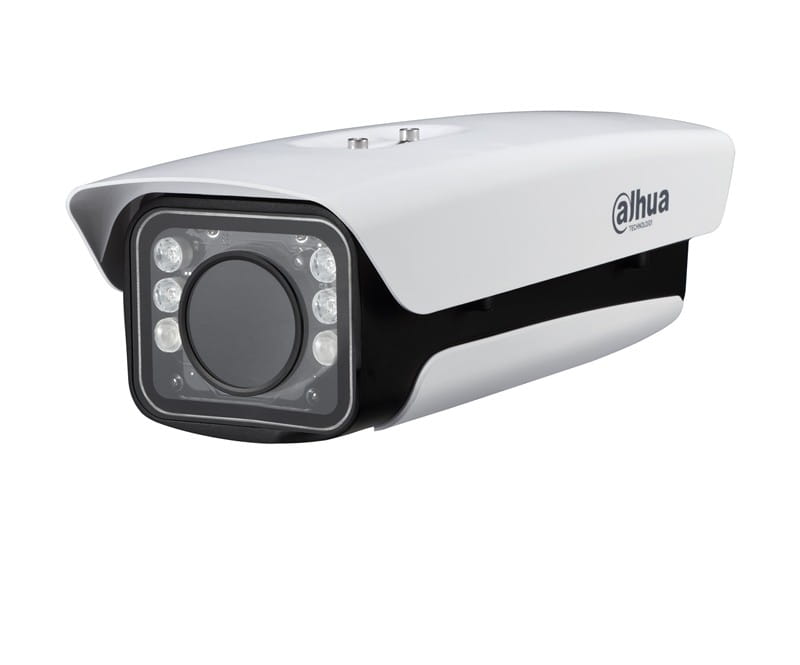

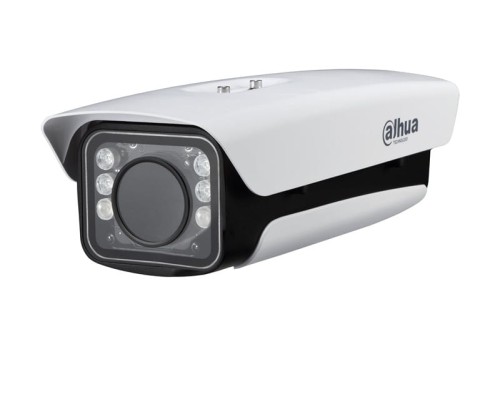

PFH610V

Obudowa dedykowana do kamer typu standard, wandaloodporna, IP66, IK10, materiał: Aluminium+Plastik, kolor: biały, wymiary: 404*164*132mm, waga: 2.2 kg...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: PFB211W

Kod produktu zamiennego: PFB211W

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Housing Series | DH-PFH610V Series





www.dahuasecurity.com

DH-PFH610V Series
14” Vandal-proof Housing



















Features
* 14” housing, provides all-weather protection for box cameras and lens;
* All-aluminum shell design, IP67, IK10, 14” housing with different function modules: Built-in heating and
cooling system, windows adopt water-proof films, 0-100m IR, built-in PoE module and support remote
control of IR light and wiper function by RS485;
* Aesthetic design.


Housing Series | DH-PFH610V Series


www.dahuasecurity.com
Technical Specifications
Model PFH610V PFH610V-H
PFH610V-H-
POE
PFH610V-IR PFH610V-IR-POE
General
Inside Dimension
(LxWxH)
215x90x83mm
(8.46”x3.54”x3.27”)
255x90x70.5mm(10.04”x3.54”x2.78”)
215x90x83mm(8.46”x3.54”x3.27”)
Window Dimension ɸ60mm(ɸ2.36”)
Operating
Temperature
Set
-30ºC ~+60ºC
(-22℉~+140℉)
-40ºC ~+60ºC(-40℉~+140℉)
Heater N/A ON: 5±5 ºC /OFF: 15±5 ºC
ON: <+5ºC(+41℉)
/OFF: ≥+5ºC(+41℉)
Cooler N/A
ON: 37±5 ºC /OFF: 20±5 ºC
ON: 5±5 ºC /OFF: 15±5 ºC
ON: 37±1ºC(98.6±33.8℉)
/OFF: 20±1ºC(68±33.8℉)
IR Distance N/A 0~100m(0~328.08ft)
RS485 Control N/A Yes, use RS484 to control IR light
Power Supply DC12V, AC24V
AC24V/3A,
DC24V
POE+
AC24V/5A,
DC24V
POE+
Power Consumption
(without camera)
N/A 45W 25.5W 67W 25W
Environmental
Operating Temperature
-30ºC ~60ºC
(-22℉~+140℉)
-40ºC ~60ºC
(-40℉~+140℉)
Humidity <90% RH
Ingress Protection IP67
Vandal Resistance IK10
Corrosion Protection N/A
Construction
Material Aluminum(case)&PC(others)
Dimension(LxWxH) 404mmx164mmx132mm(15.91”x6.46”x5.2”)
Weight 2.5kg(5.51lb) 2.7kg(5.95lb) 3.0kg(6.61lb) 3.0kg(6.61lb) 3.2kg(7.05lb)
Others
Certification CE, FCC, ICES
CE, FCC, UL,
EAC, ICES
CE, FCC
CE, FCC, UL, EAC,
ICES
CE, FCC, ICES
Applicable Model Please see “Accessory Selection”






Housing Series | DH-PFH610V Series


www.dahuasecurity.com
Order Information
Type Part Number Description
Housing Series
DH-PFH610V 14” vandal-proof housing, IP67, IK10, without any modules
PFH610V 14” vandal-proof housing, IP67, IK10, without any modules
DH-PFH610V-H 14” vandal-proof housing, IP67, IK10, heater
PFH610V-H 14” vandal-proof housing, IP67, IK10, heater
DH-PFH610V-H-POE 14” vandal-proof housing, IP67, IK10, heater, POE+
PFH610V-H-POE 14” vandal-proof housing, IP67, IK10, heater, POE+
DH-PFH610V-IR 14” vandal-proof housing, IP67, IK10, heater, IR
PFH610V-IR 14” vandal-proof housing, IP67, IK10, heater, IR
DH-PFH610V-IR-POE 14” vandal-proof housing, IP67, IK10, heater, IR, POE+
PFH610V-IR-POE 14” vandal-proof housing, IP67, IK10, heater, IR, POE+
Optional Brackets
PFB604W Wall-mount bracket
PFB600W Plane-mount bracket
PFB601W Ceiling-mount bracket
PFA162 Support three-axis rotation for housing installation
Dimensions (mm/inch)





Housing Series | DH-PFH610V Series



Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com


Application

Package Information
PFH610V
* 14” vandal-proof housing *1
* Installation instruction *1
* M20 water joint *2
* 1/4/20x8UNC screw *2
* S5.0 wrench *1
PFH610V-H
* 14” vandal-proof IR housing *1
* Installation instruction *1
* M20 water joint *2
* 1/4/20x8UNC screw *2
* S5.0 wrench *1
* Connecting line(link camera to IR driver board) *1
PFH610V-H-POE
Bag 1:
* 14” vandal-proof POE housing *1
* Installation instruction *1
* M20 water joint *2
* 1/4/20x8UNC screw *2
* S5.0 wrench *1
* Connecting line(link POE board to temperature
control board) *1
Bag 2:
* 1/4/20x8UNC screw *1
* Temperature control board *1
PFH610V-IR
* 14” vandal-proof IR housing *1
* Installation instruction *1
* M20 water joint *2
* 1/4/20x8UNC screw *2
* S5.0 wrench *1
* Connecting line(link camera to IR driver board) *1
PFH610V-IR-POE
* 14” vandal-proof IR POE housing *1
* Installation instruction *1
* M20 water joint *2
* 1/4/20x8UNC screw *2
* S5.0 wrench *1
* Connecting line(link camera to IR driver board) *1
* Network cable(link camera to POE power module)
*1
* Terminal block *1
