PFH610V-H
Opis

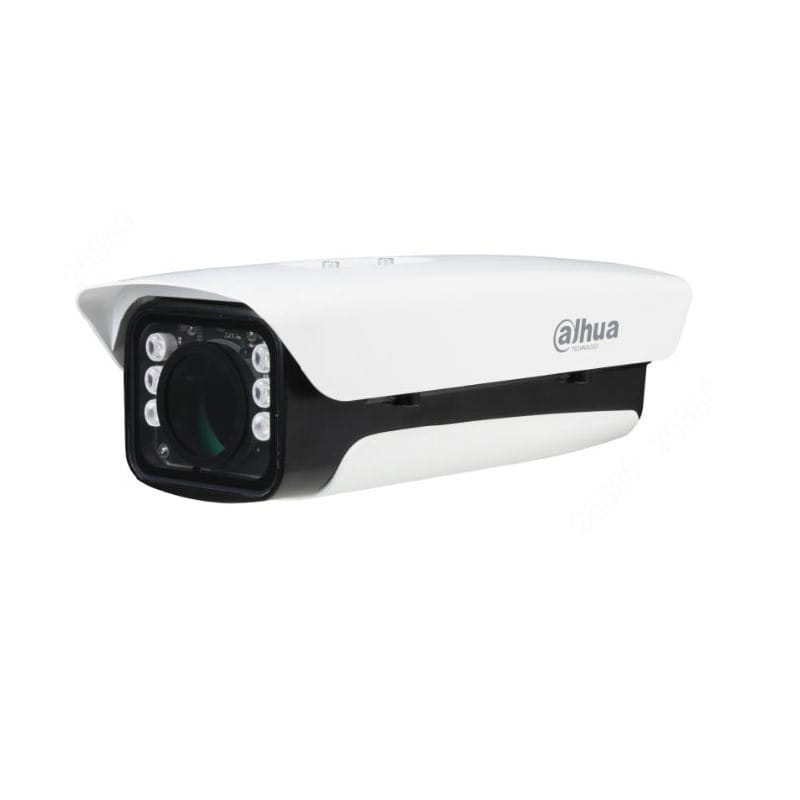

Obudowa dedykowana do kamer typu standard z wbudowaną grzałką, wandaloodporna, IP66, IK10 Zasilanie: DC12V, AC24V Materiał: Aluminium+Plastik kolor: biały Wymiary: 404*164*132mm Waga: 2.2 kg...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DH-PFH610V-H-POE
14” POE Housing
Features
* IP66, IK10 Housing
* Water-proof coating film
* Neat & Integrated design
Specifications
Model DH-PFH610V-H-POE
General
Material Aluminum(case) & PC(others)
Product Dimension 404mm(L) x 164mm(W) x 132mm(H)
Inside Dimension 255mm(L) x 90mm(W) x 70.5mm(H)
215mm(L) x 90mm(W) x 83mm(H)
Window Dimension 100(L) x 80(W)
Operating
Temperature
Set -40ºC ~60ºC
Heater ON: 5±5 ºC /OFF: 15±5 ºC
Cooler
ON: 37±5 ºC /OFF: 20±5 ºC
ON: 5±5 ºC /OFF: 15±5 ºC
Ingress Protection IP66
Humidity ≤90% RH
IR Distance N/A
Wiper N/A
Weight 2.7Kg
Power Supply POE+
Applicable Model Please see “Accessory Selection”
DH-PFH610V-H-POE
Dimensions (mm)
Application
Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email: overseas@dahuatech.com
www.dahuasecurity.com
*Design and specifications are subject to change without notice.
© 2016 Dahua Technology Co., Ltd.
