PFH101

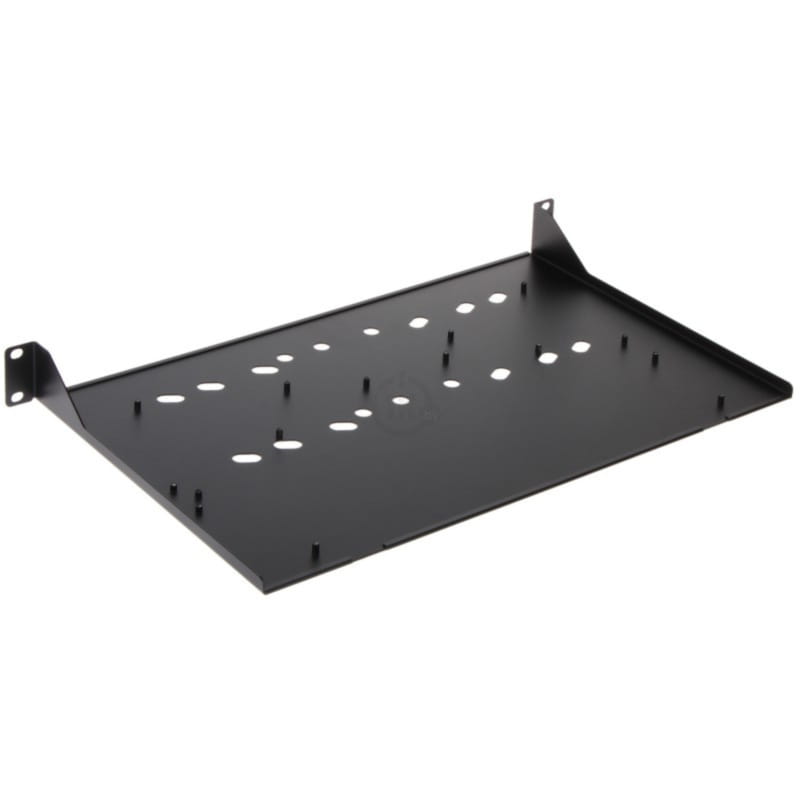

Półka do szafy rack 19”, przeznaczona do rejestratorów w formacie 1U/ Mini 1U/Compact 1U. Wymiary 482,6x281,2x43,7 mm; waga 1,4 kg; udźwig 5 kg; kolor czarny. Materiał stal SPCC. Temperatura pracy -40°C ~ +60°C...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
Features
· Material: SPCC
· High compatibility for standard storage device
· 19” standard rack mount tray

Cabinet Series | PFH101
PFH101
Rack Mount Tray


Cabinet Series | PFH101

www.dahuasecurity.com

Technical Specification
ModelDH-PFH101
General
Material
SPCC
Dimension(WxDxH)
482.6mmx281.2mmx43.7mm (19”x11.07”x1.72”)
Weight1.4kg (3.09lb)
Load Bearing5kg (11.02lb)
ColorBlack
Operating Temperature-40℃~+60℃(-40℉~+140℉)
Humidity<90% RH
Applicable Model1U/ Mini 1U/Compact 1U Storage Device


Order Information
TypePart NumberDescription
Cabinet
DH-PFC200-6U4D19” 6U rock cabinet, depth 450mm, load bearing 40kg, support wall & plane mount
DH-PFC200-6U6D19” 6U rock cabinet, depth 600mm, load bearing 40kg, support wall & plane mount
DH-PFC200-12U6D19” 12U rock cabinet, depth 600mm, load bearing 80kg (shaft: 40kg), support wall & plane mount
DH-PFC200-12U8D19” 12U rock cabinet, depth 800mm, load bearing 80kg (shaft: 40kg), support wall & plane mount
PFC200-6U4D19” 6U rock cabinet, depth 450mm, load bearing 40kg, support wall & plane mount
PFC200-6U6D19” 6U rock cabinet, depth 600mm, load bearing 40kg, support wall & plane mount
PFC200-12U6D19” 12U rock cabinet, depth 600mm, load bearing 80kg (shaft: 40kg), support wall & plane mount
PFC200-12U8D19” 12U rock cabinet, depth 800mm, load bearing 80kg (shaft: 40kg), support wall & plane mount
Tray
PFC61019” rackmount tray
PFH101 19” rackmount tray
PDU
ZZM10/PDU(8 European 250)
8 Outlet rackmount PDU power strip, max. AC250V rated input, 16A/max. 4000W output,
European
ZZM10/PDU(8 British 250)8 Outlet rackmount PDU power strip, max. AC250V rated input, 13A/max. 3250W output, British
ZZM10/PDU(8 USA 250)
8 Outlet rackmount PDU power strip, max. AC250V rated input, 10A/max. 2500W output,
North American plug input/ universal output
Fan
AA1252MB-ATRackmount cooling fan, AC220V input, 2200~2300 RPM
AA1251MB-ATRackmount cooling fan, AC110V input, 2200~2300 RPM
Caster wheel
PFC650B-60Caster wheel, steel&PU, each load bearing 60kg

Dimensions (mm/inch)
Cabinet Series | PFH101

www.dahuasecurity.com












Application

Package Information
· 19” standard rack mount tray *1
· Layer *1
· M2.5 screw *2
· M3 *5
· User manual *1
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
