PFB605W
Opis
Uchwyt ścienny; materiał aluminium; kolor biały. Wymiary 92x121,3x284,5 mm; waga 0,65 kg. Udźwig 5kg. Temperatura pracy -40°C ~ +60°C...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
www.dahuasecurity.com
Features
· Material: Aluminum;
· Wall mount bracket;
· Aesthetic design.

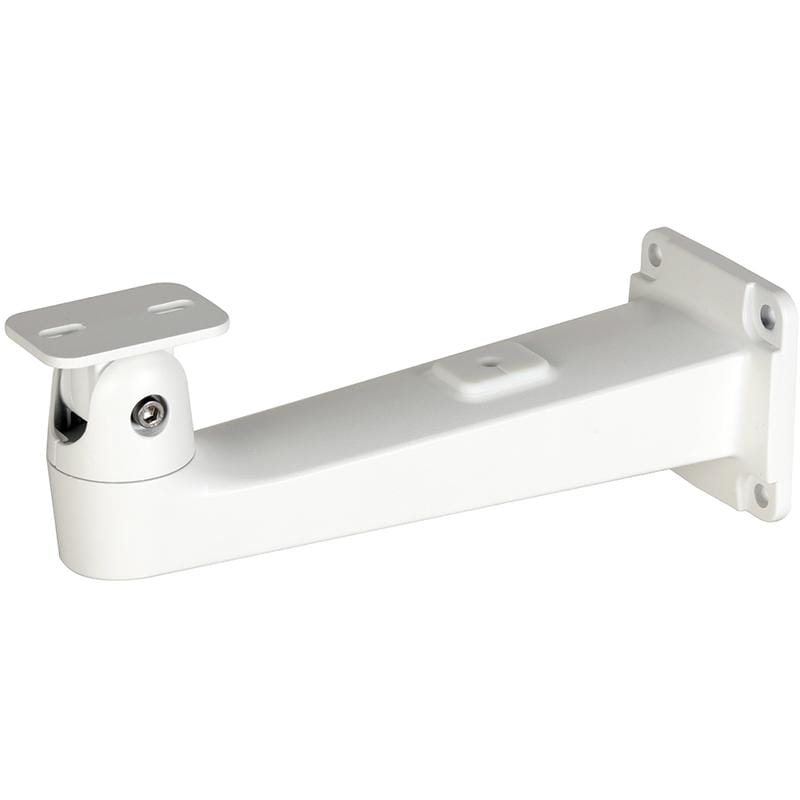

Camera Mount Series | DH-PFB605W
DH-PFB605W
Wall Mount Bracket
Camera Mount Series | DH-PFB605W
www.dahuasecurity.com
Technical Specification
ModelDH-PFB605W
General
Material
Aluminum
Dimension (W x H x D)
92.0mmx121.3mmx284.5mm (10.39”x3.94”x5.75”)
Weight0.65kg(1.23lb)
Load Bearing5kg(8.82lb)
Installation
Wall mount
Color
White
Operating Temperature
-40℃~60℃(-40℉~+140℉)
Humidity0~90% RH
Applicable ModelReplace PFB602W
Ordering Information
TypePart NumberDescription
Camera Mount seriesDH-PFB605W Wall mount bracket
Dimensions (mm/inch)
Package Information
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Camera Mount Series | DH-PFB605W
www.dahuasecurity.com
Application
· Wall mount bracket DH-PFB605W *1
· M6x14 screw *2
· 1/4-20 screw *2
· S5.0 wrench *1
