PFB410W
Opis

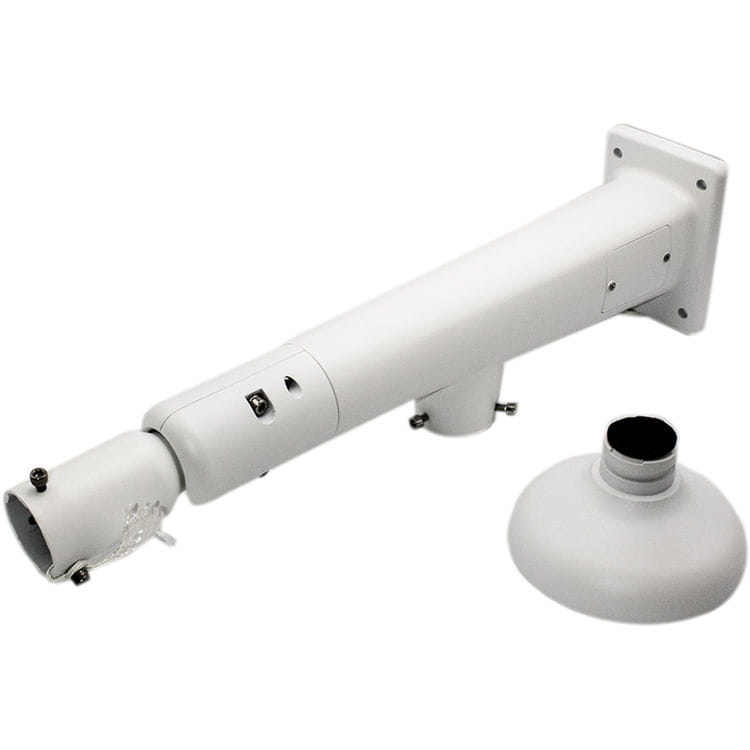

Wspornik zintegrowany do kamer typu fisheye, wykonany z aluminium, o kolorze białym. Temperatura pracy -40°C ~ +60°C....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
Camera Mount Series | DH-PFB410W
www.dahuasecurity.com
DH-PFB410W
Fisheye-PTZ Integrated Bracket
Features
* Neat & Integrated design, wall mount and hidden line design.
* Material: Aluminum.
* Support linkage scheme between fisheye and speed dome, integrated installation.
* Multi-dimensional adjustment, able to meet Omni-directional observation requirements from
different angles.
* Safety rope hook attached, secure and reliable.
* Maintenance cover board attached, convenient operation.
Поставщик систем безопасности TELECAMERA.RU
Camera Mount Series | DH-PFB410W
www.dahuasecurity.com
Technical Specifications
Model DH-PFB410W
General
Material Aluminum
Dimension
Rotation angle 0°: 651.6mmx164.8mmx154.9mm (25.7”x6.5”x6.1”)
Rotation angle 88°: 555mmx236.9mmx154.9mm (21.8”x9.3”x6.1”)
Adjustment angle (Vertical) 0°~88°
Adjustment angle (Horizontal) 0°~360°
Load Bearing
Fisheye: 1kg (2.2lb)
PTZ: 7kg (15.43lb)
Weight 2.8kg (6.17lb)
Color White
Operating Temperature -40ºC ~60ºC(-40℉~+140℉)
Humidity 0~90% RH
Order Information
Type Part Number Description
Camera mount
DH-PFB410W
Fisheye-PTZ integrated bracket
_ Dahua brand
PFB410W
Fisheye-PTZ integrated bracket
_Neutral, no brand
Dimensions (mm/inch)
Поставщик систем безопасности TELECAMERA.RU
Camera Mount Series | DH-PFB410W
Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Application
Package Information
* Integrated bracket *1
* Fisheye adapter plate *1
* Application manual *1
* Wrench *1
Package data
Box Dimension 637mmx207mmx215mm (25.1”””
”””
