PFA153

Adapter słupowy dużego obciążenia; materiał aluminium + stal; kolor biały. Wymiary 359x60x213 mm; waga 5 kg. Udźwig 30kg. Średnica słupa 150 ~ 300 mm. Temperatura pracy -40°C ~ +60°C...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
Features
· Material: aluminium & stainless
· High load bearing capacity
· Aesthetic design, double-sided installation
· High compatibility with speed domes , PTZ, outdoor surveillance box, etc.

Camera Mount Series | DH-PFA153
DH-PFA153

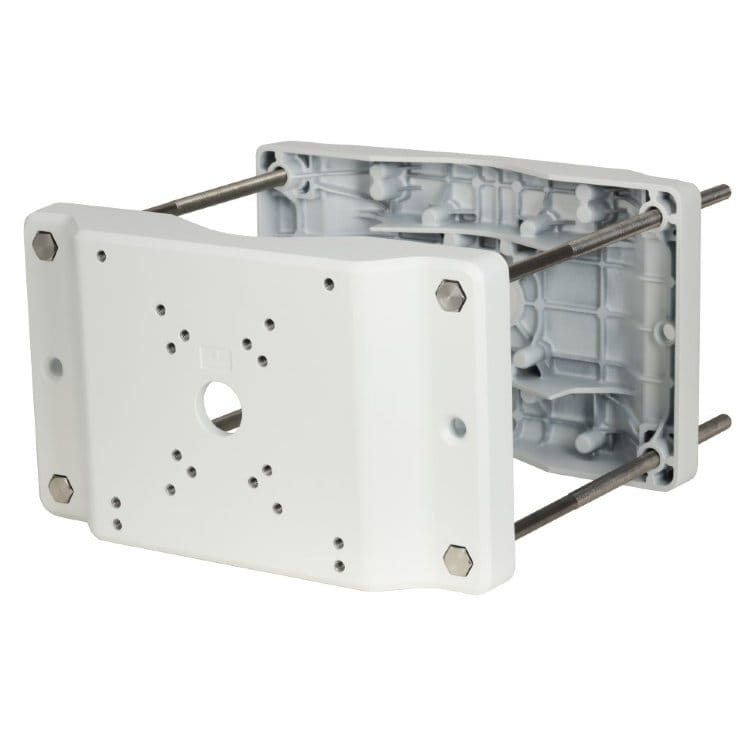

Heavy-duty Pole Mount Bracket

Camera Mount Series | DH-PFA153

www.dahuasecurity.com

Technical Specification
ModelDH-PFA153
General
MaterialAluminum & stainless
Dimension (WxHxD)359mmx60mmx213mm (14.14”x2.36”x8.39”)
Weight5kg (11.02lb)
Load Bearing 35kg (77.16lb)
Mast Diameterɸ150~ɸ300mm(ɸ5.91”~ɸ11.81")
Color White
Operating Temperature-40℃ ~+60℃(-40℉~+140℉)
Humidity0~90% RH
InstallationPole mount
Applicable ModelPlease see “Accessory Selector” on www.dahuasecurity.com


Ordering Information
TypePart NumberDescription
Camera Mount Series
DH-PFA153Heavy-duty pole mount bracket
DH-PFA153ACorrosion-proof heavy-duty pole mount bracket

Dimension(mm/inch)


Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Camera Mount Series | DH-PFA153

www.dahuasecurity.com

Application

Package Information
· Pole mount bracket body *2
· M12x360 bolt *4
· M8x35 screw *4
· Washer sleeve *4
· Spring washer *4
· ST3x8 screw *2
· M12 nut *8
· Cable tie *1
· Anti-slide sleeve*1
· S6.0 wrench *1
· User manual *1

SD10 series PTZ camera
outdoor surveillance box Hybrid pan & tilt camera
SD8A series PTZ camera
