PFA150-SG
Opis
Uchwyt antykorozyjny do montażu słupowego, stal ocynkowana SECC i stal nierdzewna SUS304, 130,4 mm × 170,0 mm × 45,0 mm...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
Camera Mount Series | DH-PFA150-SG
DH-PFA150-SG

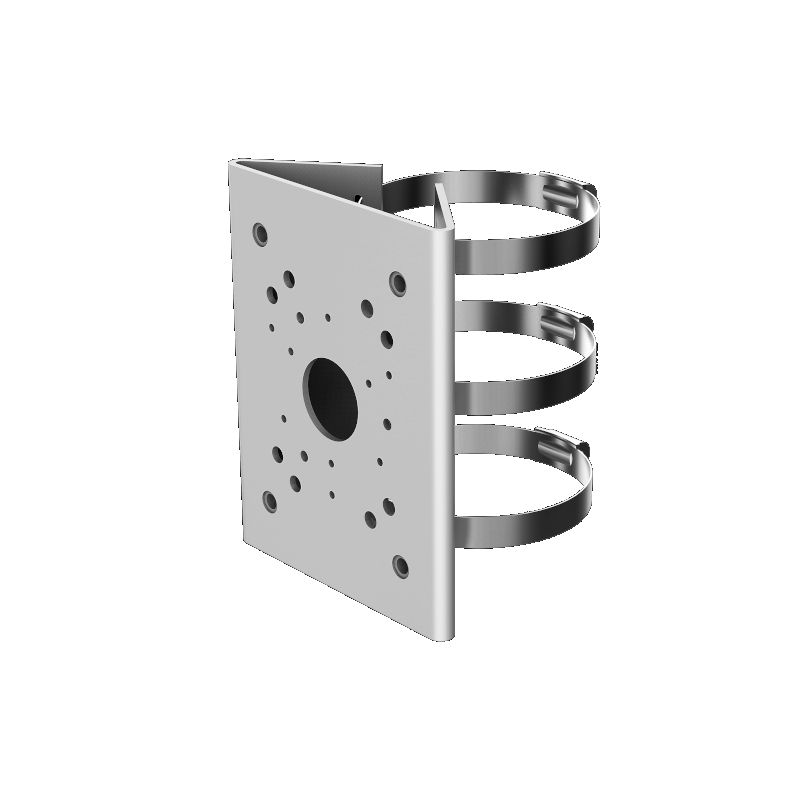

Pole Mount Bracket
· Material: SECC & SUS304
· Matched with particular cameras, beautiful and elegant designed
Technical Specification
Performance
Model
DH-PFA150-SG
Material
SECC & SUS304
Product Dimensions
130.4 mm x 170.0 mm x 45.0 mm
(5.13" x 6.69" x 1.77") (L x W x H)
Mast Diameter
Φ80–150 mm (Φ3.15"–5.91")
Net Weight
1.1 kg (2.43 lb)
Load Bearing
10.0 kg (22.05 lb)
Operating Temperature
–40°C to +60°C (–40°F to +140°F)
Operating Humidity
<90% (RH)
Color
Silver gray
Applicable Camera
Please see "Accessory Selection"
Ordering Information
Type
ModelDescription
Camera Mount
DH-PFA150-SGPole Mount Bracket
Dimensions (mm/inch)
Installation
www.dahuasecurity.com
Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Scene
Suitable for camera mounting with operating temperature from –40°C to
+60°C (–40°F to +140°F) and relative humidity less than 90%.
Easy I nstalla tionA esthetic D esig n M ade of Aluminum
