PFA143

Skrzynka zewnętrzna montażowa, IP66, IK10, 450 x 365 x 191 mm...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
Features
· All-aluminum shell design, IP66, IK10
· Satisfy the installation of power supply, switch, MNVR and protective devices
· Optional fans for high temperature heat dissipation
· Tamper alarm function with an optional alarm switch
· Aesthetic design, easy installation

Camera Mount Series | DH-PFA143
DH-PFA143

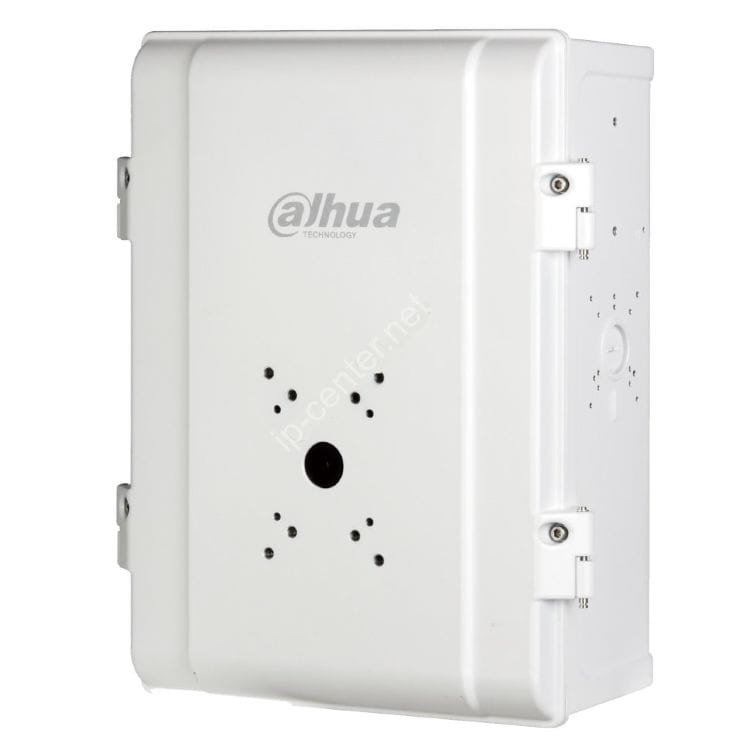

Outdoor Surveillance Box


Camera Mount Series | DH-PFA143

www.dahuasecurity.com

Technical Specification
Model DH-PFA143
General
MaterialAluminum & SECC
Dimension (WxHxD) 450mmx365mmx191mm (17.72”x14.37”x7.52”)
Weight 9kg (19.84lb)
Load Bearing (front)10kg (22.05lb)
Load Bearing (side) 6kg (13.23lb)
Load Bearing (inside) 5kg (11.02lb)
Color White
Operating Temperature -40℃ ~+60℃(-40℉~+140℉)
Humidity 0~90% RH
InstallationWall mount
Applicable ModelPlease see “Accessory Selector” on www.dahuasecurity.com


Ordering Information
TypePart NumberDescription
Camera Mount Series
DH-PFA143Outdoor surveillance box
PFA143Outdoor surveillance box

Dimension(mm/inch)


Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Camera Mount Series | DH-PFA143

www.dahuasecurity.com

Application

Package Information
· Outdoor surveillance box DH-PFA143 *1
· M8x80 expansion bolt *4
· M8x30 screw *4
· M6x10 bolt *8
· M4x10 screw *8
· M4x14 screw *4
· M4x8 screw *6
· M3x8 screw *2
· S3.0 wrench *1
· S5.0 wrench *1
· S6.0 wrench *1
· Water joint *5
· Sealing plug *2
· Sealing ring *1
· Assistant handle *1
· Terminal block *2
· Rail block *3
· User manual *1

Pole mountWall mount
