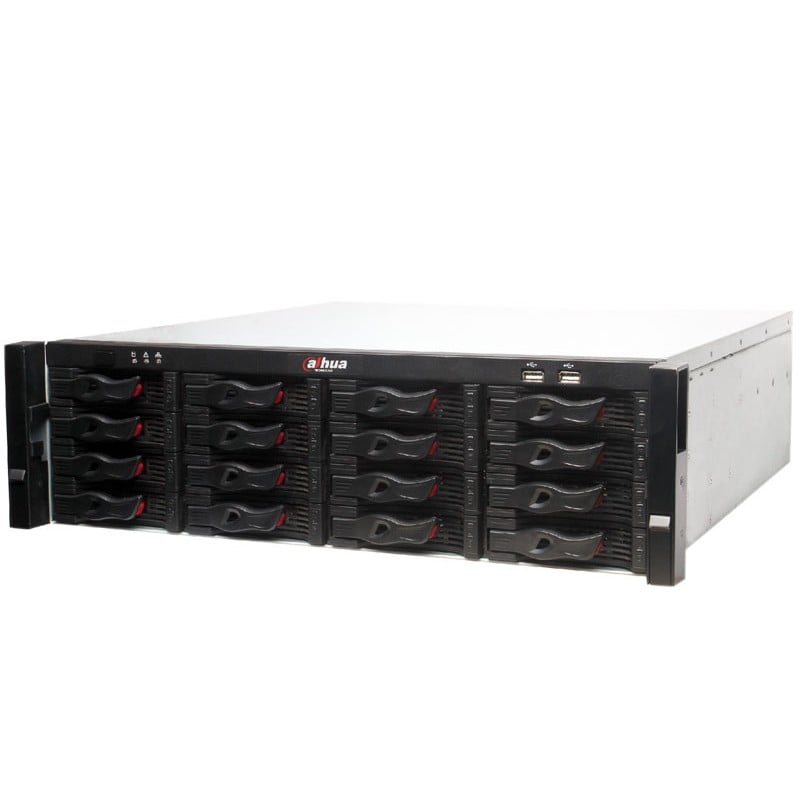

NVR616R-64-4KS2

Rejestrator IP z serii NVR ULTRA o przepustowości 384 Mb/s, max 12 Mpx, 64 kan. dekodowanie 1080P, H.265/H.264, 1 VGA/2 HDMI (6 HDMI opcjonalnie), 4 RJ45 (1000M), 4 USB (2USB3.0), 1/1kanał audio wej/wy, 16 HDD (6TB każdy), 1 eSATA, 16/8 alarm wej/wy, przekształcanie hemisferycze, Smart Track, IVS, RAID0/1/5/6/10/50/60, N+M, ANPR, termowizja, 1 Mini SAS, 2 Giga optical fiber interface, Zasilanie redundantne...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Ultra series | DHI-NVR616R-64/128-4KS2

System Overview
Dahua's next generation network video recorder offers unparalleled
recording technology for IP video surveillance applications. For
applications where details are critical for identification, this
enterprise-level NVR provides a powerful Intel processor with up to 4K
resolution. Additionally, the NVR features a mouse shortcut operation
menu, remote management and control, centre storage, edge storage,
and back up storage.
This NVR is ideal for a wide range of applications such as public safety,
transportation stations, government institutions, hotel resorts, shopping
malls, city centers, and financial institutions, where demand expansion
flexibility, high reliability and centralized storage management.
The NVR is compatible with numerous third-party devices making it
the perfect solution for surveillance systems with or without a video
management system (VMS). Its open architecture supports multi-user
access and is compatible with ONVIF 2.4, enabling interoperability when
combined with 4K cameras.
Functions
RAID 0/1/5/10
Offering a balance between storage performance, storage capacity,
and data integrity, the NVR features Fruitfull RAID 0/1/5/10 for faster and
safer recording.
Fisheye Dewarping
The NVR features multiple fisheye dewarping modes to make viewing
video easy whether its live or during playback.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a
secure, failover technique ensuring immediate backup. In the event of a
system failure, the slave instantly takes over the master ensuring no data
is lost.
4K Resolution
The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live
viewing and playback.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the NVR has the ability to detect
and analyze moving objects for improved video surveillance. The NVR
provides optional standard intelligence at the edge allowing detection
of multiple object behaviors such as abandoned or missing objects. IVS
also supports Tripwire analytics, allowing the camera to detect when
a pre-determined line has been crossed, People Counting, ideal for
business intelligence, and Facial Detection, for searching or identification
of individuals.
Heat Map
The NVR's Heat Map option highlights the areas with the highest
concentration of people. This information can then be exported into a
customized report to assist in business or forensic analysis.
Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the
NVR to receive a POS transaction via corresponding video. This feature
allows merchants to analyze specific transactions via the Fuzzy search
Algorithm.
Smart Tracking
The auto tracking PTZ feature automatically tracks a moving target
throughout the camera's field of view. This function is ideal for following
an object as it moves through airports, parking lots, city centers, or other
applications.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down,
and after the network recovered, the video will be transferred to NVR
and then recorded in it.
www.dahuasecurity.com

· Intel Processor
· Max 64/128 IP Camera Inputs
· Max 384Mbps Incoming Bandwidth
· Up to 12MP Resolution for Preview and Playback
· Supports RAID 0/1/5/10
· iSCSI and Mini SAS for Expanded Storage Space
· Smart Tracking and Intelligent Video
· Redundant Power
DHI-NVR616R-64/128-4KS2
64/128 Channel Ultra 4K H.265 Network Video Recorder

Ultra

IntrusionPeople Counting

Missing
Abandon Detection

Heat Map

TRACKING

COUNTING
Face Detection
Tripwire
Smart Tracking

H.265Series
inside
TM

www.dahuasecurity.com
Ultra Series | DHI-NVR616R-64/128-4KS2

Technical Specification
System
Main ProcessorIntel Quad-core Processor
Operating System
Embedded LINUX
Audio and Video
IP Camera Input64/128 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Display
Interface
2 HDMI (up to 3840 x 2160 , Different Source),
1 VGA
Resolution
3840 x 2160 , 1920 x 1080 , 1280 x 1024,
1280 x 720 , 1024 x 768
Multi-screen Display
1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion
detection, Recording
Recording
CompressionH.265/H.264/MJPEG
Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP,
720P etc.
Record Rate384Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record Mode
Manual, Schedule (Regular, MD (Motion Detection),
Alarm, IVS), Holiday, Stop
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30
sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm Out, Video Push, Email,
FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video
Loss and Tampering
Alarm input
16 Channel, Low Level Effective, Green Terminal
Interface
Relay Output
8 Channel, NO/NC Programmable, Green Terminal
Interface
Tracking Trigger Event
Zoom, Tracking, Recording, Preset, Snapshot, Alarm,
etc.
Playback and Backup
Playback
128 Mbps in Raid 5 Mode;
64 Mbps in single HDD Mode
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate
to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera,
Full Screen, Repeat, Shuffle, Backup Selection,
Digital Zoom
Backup ModeUSB Device/Network/eSATA Device
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and more


Network
Interface4 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port
4 Ethernet Ports Joint Working or 4 Independent
1000Mbps Ethernet Ports
PoEN/A
Network Function
HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, IP Search (Support Dahua IP camera,
DVR, NVS, etc.)
Optical Fiber Interface2 Giga Optical Fiber Interface
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant
Storage
Internal HDD16 SATA III Ports, Up to 8 TB capacity for each HDD
HDD Mode
Single, Raid 0/1/5/10(Enterprise-level HDDs are
recommended), Support Global HDD Hot-spare
eSATA
1 eSATA Port (Please contact technical engineer to
confirm the compatible device)
SAS1 Mini SAS Port, for Storage Expansion
Auxiliary Interface
Front CoverSupport Hot-swap
USB4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
RS2321 Port, for PC Communication and Keyboard
RS4851 Port, for PTZ Control
Electrical
Power SupplyAC100V ~ 240V, 50 ~ 60 Hz, Redundant
Power Consumption<51W (Without HDD)
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions
3U, 485mm x 512.9mm x 133.2mm (19.1" x 20.2"
x 5 .2")
Net Weight19.1kg (42.1 lb) (without HDD)
Gross Weight28.5kg (62.8 lb)
InstallationRack-mounted
Certifications
CEEN55022, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
ULUL 60950-1 and CAN/CSA C22.2 No.60950-1

Ultra Series | DHI-NVR616R-64/128-4KS2
Rev 001.001© 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice

Ordering Information
TypePart NumberDescription
64 Channel
NVR
DHI-NVR616R-64-
4KS2
64 Channel Ultra 4K H.265 Network
Video Recorder with Redundant Power
128 Channel
NVR
DHI-NVR616R-128-
4KS2
128 Channel Ultra 4K H.265 Network
Video Recorder with Redundant Power
www.dahuasecurity.com

Dimensions (mm)
