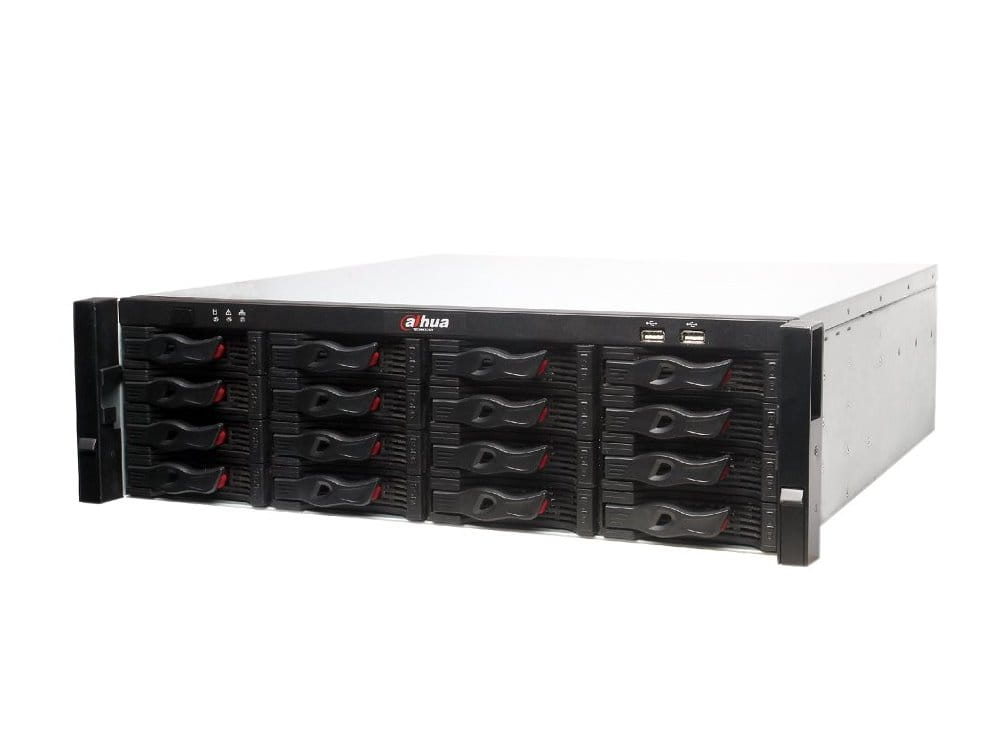

NVR616-64-4KS2

Rejestrator IP z serii NVR ULTRA o przepustowości 384 Mb/s, max 12 Mpx, 64 kan. dekodowanie 1080P, H.265, 1 VGA/2 HDMI (dodatkowe 4 opcja), 4 RJ45(1000M), 4 USB 2xUSB2.0 2x USB3.0 ,1/1kanał audio wej/wy, 16 HDD(8TB każdy), 16/8 alarm wej/wy, IVS...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DH-NVR616/616D/616R/616DR-64-4K


64 Channel Super Network Video Recorder


Features
• Max 64 channel IP cameras connection
• Max 384Mbps incoming bandwidth
• Up to 8Mp resolution preview& playback
• 1 VGA+2 HDMI
• Support 16 hot-swap HDDs
• Support RAID 0/1/5/6/10/50/60
• Support N+M hot standby
• Support iSCSI & Mini SAS to expand storage space
• Compatible with Dahua SDK and seamless integrated to other platforms
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,
Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
• ONVIF Version 2.4 conformance
• Redundant power supply module adopted (DH-NVR616R-64-4K&DH-NVR616DR-64-4K)
• Front LCD display (DH-NVR616D-64-4K& DH-NVR616DR-64-4K)



DH-NVR616/616D/616R/616DR-64-4K


Technical Specifications
Model DH-NVR616-64-
4K
DH-NVR616D-64-4
K
DH-NVR616R-64-4
K
DH-NVR616DR-64
-4K
System
Main Processor Intel Processors
Operating System LINUX
Motherboard Embedded Board (Support 7x24 operation)
Memory 4GB DDR3
Case Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide,
Patented pull-out rack design
Fan Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation
Interface Local GUI &WEB GUI
Video & Audio
Input 64ch@1080P/720P/D1
Transmission 64ch@1080P/720P/D1
Recording 64ch@1080P/720P/D1
Preview 8ch@1080P/16ch@720P/32ch@D1
Playback
128Mbps in Raid 5 mode
64Mbps in single HDD mode
Recording Resolution 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 720P, 960H, D1, CIF, QCIF, VGA
Audio 1ch in/1ch out, RCA
Recording
Recording Mode Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera
blank, Video loss), Alarm), Stop
Alarm Recording Video loss, Camera blank, Motion detection, External alarm, Video analysis
Backup Mode Network download/USB HDD/USB CD&DVD-RW/eSATA Device
Display
Interface 2 HDMI+1 VGA
Video Output HDMI 1+ HDMI 2+VGA
Multi-screen Display The 1st screen: 1/4/8/9/16/25/36
The 2nd screen: 1/4/8/9/16
Privacy Masking 4 customized zones for privacy masking for each area
Storage
Internal HDD 16 SATA III ports, up to 64TB
HDD Mode Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
HDD Installation Independent HDD rack, support hot swap
Network
Interface 4 RJ-45 ports (10/100/1000Mbps)
Ethernet Port 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports
Optical Fiber Interface 2 Giga Optical fiber interface
MD & Alarm
Motion Detection Zones: 396(22x18), Sensitivity: 1~100 (level 100 is the highest)


DH-NVR616/616D/616R/616DR-64-4K


Dimensions(mm)









Alarm Input 16ch, low level effective, green terminal interface
Relay Output 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
Auxiliary Interface
Front cover Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR)
USB 4 USB ports(3 USB2.0, 1 USB3.0)
eSATA 1 eSATA port
SAS 1 Mini SAS port
RS232 1 port, For PC communication& keyboard
RS485 1 port, For PTZ control
General
Power Supply
AC100V~240V, 50~60Hz AC100V~240V,50~60Hz,
Redundant
Power Consumption <40W (Without HDD)
Working Environment -10˚C~55˚C
Working Humidity 10%~90% ( non-condensation)
Dimension(WxDxH) 3U, 485mm(with ears)x531.9mmx133.2mm
Weight 17.45kg (without HDD)
Installation Rack-mounted


DH-NVR616/616D/616R/616DR-64-4K



Dahua Technology USA Inc.
23 Hubble, Irvine Spectrum,CA92618, USA
Tel: +001-949 679 7777
Fax: +001-949 679 5760
Email: support.usa@dahuatech.com
www.dahuatech.us

*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
