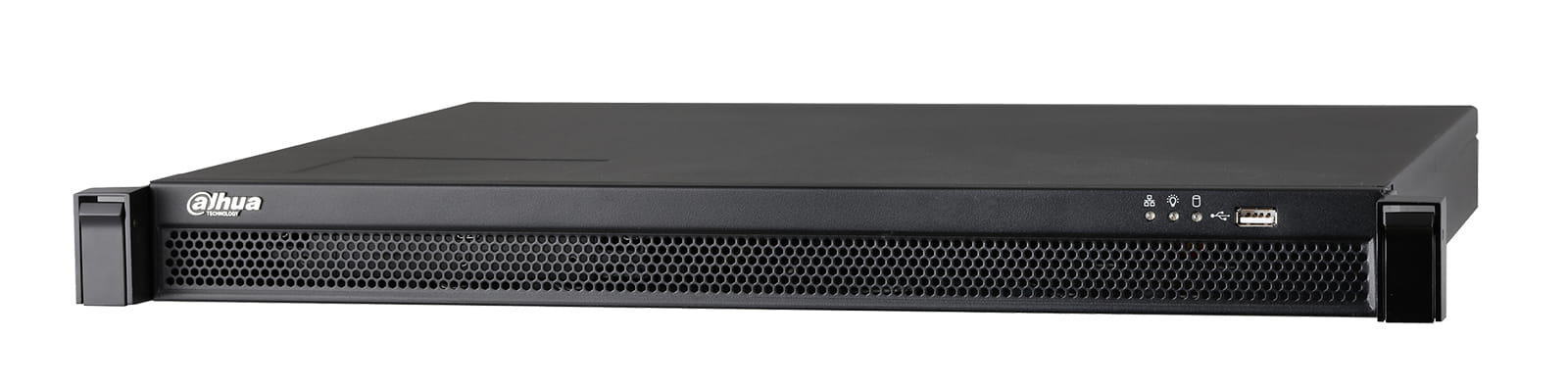

NVR5224-24P-4KS2

Rejestrator IP z serii NVR PRO o przepustowości 320 Mb/s, 24 kan., 2kan.@12 Mpx / 4kan.@8Mpx / 16kan.@1080p / 24kan.@720p, H.265+/H.265/H.264+/H.264, 2x SATA III do 8 TB, 2x USB (1x USB3.0, 1x USB2.0), 24xPoE, AC 100 V - 240 V...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Pro series | DHI-NVR5224-24P-4KS2

System Overview
Dahua's NVR5000-4KS2 network video recorder offers a excellent
performance and high recording quality for IP video surveillance
applications. For applications where details are critical for identification,
this professional NVR provides a powerful processor with up to 4K
resolution. Additionally, the NVR features a mouse shortcut operation
menu, remote management and control, centre storage, edge storage,
and back up storage.
Designed as a cost-effective, easy installation, this NVR is ideal for a
wide range of applications such as public safety, water conservancy,
transportation, city centers, education, and financial institutions.
The NVR is compatible with numerous third-party devices making it
the perfect solution for surveillance systems with or without a video
management system (VMS). Its open architecture supports multi-user
access and is compatible with ONVIF 2.4, enabling interoperability when
combined with 4K cameras.
Functions
Fisheye Dewarping
The NVR features multiple fisheye dewarping modes to make viewing
video easy whether its live or during playback.
4K Resolution
The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live
viewing and playback.
Easy4ip
You can monitor at anytime and anywhere with Easy4ip. There are 2
modes Easy4ip web client and mobile app. With this function, you can
manage your devices more conviently.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the NVR has the ability to detect
and analyze moving objects for improved video surveillance. The NVR
provides optional standard intelligence at the edge allowing detection
of multiple object behaviors such as abandoned or missing objects. IVS
also supports Tripwire analytics, allowing the camera to detect when
a pre-determined line has been crossed, People Counting, ideal for
business intelligence, and Face Detection, for searching or identification
of individuals.
Heat Map
The NVR's Heat Map option highlights the areas with the highest
concentration of people. This information can then be exported into a
customized report to assist in business or forensic analysis.
ANPR
Automatic Number Plate Recognition available for convenient entrance/
exit management. Support plate recognition, black/white list import/
export, add/delete B/W list number, search result from recorded video.
Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the
NVR to receive a POS transaction via corresponding video. This feature
allows merchants to analyze specific transactions via the Fuzzy search
Algorithm.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down,
and after the network recovered, the video will be transferred to NVR
and then recorded in it.
www.dahuasecurity.com

· Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
· Max 320Mbps Incoming Bandwidth
· Up to 12MP Resolution for Preview and Playback
· Support IPC UPnP, 24 PoE ports
· 3D intelligent positioning with Dahua PTZ camera
DHI-NVR5224-24P-4KS2
24Channel 1U 24PoE 4K&H.265 Pro Network Video Recorder

Pro

Intrusion
People Counting

Missing
Abandon Detection

Heat Map

COUNTING
Face Detection
Tripwire

H.265Series

www.dahuasecurity.com
Pro Series | DHI-NVR5224-24P-4KS2

Technical Specification
System
Main ProcessorQuad-core embedded processor
Operating System
Embedded LINUX
Audio and Video
IP Camera Input24 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Display
Interface1 HDMI (up to 3840 x 2160), 1 VGA
Resolution
3840 x 2160 , 1920 x 1080 , 1280 x 1024,
1280 x 720 , 1024 x 768
Multi-screen Display1/4/8/9/16/25
OSD
Camera title, Time, Video loss, Camera lock, Motion
detection, Recording
Recording
CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP,
720P, D1 etc.
Record Rate320Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record Mode
Manual, Schedule (Regular, MD(Motion Detection) ,
Alarm, IVS), Stop
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30
sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm Out, Video Push, Email,
Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video
Loss and Tampering
Alarm input
4 Channel, Low Level Effective, Green Terminal
Interface
Relay Output
2 Channel, NO/NC Programmable, Green Terminal
Interface
Playback and Backup
Sync Playback1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate
to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera,
Full Screen, Repeat, Shuffle, Backup Selection,
Digital Zoom
Backup ModeUSB Device/Network
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek,
and more


Network
Interface1 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port1 Independent 1000Mbps Ethernet Ports
PoE
24 ports (IEEE802.3af/at)
Max 25.5W for single port, 210W in total
Network Function
HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, IP Search (Support Dahua IP camera,
DVR, NVS, etc.)
Optical Fiber InterfaceN/A
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant
Storage
Internal HDD2 SATA III Ports, Up to 8 TB capacity for each HDD
HDD ModeSingle
eSATAN/A
SASN/A
Auxiliary Interface
USB2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
RS2321 Port, for PC Communication and Keyboard
RS485N/A
Electrical
Power SupplySingle, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption<16W (Without HDD)
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions
1U, 440mm x 419.96mm x 43.65mm ;
(17.3" x 16.5" x 1.7")
Net Weight4.5kg (9.9 lb) (without HDD)
Gross Weight6.45kg (14.2 lb)
InstallationRack-mounted
Certifications
CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2015
ULUL 60950-1 and CAN/CSA C22.2 No.60950-1

Pro Series | DHI-NVR5224-24P-4KS2
Rev 001.001© 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice

Ordering Information
TypePart NumberDescription
24 Channel
NVR
DHI-NVR5224-24P-
4KS2
24 Channel 1U 24PoE 4K&H.265 Pro
Network Video Recorder
Accessories N/A
www.dahuasecurity.com

Dimensions (mm)
