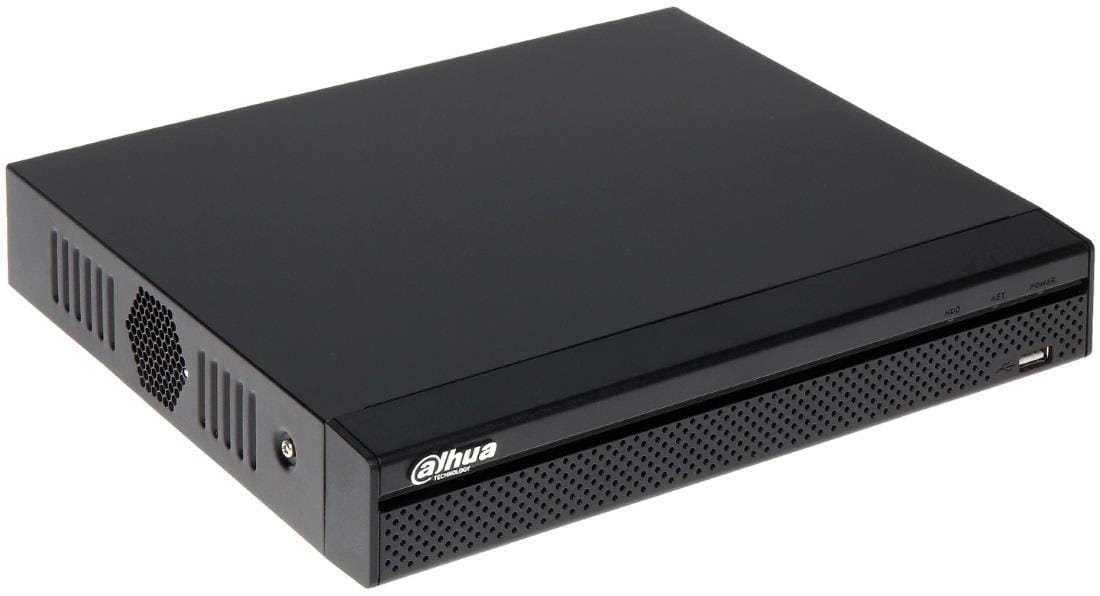

NVR4104HS-P-4KS2

Rejestrator IP z serii NVR LITE o przepustowości 80 Mb/s, max 4K, 2kan.@8Mpx, 4kan.@1080P, 1 VGA/1 HDMI, 4x PoE, 1 RJ45(100M), 2 USB2.0, 1/1kanał audio wej/wy, 1 HDD, P2P...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Lite series | DHI-NVR4104/4108HS-P-4KS2
System Overview
DR NVR KS R L NVR RR K
H A R R TR
L NVR MP F R

R K A R NVR R


D R NVR
R

TR NVR R R
R R R
VMS I R
R ONVIF R
R IP

Func݀ons
K R
TR NVR K HD

I V S O
W R IP R NVR R
R
TR NVR R
R R
IVS T R
R R P
C F D
R
S A
WR R S A R IP
R NVR R R PE R
I R R R NVR R R
ANR A N RR TR
V SD IP R R
R R NVR
R
E
Y R R E WR R

www.dahuasecurity.com

· H H
· M M I BR
· U MP R P P
· HDMI VGA
· S IPC UPP PE
· S ANR R R R
R R
DHI-NVR4104/4108HS-P-4KS2
CR C U PE K H L N V R

8Mp
Intrusion People CountingHeat Map
COUNTING

TripwireH.265

R
Lite Series | DHI-NVR4104/4108HS-P-4KS2
T S
S
Main ProcessorQuad-core embedded processor
Operating SystemEmbedded LINUX
D
Interface1 HDMI, 1 VGA
Resolution
3840x2160, 1920x1080, 1280x1024, 1280x720,
1024x768
Multi-screen Display
4CH: 1/4
8CH: 1/4/8/9
OSD
Camera title, Time, Video loss, Camera lock,
Motion detection, Recording
V D A
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP,
Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18),
Video Loss and Tampering
Alarm input N/A
Relay OutputN/A
P B
Playback
4CH: 1/4
8CH: 1/4/8
Search Mode
Time /Date, MD and Exact Search
(accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle,
Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
S
Internal HDD1 SATA III Port, Up to 6 TB capacity for each HDD
HDD ModeSingle
eSATAN/A
A I
USB2 USB Ports (2 USB2.0)
RS232N/A
RS485N/A
TR S
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, and more

Audio and Video
IP Camera Input4/8 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
R
CompressionH.265/H.264
Resolution
8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
etc.
Record Rate80Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record Mode
Manual, Schedule (Regular, Continuous), MD
(Video detection: Motion Detection, Tampering,
Video Loss), Stop
Record Interval
1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec
N
Interface1 RJ-45 Port (10/100Mbps)
Ethernet Port1 Independent 100Mbps Ethernet Port
PoE
4 ports (IEEE802.3at/af) (4Mbps is recommended
per channel)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,
SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
IP Search (Support Dahua IP camera, DVR, NVS,
etc.), Easy4ip
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4, CGI Conformant
E
Power SupplyDC48V/1.5A
Power Consumption
NVR: <7.5W (Without HDD)
PoE: Max 25.5W for single port, 50W in total
E
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
C
Dimensions
Compact 1U, 260mmx224.9mmx47.6mm
(10.2" x 8.9" x 1.9")
Net Weight0.8kg (1.76 lb) (without HDD)
Gross Weight1.6kg(3.53 lb)(without HDD)
C
CEEN55032, EN55024, EN50130-4, EN60950-1
FCCPart 15 Subpart B, ANSI C63.4-2014
ULUL60950-1+CAN/CSA C22.2 No.60950-1

L S | DHI-NVR4104/4108HS-P-4KS2
R DR A R D R R
O I
Type Part NumberD
4 Channel NVR
DHI-NVR4104HS-P-
4KS2
4 Channel Compact 1U 4PoE 4K&H.265
Lite Network Video Recorder
8 Channel NVR
DHI-NVR4108HS-P-
4KS2
8 Channel Compact 1U 4PoE 4K&H.265
Lite Network Video Recorder
Accessories N/A N/A
R
Dimensions (mm)
