LS460UCM-EF

Monitor do pracy 24h/7, 46" (16:9), rozdzielczość 1920x1080, jasność 500 cd/m2, kontrast 1200:1, kąt widzenia 178°/178°, wejścia: 1x VGA, 1x CVBS, 1x DVI-D, 1x HDMI, 1x RS232 (RJ45), 2x USB, 1x audio, 1x IR, wyjścia: 1x CVBS, 1x RS232 (RJ45), 2x HDMI, 1x VGA, 1x audio, wymiary 1022x576,6x107,3...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Standard Brightness Series | LS460UCM-EF

www.dahuasecurity.com
Features：
· Industrial level ADS LCD panel, suitable for extensive 24/7
continuous works
· Ultra-narrow 3.5mm bezel-to bezel design(2.3mm bezel
on the left and top sides and 1.2mm bezel on the right and
bottom sides)
· High contrast ratio and high brightness greatly enhance the
video layering, and present the details of the video
· High fidelity digital processing, brilliant and vivid video
· Built-in 3D COMB filter and 3D Noise Reduction
· Abundant interfaces HDMI, DVI, VGA, BNC, USB, support
video loop
· Built-in picture splicing function
· Infrared, RS232 dual mode, supporting remote PC control
· Professional thermal design to extend equipment lifespan
· Built-in power, low energy consumption, ultra-quiet
· Fast stack installation, professional project design,
supporting arc-shaped mounting
· Widely used in surveillance center, dispatching platform, safe
city, commercial display, etc.
LS460UCM-EF

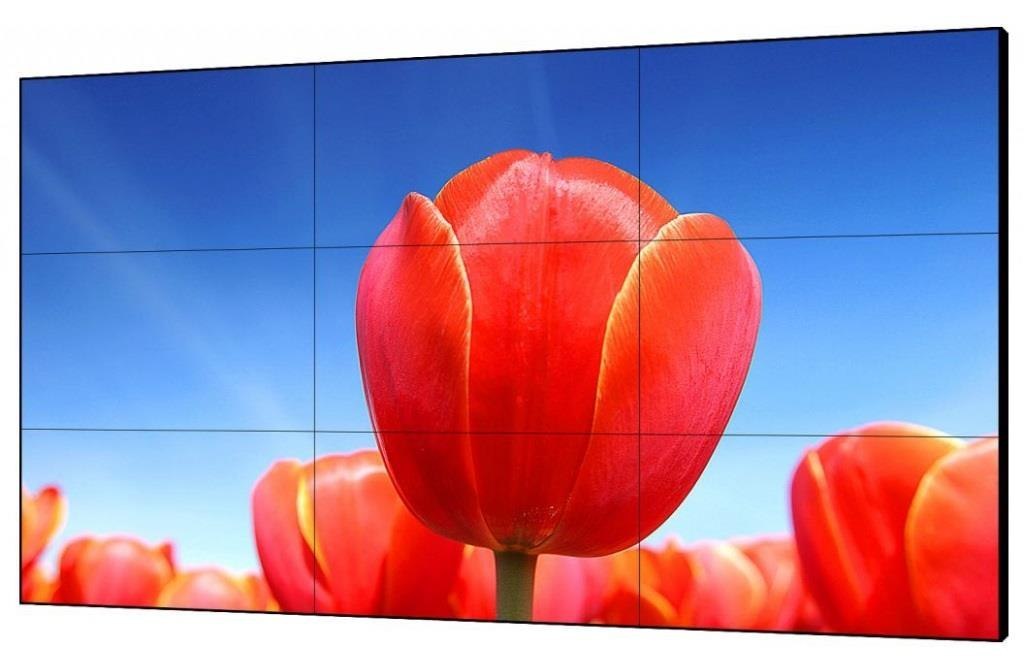

46’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm)

Technical Specification
Model
ModelLS460UCM-EF
System
Diagonal 46"(16:9)
LCD Technology ADS
Resolution 1920x1080 (FHD)
Bezel width2.3mm(U/L), 1.2mm(R/B)
BacklightDirect LED
Brightness/Luminance500 cd/m²
Contrast Ratio1200:1
Pixel Density48dpi
Viewing AngleH178°, V178°
Response time8ms
Display Color8bit(16.7M)
Color Temperature10,000K
MTBF50,000h
Signals
Input
CVBS(BNC)x1, VGA(D-Sub)x1,DVI-Dx1, HDMIx1, RS232x1,
USBx2, Audiox1, IRx1
OutputCVBS(BNC)x1, RS232x1, HDMIx2, VGAx1, Audiox1


General
Consumption (Standard)110W
Consumption (Standby)≤0.5W
Power SupplyAC100V～AC240V, 50/60 Hz
Installation ModeFloor-standing, wall-mounted
VESA600x400mm, M6
Control Mode
Infrared, RS232 dual mode, supporting remote PC
control
Gross Weight28kg(64.6Ib)
Net Weight22kg(48.4Ib)
Dimension (WxHxD)1022mmx576.6mmx107.3mm(40.2"x22.7"x4.2")
Package (WxHxD)1194mmx810mmx260mm(47"x31.9"x10.2")
Work Environment
Temperature0℃~+50℃
Humidity10%RH~80%RH

HDMI

1080p
Ultra-narrow

24h* 7
50000h


Standard Brightness Series | LS460UCM-EF

Dimensions(mm)
www.dahuasecurity.com

1022.0

171.0

30.0

620.0

30.0
75.8
30.0

365.0
30.0

576.6

654.0

442.0
36.8
40.0

107.3

26.0

67.3

deepth

600.0

111.8

400.0
deepth

60.3

335.0

173.0

140.5
U I N T : mm
