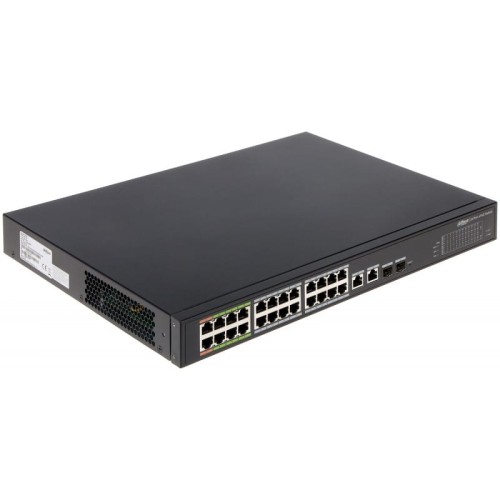

LR2226-24ET-360

Przełącznik 24-portowy ePoE Interfejsy • 2x 10/100/1000 Base-T • 2x 1000 Base-X (porty combo) • 24x 10/100 Base-T (zasilanie PoE) Protokoły PoE (IEEE802.3af, IEEE802.3at, Hi-PoE) Wymiary 440x300x44 mm Zasilanie AC 100 - 240 V...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DH-LR2226-24ET-360

www.dahuasecurity.com
Features
· Supports long distance PoE transmission up to 800m with
ePoE technology of Dahua
· Layer-two web managed ePoE switch
· Port 1-8 support three self-adaptive transmission modes
which are IEEE, E100 and E10
· Port 1-8 support both twisted-pair transmission and coaxial
cable transmission
· Support web management: port management, 802.1Q
VLAN, STP/RSTP, LACP, 802.1X, QoS
· Support PoE management, Green PoE, Legacy Support
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
DH-LR2226-24ET-360
24-Port PoE Switch with 8-Port ePoE

Technical Specification
ModelDH-LR2226-24ET-360
Ethernet Port
2*10/100/1000 Base-T
2*1000 Base-X (Combo ports)
24*10/100 Base-T (PoE power supply)
PoE Power Consumption
Port1 and port 2 support Hi-PoE 60W
Each power≤30W, Total≤360W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity8.8Gbps
Packet Forwarding Rate6.55Mpps
Packet Buffer Memory2.75Mb
Application Humidity10%~90%
PowerAC100-240V, 50/60Hz
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-10°C~55°C
Weight3.12kg
Dimension(WxDxH)440mm x300mm x44mm

Product Overview
DH-LR2226-24ET-360 is a 24-Port web managed ePoE switch, which is
able to realize PoE transmission over 800 meters Ethernet cable at the
speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides,
it supports PoE and PoC power supply technology, which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.

Transmission Performance:
ePoE Power Supply Specifications (CAT)
Cable (m)
Bandwidth
(Mbps)
PoE Load Capacity
(W)
Hi-PoE Load
Capacity (W)
Working Mode
10010025.553IEEE/E100
20010025.547E100
30010025.532E100
400102326E10
500102020E10
800101313E10
ePoE switch power supply voltage 53V
CAT6, max. DC resistance < 10Ω/100m
ePoE Power Supply Specifications (RG59 Coaxial Cable)
Cable (m)
Bandwidth
(Mbps)
PoE Load Capacity
(W)
Hi-PoE Load
Capacity (W)
Working Mode
10010025.552IEEE/E100
20010025.548E100
30010025.530E100
4001002023E100
500101616E10
800101010E10
10001088E10
ePoE switch power supply voltage 53V.
RG-59, max. DC resistance < 5Ω/100m.


Accessories
SFP ModuleDescription
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
EoC (Ethernet over Coax)Description
LR1002
1*10/100 Mbps Base-TX + 1*BNC
RG59 coaxial cable:
400m/100Mbps, 1000m/10Mbps

Service Characteristics
ModelDH-LR2226-24ET-360
System
Username / password: admin/User Define
IP Address :192.168.1.110/24
PoE Budget360W
MAC Table4K
VLAN802.1Q Standard VLAN
Spanning TreeSTP, RSTP
Port AggregationStatic link aggregation, LACP
MirroringSupport many-to-one port mirroring
DHCPSupport DHCP-Client
Long Distance ModeExtend the maximum distance from 100m to 800m
Flow Control
Support half-duplex based on back pressure type
control;
Support full duplex based on PAUSE frame
Security Features
Hardware supports IP+MAC binding based on port
Support IEEE802.1x port authentication
System Maintenance
one-key recovery of default
Support the updated packet upload
Support system logs
QoS
Support high and low priority, WRR
Support 802.1P, DSCP
Support priority according to protocol
Network Management
WEB(http and https protocol)
Support SNMP V1/V2C/V3
PoE Management
Support PoE power consumption, PoE on/off of IPC
configura-tion, power down when exceeding the
value of overload power
Support PoE event statics
Support Green PoE
Support Legacy Support
