LM28-S400
Opis
Monitor 28", jasność 250 cd/m2, kąt widzenia 178°/160°, rozdzielczość 4K, kontrast 1000:1, 1x VGA, 1x BNC, 1x DP 1.2a, 2x HDMI 2.0, 2x USB, 1x audio...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
4K Series | LM28-S400
www.dahuasecurity.com
Features：
· 4K Ultra-HD resolution
· Industrial level LCD panel, suitable for continuous 24/7
operation
· Built-in 3D COMB filter and 3D Noise Reduction
· 5ms fast response timefor no motion blur, judder or
ghosting
· 1.07B colors, for a realistic and immersive visual experience
· High fidelity digital processing for a brilliant and vivid video
· Using tamper-proof metal housing
· Professional thermal design to extend equipment lifespan
· Built-in power, low energy consumption, ultra-quiet
· Wide array of connectivity options HDMI, DP, VGA, BNC,
USB, Audio
LM28-S400

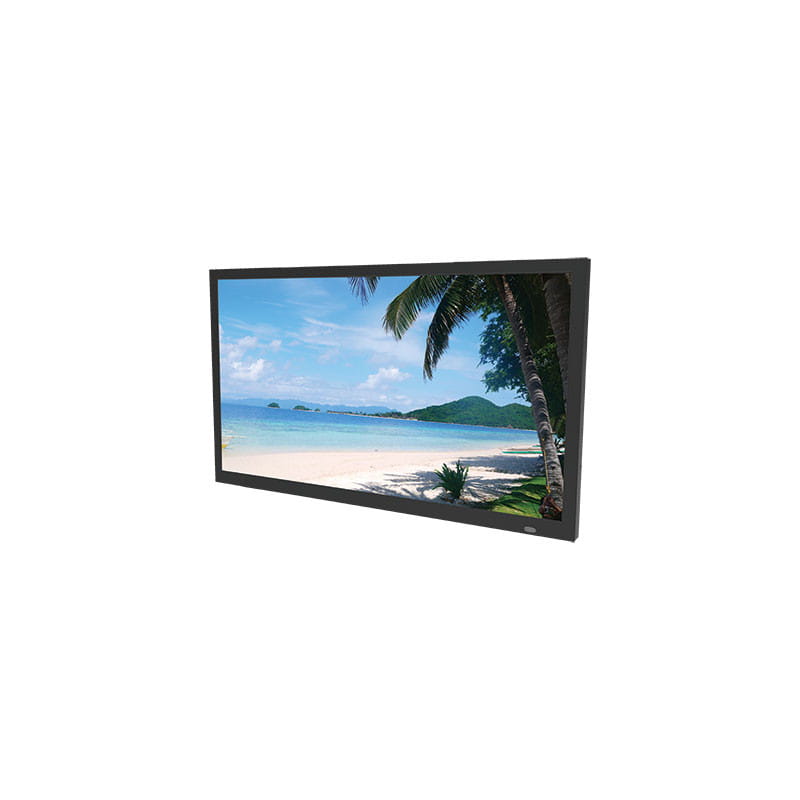

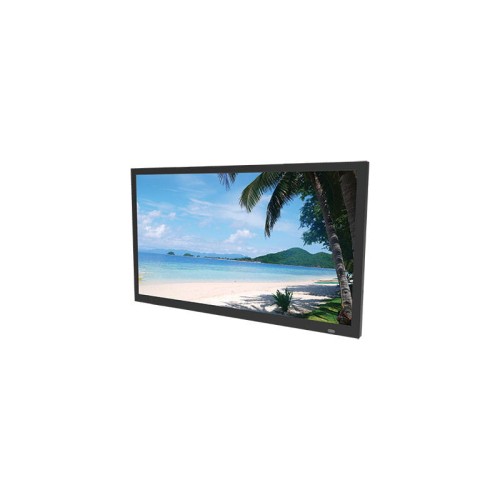

28’’ UHD LED Monitor
Technical Specification
Model
ModelLM28-S400
Display
Screen Size28"
Aspect Ratio16:9
Resolution 3840x2160 (UHD)
Backlight LED
Brightness/Luminance300cd/㎡
Contrast 1000:1
Display Color1.07B(10bit)
Viewing Angle(H/V)178°(H)/178°(V)
Response time5ms
Refresh Rate60Hz
Signals
Input
VGA(D-Sub)x1, BNCx1, DP 1.2ax1, HDMI 2.0x2, USB
multimediax1, Audiox1
Output
BNCx1
Speaker5Wx2
General
Power SupplyAC100~240V (+/-10%), 50/60 Hz
Consumption (Standard) 40W
Consumption (Standby) ≤1W
TypeInternal
Net Weight6.65kg (14.7lb)
Gross Weight 8kg (17.6lb)
Bezel Width19.1mm(U), 19.0mm(R/L), 27.2mm(B)
VESA100x100mm (3.9"x3.9")
Dimension without standard
(WxHxD)
662x390.5x50mm (26.1"x15.4"x2.0")
Package(WxHxD)755x490x129mm (29.7"x19.3"x5.1")
Work Environment
Temperature0℃~40℃ (32°F~104°F)
Humidity10%~85%
Accessory
StandardHDMI cable, power cable, hanging bracket
OptionalPedestal
Certifications
CertificationsCE/FCC
24h* 7
Metal
housing
170° / 160°
4K Series | LM28-S400
Dimensions(mm)
www.dahuasecurity.com
