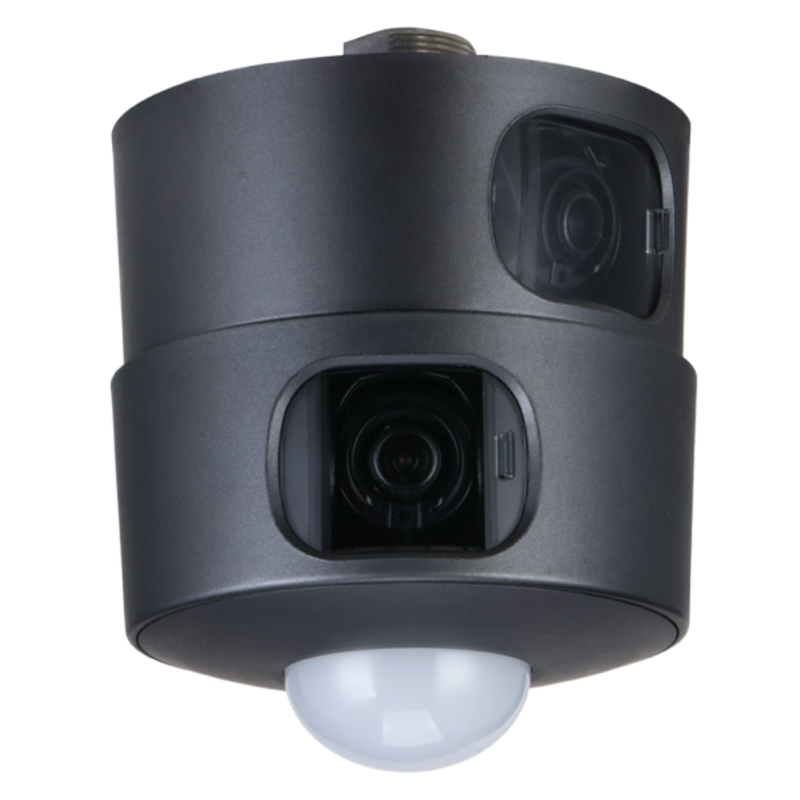

ITC314-PH3A-TF2-PON

Kamera IP do identyfikacji tablic z serii Ultra LPR , Kamera do monitorowania 6 miejsc parkingowych z obiektywem 2,8mm. Wbudowany algorym głębokiego uczenia pozwala skutecznie monitorować stan miejsca parkingowego w czasie rzeczywistym (skuteczność ≥99.5%). Zapewnia przy tym rozpoznawanie tablic rejestracyjnych (skuteczność ≥99%) i wykrywanie przekroczenia linii. 7 kolorów podświetlenia informuje o stanie danego miejsca parkingowego. Port RS-485 do podłączenia wskaźnika świetlnego - jednen dla jednego miejsca. Kodowanie H.264, H.265 i MJPEG. Możliwość łączenia w kaskadzie do 6 urządzeń, zasilanie pierwszego z zasilacza DC 48V....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.dahuasecurity.com
DHI-ITC314-PH3A-T Series
Smart Video Parking Detector

· Real-time detection of 6 parking spots. Detection rate of parking spot
status: ≥99.5%
· 7 indicator colors are available to display the parking spot status
· RS-485 port is designed to connect to the indicator light. One indicator
light for one parking spot
· Support H.264, H.265, and MJPEG to meet encoding requirements in
different bandwidths and storage environments. H.265 encoding allows
high compression ratio and ultra-low bit rate transmission
· Supports cascading power supply through network. Standard 48V
DC power supply. A maximum of 6 cascading devices provides ease of
installation
Parking Spot Detector |DHI-ITC314-PH3A-T Series
System Overview
The parking spot detector can monitor 6 parking spots in real time,
identify vehicles and license plates, and display the parking spot status
with different indicator colors (7 colors can be configured).
Functions
Real-time monitoring of parking spot status
Built-in deep learning algorithm helps monitoring the parking spot
status in real-time. It can also recognize license plate, and detect
behavior of crossing parking line.

Seven-color indicator
Integrated seven-color indicator helps display different statuses of the
parking spot.

Power supply cascading through network
Supports cascading power supply through network. Standard 48V DC
power supply. A maximum of 6 cascading devices provides ease of
installation.

Wide dynamic range
Supports true WDR, capable of capturing clear details even in strong
contrast conditions to ensure detection accuracy, ideal for parking
buildings and indoor parking lots.
Scene
It is applicable to parking buildings and indoor parking lots.

Technical Specification
Basic
Image Sensor1/3'' CMOS
Detected Parking Spots
6
Parking Spot Indicator
1 indicator light. 7 colors are available: Red, yellow, blue,
green, cyan, white, pink
Electronic Shutter Speed
1/3 s–1/10000 s (manual/auto)
Image Resolution
2304 x 1296 (OSD black strip excluded)
Video Resolution
2MP (1920 x 1080)
Day/Night
Switch day/night mode according to brightness
Noise Reduction
3DNR
WDR
98 dB
White Balance
Auto
Video Compression
H.264, H.265, MJPEG
Picture Encoding Format
JPEG
Video Bit Rate
H.264: 885kb/s–7078kb/s
H.265: 885kb/s–7078kb/s
MJPEG: 2654kb/s–21234kb/s
Video Frame Rate
Main stream (1920 x 1080@20fps), sub stream (704 x
576@20fps)
Edge Enhancement
Yes
Exposure Mode
Full auto, customized auto, customized

ANPR
WDR
H.264H.265


Installation

Screw
Hole of mounting tray
Mounting tray

Dimensions (mm[inch])

M33

19.5
[0.77]

153.3
[6.04]

120.3 [4.73]

33.0 [1.30]

26.0 [1.02]

120.3 [4.73]

Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Parking Spot Detector |DHI-ITC314-PH3A-T Series

Ordering Information
TypeModelDescription
Parking Spot
Detector
DHI-ITC314-PH3A-
TF2-PON
Detection of 6 parking spots; 2.8 mm
lens
DHI-ITC314-PH3A-
TF3-PON
Detection of 6 parking spots; 3.6 mm
lens

Function
Security Mode
Authorized username and password, MAC address
binding, HTTPS encryption, and network access control
Shutter ModeSingle shutter
OSD Overlay
Time, location, parking spot number, parking spot status,
and plate number
Alarm EventIllegal access, safety anomaly, and more
Auto RegistrationYes
Image Tampering
Prevention
Yes. Watermark and verification are available for videos
and pictures
Intelligence
Vehicle Recognition
Supports vehicle detection, license plate recognition, and
detection of crossing parking line
Parking Spot Status
Detection
Yes. <5 s
Port
RS-4851
Network2 100M Ethernet ports (RJ-45)
General
Power Supply12V DC–48V DC
Power Consumption<8.5W
Operating Temperature–30°C to +60°C (–22°F to +140°F)
Operating Humidity10%–90% (no condensation)
Protection GradeIP50
Dimensions
Ø120.3 mm x 153.3 mm
(Ø4.74'' x 6.04'') (max diameter x height)
Net Weight0.7 kg (1.54 lb)
Gross Weight0.8 kg (1.76 lb)
InstallationCeiling mounting tray installation
Lens2.8 mm, 3.6 mm
