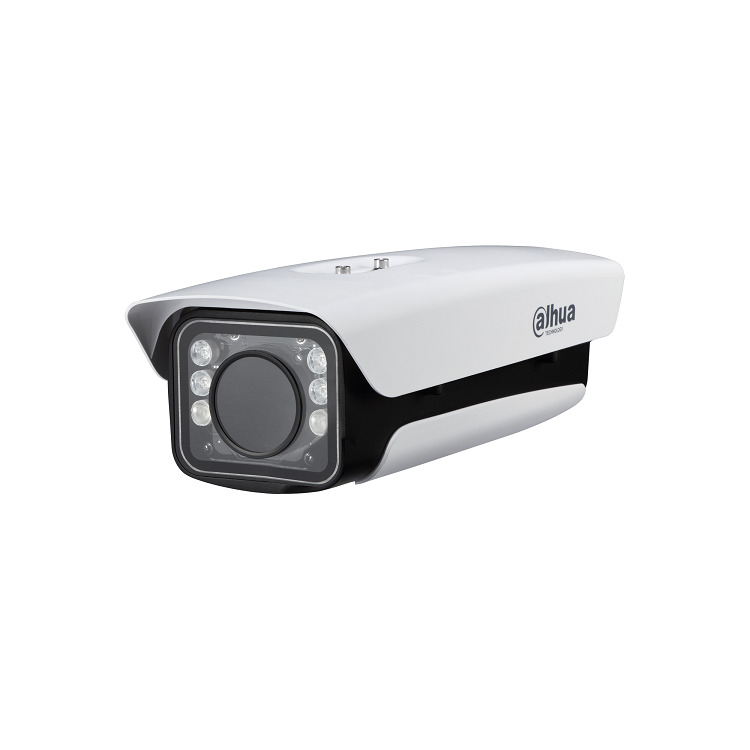

ITC237-PU1B-IR

Dostępność: 0
Cena: 3 411,00 zł 3411.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: DAHUA
Kod produktu: ITC237-PU1B-IR

Opis

Kamera IP do identyfikacji tablic z serii ULTRA LPR, 1/2,8" 2 Mpx CMOS, obiektyw motozoom 5 - 50 mm, True WDR, 4 IR LED, zasięg detekcji 3 - 8 m, Vmax. pojazdu < 60 km/h, 1 pas ruchu, funkcje: biała/czarna lista, przekroczenie bariery, detekcja pętli indukcyjnej, rejestracja na karcie pamięci micro SD, CGI, przeszukiwanie archiwum z pioziomu przeglądarki internetowej...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

Series P67 Temperature IR 500m
8KProte V
Lightning
Wiper IK10 IVS Auto Tracking
WDR Access ANPR | ITC237-PU1B-I R-BG
ITC237-PU1B-IR-BG
2 Megapixel Full HD WDR Access ANPR Camera
System Overview
Featuring a True Day/Night, 2-megapixel resolution LPR camera in
low speed environment, such as parking, access control and urban
street. It supports video detec tion and recognizes the plate in low
speed less than 80KMH with embedded LPR algorithm. White list
database inside the camera control the barrier opened. This model
provides an all-in-one solution for capturing long distance license
plate with long focus lens and strong IR lighting in outdoor
applications. True WDR for environment with direct sunlight or
glare,even head light on when the vehicle approach. .
Functions
Embedded license plate recogni tion algorithm
With built-in intelligent video analytics, the camera has the ability to
detect and recognize moving vehicle's plate number in low speed up
to 120kmh. No matter for the approaching or departure vehicle,
access ANPR camera will take a snapshot for plate cutout, vehicle
overview picture and also record the surveillance video.
Embedded White list
Embeded with white list inside the camera, control the barrier
opened by the camera relayout if the plate number recognized is in
the white list.Support to import batch list as much as 10000 records.
Wid e Dynamic Range
Embeded with industry leading wi de dyn amic range (WDR) technology,
vivi d plate picutures are achieved even in the most intense contrast
lighting conditions. For applications with both bright and low lighting
conditions that chan ge quickl y or the he ad light of vehicle is on at night,
True WDR (140dB) optimizes both the bright and dark areas of a scene at
the same time to provi de us able video of plate.
Multipl e Detecti on
The camera supports loop and video detection, it is more s table when the
system is used for controlling the barrier or counting the vehicle number
in the access control, also even the loop detection is accident, video
detection will be instead automatically.
IVS
The camera supports intelligent functions as Tripwire, Intrusion, Object
Abandoned/Missing, Face Detection, People Counting, Heat Map,
Tampering and LPR.
www.dahuasecurity.com
·Embedded with LPR algorithm inside the camera.
·Support plate cutout, overview picture snapshot and
video recording
·Embedded with White list database,control the barrier
·Powerful 2.7-50mm manual lens and IR light, ideal for
long distance ANPR up to 50m
·Wide working temparature, IP67 and superior
performance for outdoor applications·
True WDR technology


WDR Access ANPR | ITC237-PU1B-I R-BG
Technical Specifica tion
www.dahuasecurity.com
DH -PFB303W
Wall mount
Camera
Image Sensor 1/1. 8” 2Megapixel Starvis R CMOS
Effective Pixels 1920(H)x1080 (V)
Scanning System Progressive
Minimum Illumination 0.0027Lux/F1.6 (color);0Lux/F1.6 (IR on )
Electronic Shutter Speed 1/50~1/10000
IR Distance smart, up to 50m
Sensor Focus Smart focus

Lens
Lens Type Manual/Auto Iris(DC)
Mount Type CS
Focal Length 2.7-50mm
Max Aperture F1.6
Angle of View H: 92˚~ 5.6 ˚ V:37.5 ˚ ~4.2 ˚
Focus Control Manual
Close Focus Distance
4~40m for license plate
(Different height required,
>10m long range recommendation)
Focus Width Range 1~2 lanes width
Intelligence
LPR function Embedded with lpr engine in the camera
Detection model Loop or video detection
Snapshot Overview and cutout of plate for picture
OSD overlay Tim e, plate number
White list 10000 records database inside the camera
Barrier control 2 ch relay out to control the barrier
Video
Compression H.265/H.264M/H.264H/H.264B /MJPEG/MPEG4
Resolution 1080P(1920x1080)
Frame Rate 1080P(1 ~ 25 /30fps)
Bit Rate Control CBR VBR
Bit Rate 32 ~ 16384 Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC,HLC,WDR(1 40db)
Dual Stream Support, Main stream and sub stream
White Balance Au to/Manual
Gain Control Au to/Manual
Noise Reduction 3D
Network
Ethernet RJ-45 (100/10 00Base-T)
Proto col IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS
Interoperability CGI, Onvif , SDK
Max. User Access 20
Edge Storage
Micro SD, Max 128GB Status Display Local PC
for Instant Recording
Web Viewer IE8,IE9,IE10,IE11, Chrome V33, V41
Management
Software
DSS , PMS, EMS
Certifications
Certifications
CE
FCC
EIS, Defog, ROIOther functions

WDR Access ANPR | ITC237-PU1B-I R-BG
Accessories
PFA162
House Bracket
1.2m Pole
Wall mount:
Pole mount
Environmental
PFB604W
Wall mount
Ingress Protection &
Vandal Resistance
Dimensions (mm/inch)
Rev 001.001 © 2016 Dahua . All rights reserved.
®
www.dahuasecurity.com

Interface
Video Interface BNC(1.0Vp -p /75Ω), PAL/NTSC
Audio Interface Input/Output 2 Input / 1 Output
12VDC socket Optional
Alarm 2/2In/Out
Eelectrical
Power Supply POE +(802.3at )
Power Consumption 17 W
Environmental
Operating Conditions Temperature -30°C~+60°C, Less than 95% RH
Ingress Protection &
Vandal Resistance
IP6 7
Construction
Dimensions 447 mm x240mm x233mm
Net Weight 4.1 kg with packaging
