ITC215-PW4I-IRLZF27135

Kamera IP do identyfikacji tablic z serii ULTRA LPR, 1/2,8" 2 Mpx CMOS, obiektyw motozoom 2,7 - 13,5 mm, WDR (120 dB), 6 IR LED, zasięg detekcji 3 - 8 m, Vmax. pojazdu < 40 km/h, 1 pas ruchu, funkcje inteligentne: LPR, rozmiar pojazdu, kolor, model...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

AI Access ANPR | ITC215-PW4I-LZF27135

Overview
The 2-megapixel CMOS full HD AI access ANPR camera with the features
as high color restoration, low illuminance and build-in white light, can
be used in parking and access control environment. It can detect the
vehicles from the video(>99% capture rate without loop), recognize the
plate in low speed less than 40kmh and structure the vehicle data with
the embedded deep learning algorithm. Besides, with whitelist inside,
this camera can control the barrier open by itself.
www.dahuasecurity.com
· 1/2.8 inch 2Megapixel Progressive scan CMOS
· WDR, Day/Night(ICR), 3DNR,BLC, HLC
· H.265& H.264 dual-stream encoding
· Micro SD memory
· Powerful 2.7-13.5mm motorized lens and white light, ideal
for monitor ANPR distance 3-8m
· IP67, and superior performance for outdoor applications
· Embedded with LPR algorithm inside the camera
· Vehicle data structuring: license plate recognition, vehicle
size, vehicle color detection and etc.
DHI-ITC215-PW4I-LZF27135
2 Megapixel Full HD AI Access ANPR Camera

Function

High vehicle capture rate
With build-in vehicle deep learning algorithm, the camera can achieve
very high vehicle capture rate (≥99% for vehicle front face) from the
video in day and night. As the algorithm is based on vehicle model, the
camera can also capture the vehicle with dirty plate and even without
plate when the vehicle approaches or leaves. It is recommended to use
the camera to capture the vehicle front face and within 40kmh.

World-wide license plate recognition
The camera can provide the high performance license plate recognition
for world-wide. The majority countries and areas in Europe, South
America, Mid and South Asia, and etc., are supported. The AI ANPR
camera will provide a cutout snapshot of plate, the vehicle overview
image and also record the surveillance video.

Metadata
With the leading deep learning algorithm, the camera can provide the
structuring data from the vehicles, including vehicle direction, vehicle
size and vehicle color detection (in daytime). These data can also be
overlay on the vehicle images.

Embedded White List
Embedded with whitelist inside the camera, the camera can control the
barrier opened by relay out port if the plate number recognized is in
the whitelist. Support to import the list with a batch as much as 10000
records.

Excellent image quality
Embedded with leading image processing and wide dynamic range
(WDR) technology, clear image of vehicle and plate detail can be
achieved even in the night and most intense contrast lighting conditions.
With True WDR (120Db), the camera can prevent the impact of head
light when the vehicles approach in night (The camera installation height
should between 1.2m~2m).

Adequate physical interface
The device supports external one channel HDCVI video stream input,
which can connect to an extra camera for video surveillance on the
entrance or behind the barrier.
3 ports to control the barrier and 3 port for the alarm input, which can
support traditional trigger methods like loop detector.


AI Access ANPR | ITC215-PW4I-LZF27135

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8 inch 2 Megapixel CMOS
Effective Pixels
2MP, 1920(H) x 1080(V)
Scanning System
Progressive
Minimum Illumination
0. 005Lux/F1.3
Electronic Shutter Speed
1/50~1/10000
White Light Distance
Up to 12M
White light LEDs
6
Lens
Lens TypeMotorized/ Auto Iris(DC)
Mount TypeBoard-in Type
Focal Length2.7mm~13.5mm
Max ApertureF1.3
Angle of ViewH: 119˚~ 32˚ V:65 ˚ ~18˚
Focus controlAuto
ANPR Distance3-8M


Intelligence
LPR FunctionEmbedded with Deep learning LPR engine
Vehicle Detection
Supports vehicle video detection with high
detection rate; supports vehicle direction detection
Vehicle data structuring
license plate recognition, vehicle size, vehicle color
detection and etc.
Vehicle size detection
Supports 11 vehicle sizes detection:large bus, heavy
truck, medium truck, sedan, minivan, light truck,
SUV, MPV, medium bus, pick-up and minicar.
Vehicle color detection
Supports 11 colors detection(daytime):white, black,
blue, red, yellow, green, pinkish purple, gray, brown,
orange and silver.
Detection modelSupports Video detection or loop detection
SnapshotOverview and cutout of plate for picture
OSD overlayTime, place,plate number, etc.
White list10000 records database inside the camera
Barrier controlRelay out to control the barrier

Network
EthernetRJ-45 (100/1000Base-T)
InteroperabilityCGI, SDK, Onvif
Max. User Access20
Web ViewerIE8,IE9,IE10,IE11,Chrome V33, V41
ProtocolIPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS
Edge Storage
Micro SD, Max 64GB Status Display Local PC for
Instant Recording
Management SoftwarePMS

Certifications
Certifications
CE
FCC

Video
CompressionH.265/H.264M/H.264H/H.264B
Resolution1080P(1920x1080) / 720P(1280x720) / D1(704x576)
Frame Rate
Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: 720P/ D1 (1 ~ 25/30fps)
Bit Rate ControlCBR, VBR
Bit Rate32 ~ 16384 Kbps
Dual StreamSupport, Main stream and sub stream
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D

Interface
Audio Interface1 Input/1 Output
RS4852
Alarm3/3 channel In/Out

AI Access ANPR | ITC215-PW4I-LZF27135

Ordering Information
TypePart NumberDescription
2MP
camera(no
bracket)
DHI-ITC215-PW4I-
LZF27135(without
bracket)
2 Megapixel Full HD AI Access ANPR Cam-

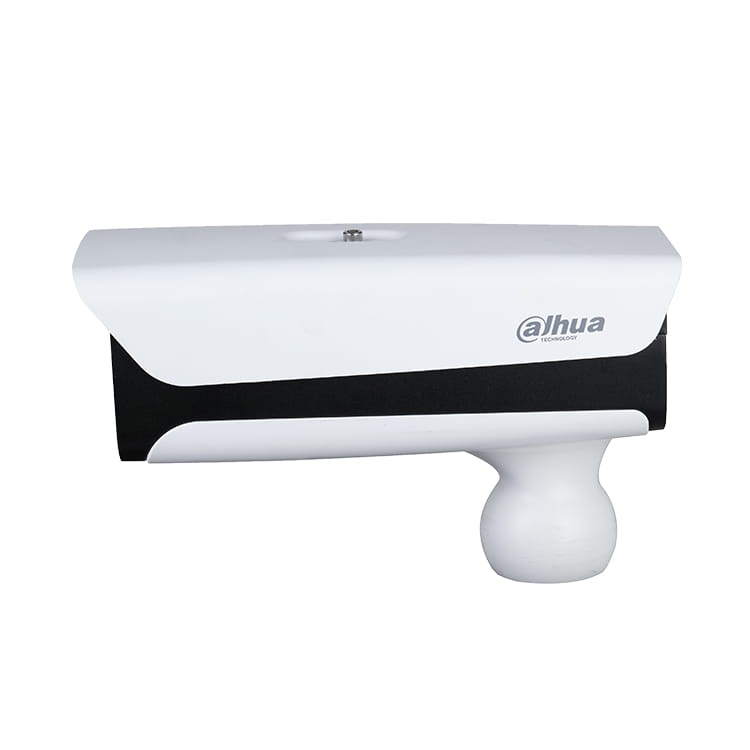

era without bracket
ITC215-PW4I-
LZF27135(without
bracket)
2MP
camera(with
bracket)
DHI-ITC215-PW4I-
LZF27135
2 Megapixel Full HD AI Access ANPR Cam-

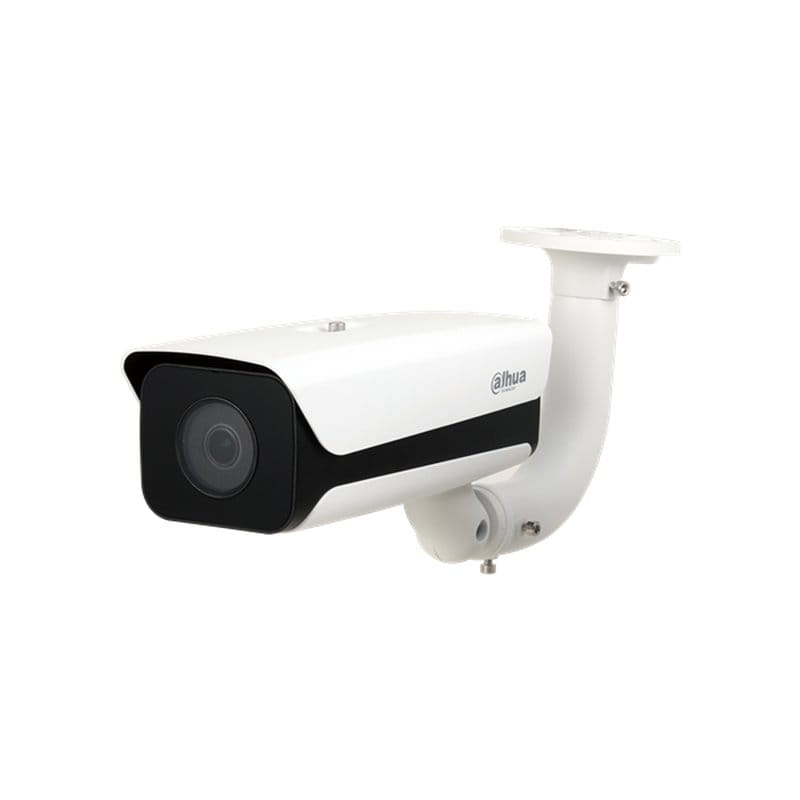

era with bracket
ITC215-PW4I-
LZF27135
www.dahuasecurity.com

Dimensions without Bracket(mm/inch)

Environmental
Operating Conditions-30°C~+65°C, Less than 90% RH
Ingress ProtectionIP67
Construction
Dimensions(no bracket)297mm x 124mmx 108mm
Dimension(with bracket)482mm x 124mmx 196mm
Net Weight1.9kg(no bracket)/3.3kg(with bracket)

Eelectrical
Power SupplyDC12V, PoE +(802.3at)
Dimensions with Bracket(mm/inch)
